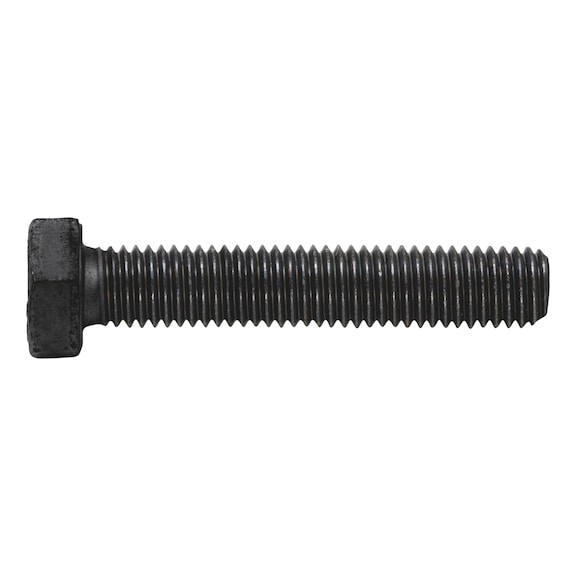

Hexagon Bolt M5x45 | Steel 8.8 | Zinc Nickel Plated Black | @Pack of 25 | by Wurth
Hexagon Bolt M5x45 made from high-strength steel 8.8 with a zinc nickel plated black finish, offering corrosion resistance for up to 480 hours. Perfect for mechanical assemblies and automotive applications, this bolt ensures secure fastening in harsh environments. Ideal for construction and industrial equipment, it meets ISO 4017 standards and is RoHS-compliant.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt M5x45 | Steel 8.8 | Zinc Nickel Plated Black | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 41476545
Alternatively Known As: Hex bolt M5x45, Zinc nickel plated hex bolt, ISO 4017 hex head bolt, Metric hex bolt 8.8, Corrosion resistant hex bolt

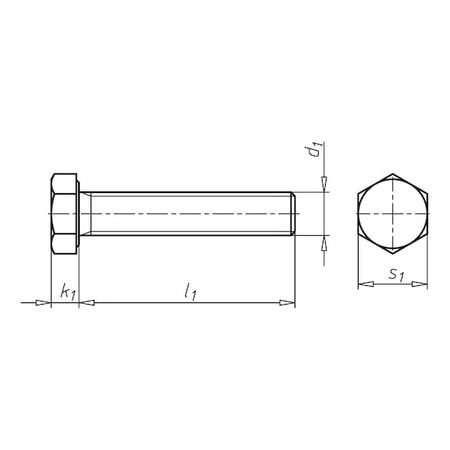

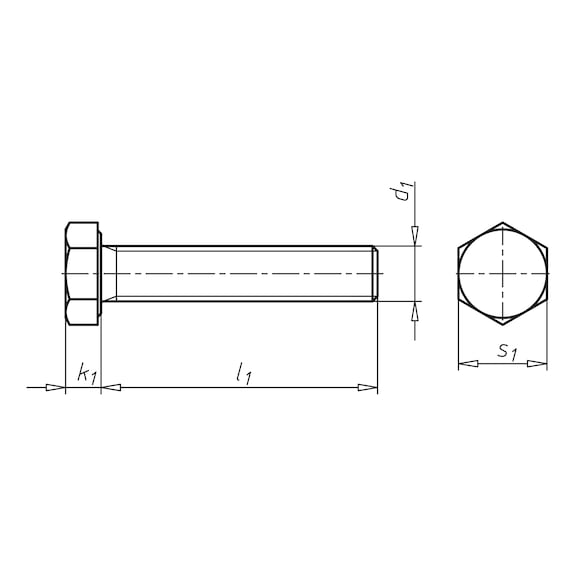

Technical Specifications
- Thread type x nominal diameter: M5
- Length: 45 mm
- Head height: 3.5 mm
- External drive: WS8 (Outer hexagon)
- Standard: ISO 4017
- Material: Steel
- Property class: 8.8
- Surface finish: Zinc nickel black coating
- Corrosion protection period: 480 hours
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread form: Standard metric thread
- Thread design: Full thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.5mm x 45mm x 8mm
- Weight: 0.02 kg
Key Features
- Hexagon head with full metric thread up to the head
- Steel material with property class 8.8 for high strength
- Zinc-nickel black coating providing corrosion resistance up to 480 hours
- Chromium (VI)-free coating with integrated lubricating particles
- Thermal capacity up to 120°C
- Outer hexagon drive (WS8) for secure fastening
- RoHS-compliant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical assemblies requiring corrosion-resistant fasteners
- Automotive and machinery applications exposed to harsh environments
- Construction and industrial equipment fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Chromium (VI)-free coating reduces environmental and health hazards
- Durable corrosion protection extends product life, reducing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
Available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
