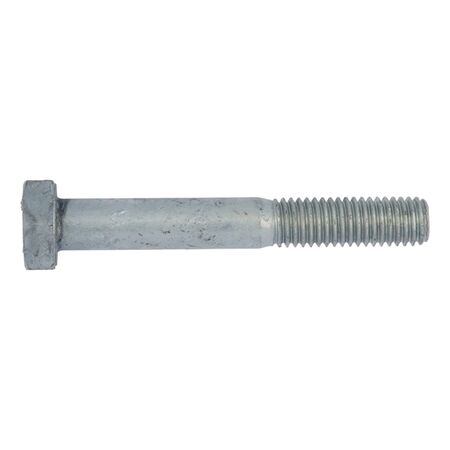

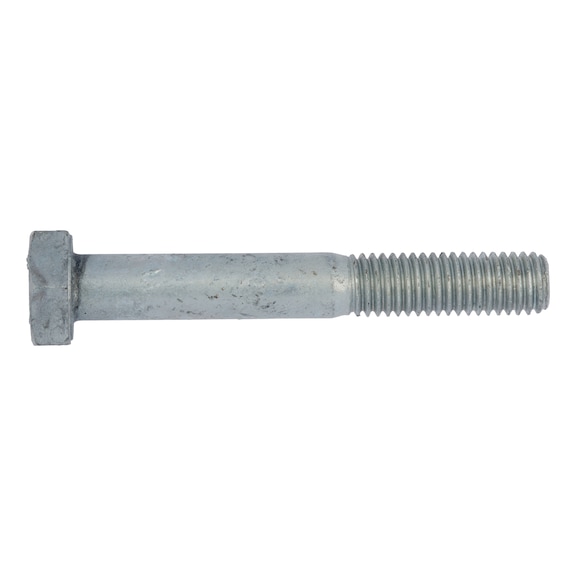

Hexagon Bolt with Shank DIN 931 | Hot Dip Galvanised | 8.8U Steel | M10x70 | @Pack of 10 | by Wurth
Hexagon Bolt with Shank DIN 931 is designed for robust fastening in construction and engineering applications. Made from 8.8U steel and hot dip galvanized for superior corrosion resistance, this M10x70 bolt ensures secure joints in machinery assembly and structural projects. Ideal for professionals seeking reliable performance and compliance with industry standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt with Shank DIN 931 | Hot Dip Galvanised | 8.8U Steel | M10x70 | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 5961070
Alternatively Known As: Hex bolt M10x70, Hot dip galvanized hex bolt, DIN 931 bolt, Steel hex bolt 8.8U, Metric hex bolt

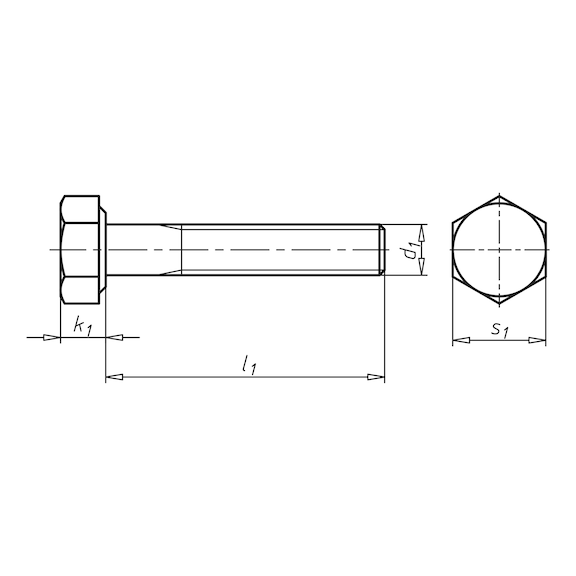

Technical Specifications
- Thread type x nominal diameter (d1): M10
- Length (l1): 70 mm
- Head height (k1): 7 mm
- External drive (s1): WS17
- Standards: DIN 931 (withdrawn, replaced by ISO 4014)
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (metric thread) (b): 26 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7mm x 70mm x 17mm
- Weight: 0.1 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection is applied (DIN EN ISO 10684)
- ISO-compatible after hot dip zinc-plating
- Hot dip galvanized surface for corrosion resistance
- Hexagon head with outer hexagon drive (WS17)
- Partial metric thread design
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper torque and secure fastening.
Applications
- Construction and structural applications requiring strong bolted joints
- Machinery assembly and maintenance
- General engineering and fabrication projects
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot dip galvanizing provides long-lasting corrosion protection reducing the need for frequent replacements
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
The Wurth Hexagon Bolt with Shank DIN 931 Steel 8.8U Hot Dip Galvanised M10x70 is available for immediate purchase, ideal for construction, engineering, and maintenance applications.
