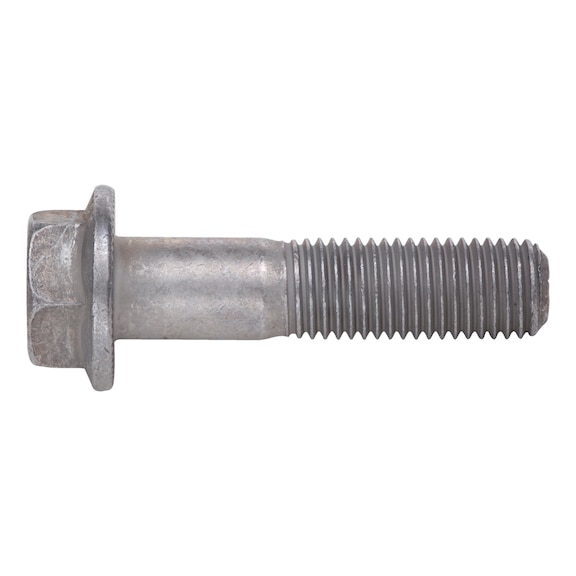

Hexagon Head Serrated Screw with Flange | M10 x 1.5 | Zinc-Nickel Plated | High Strength 10.9 | @Pack of 10 | by Wurth
Hexagon Head Serrated Screw with Flange is designed for high-strength applications, featuring a robust M10 x 1.5 thread and zinc-nickel plating for superior corrosion resistance. Ideal for utility vehicle construction and commercial vehicle frame assembly, this screw ensures mechanical interlocking to prevent self-loosening, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications

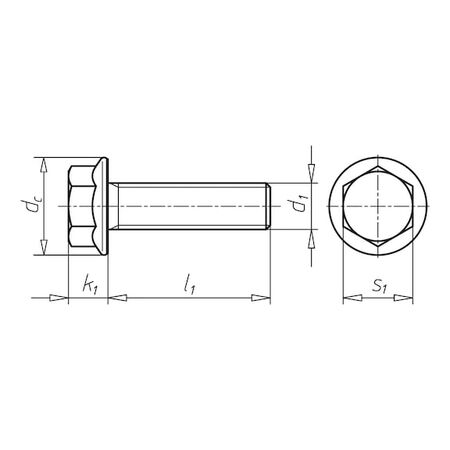

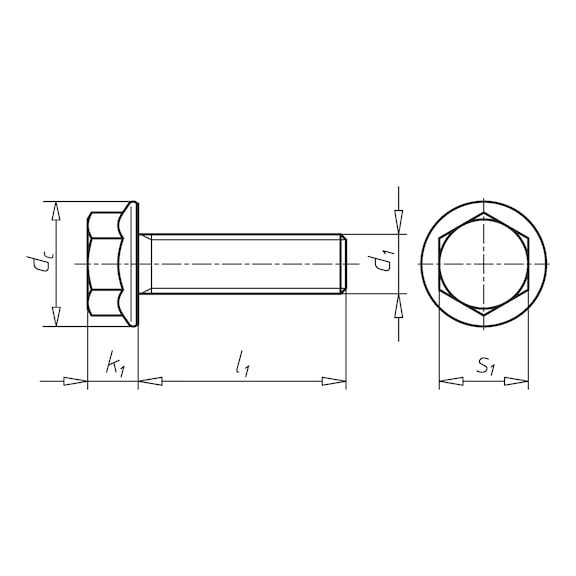

- Thread type x nominal diameter x pitch: M10 x 1.5
- Length: 40 mm
- Head diameter: 21 mm
- Head height: 8.5 mm
- External drive: WS15 (Outer hexagon)
- Standards: WN 263
- Material: Steel
- Property class: 10.9
- Surface finish: Zinc nickel silver plating
- Corrosion protection period: 720 hours (salt spray test DIN EN ISO 9227-NSS)
- Thread form: Standard metric thread
- Design: With shaft
- Drive type: Outer hexagon
- Head type: Hexagon head with flange
- Locking device operating principle: Ribs
- Locking function: Mechanical interlocking to prevent self-loosening
- Thread design: Partial thread (26 mm thread length)
- RoHS-compliant: Yes
- Dimensions (H x L x W): 8.5mm x 40mm x 21mm
- Weight: 0.05 kg
Key Features
- Zinc-nickel plated for enhanced corrosion resistance
- Strength class 10.9 for high tensile strength

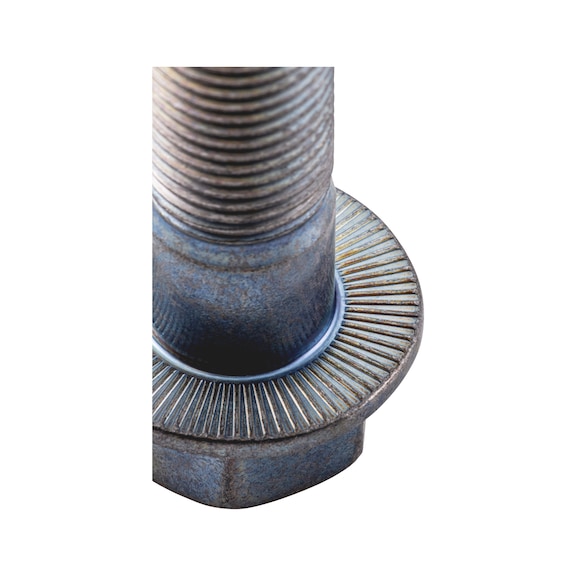

- Serrated flange head with locking ribs to prevent self-loosening
- Fine thread from M12 with partial thread design
- Chromium(VI)-free compliant with EU End of Life Vehicles Directive
- Corrosion protection period approximately 720 hours in salt spray test (DIN EN ISO 9227-NSS)
- Mechanical interlocking locking function to maintain pretensioning force
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque application and locking function.
Applications
- Utility vehicle construction
- Commercial vehicle frame assembly
- General mechanical fastening requiring high strength and corrosion resistance
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chromium(VI)-free plating reduces environmental and health hazards
- Complies with EU End of Life Vehicles Directive promoting recyclability and reduced toxic substances
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per standard terms and conditions.
Available Now
Wurth Hexagon Head Serrated Screw with Flange M10 x 40mm is available for immediate purchase, ideal for utility vehicle construction and commercial vehicle frame applications.
