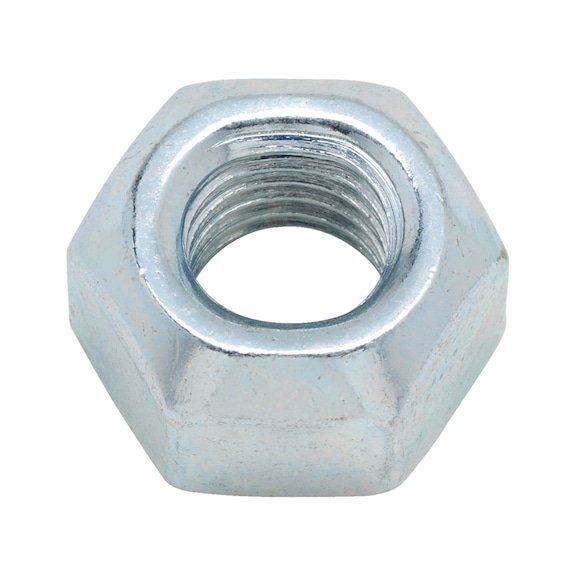

Hexagon Nut with Clamping Piece | Zinc Plated Steel | Fine Thread DIN 980 | @Pack of 25 | by Wurth
Hexagon Nut with Clamping Piece is designed for secure mechanical fastening in various applications. Made from zinc-plated steel with a fine thread DIN 980, this nut ensures reliable locking against loosening, making it ideal for automotive assembly, construction, and industrial manufacturing. With a thermal capacity of up to 120°C, it’s perfect for environments requiring durable and vibration-resistant fasteners.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut with Clamping Piece | Zinc Plated Steel | Fine Thread DIN 980 | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 36941415
Alternatively Known As: Clamping Hex Nut, Fine Thread Lock Nut, Zinc Plated Hex Nut, DIN 980 Nut, VZD Passivated Nut

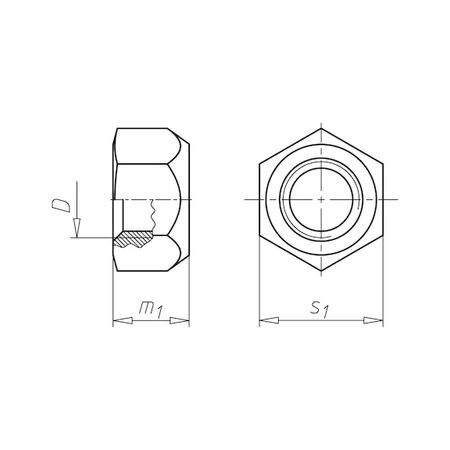

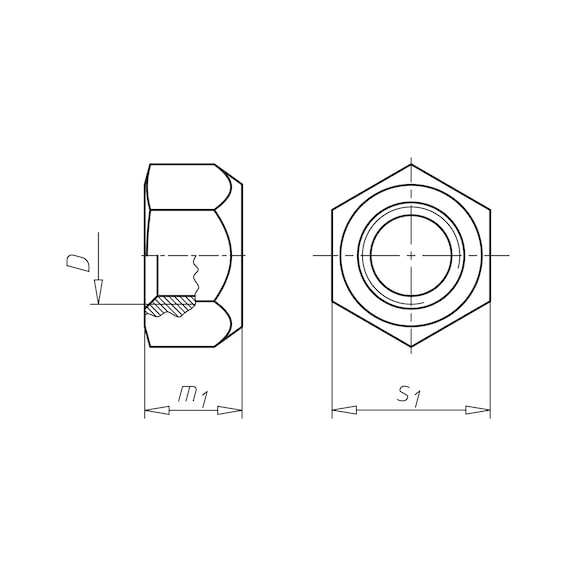

Technical Specifications
- Thread type x nominal diameter x pitch (D): M14 x 1.5
- Height (m1): 14 mm
- External drive (s1): WS22
- Material: Steel
- Property class: 10I
- Surface: Zinc plated thick-layer passivation (VZD)
- RoHS-compliant: Yes
- Locking device operating principle: Single part clamping nut metal
- Locking function: Locking against loosening by clamping
- Dimensions (H x L x W): 14mm x 14mm x 22mm
- Weight: 0.05 kg
Key Features
- Connection elements with zinc-plated chromium(VI)-free thick-film passivation (VZD)
- Future-proof alternative to chromium(VI)-containing surfaces
- Coating consists of zinc layer with passivation on chromium (III) basis
- Chrome(VI)-free alternative to A2C or A3C
- Thermal capacity up to 120°C
- Even coating distribution
- Locking against loosening by clamping with single part clamping nut metal
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and locking function.
Applications
- Mechanical fastening in machinery and equipment
- Automotive assembly and repair
- Construction and structural applications requiring secure locking nuts
- Industrial manufacturing requiring vibration-resistant fasteners
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Construction & Building)
Environmental Benefits
- Chromium(VI)-free coating reduces environmental and health hazards
- RoHS-compliant material ensures reduced toxic substance use
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Available for immediate purchase, ideal for mechanical fastening and industrial applications requiring secure locking nuts.
