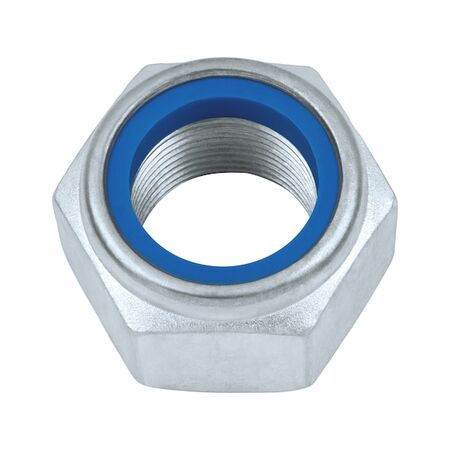

Hexagon Nut Low Profile DIN 985 | M7 Thread | Zinc Plated Blue Passivated | Clamping Piece | @Pack of 50 | by Wurth
Hexagon Nut Low Profile DIN 985 with M7 thread and zinc plated blue passivated finish is perfect for mechanical assemblies requiring secure fastening. Designed for automotive and machinery applications, this nut features a clamping part polyamide ring that locks against loosening, ensuring reliability even in high-vibration environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut Low Profile DIN 985 | M7 Thread | Zinc Plated Blue Passivated | Clamping Piece | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 3687
Alternatively Known As: Low Profile Hex Nut, DIN 985 Lock Nut, Nylon Insert Hex Nut, Clamping Nut M7, Zinc Plated Locking Nut
Technical Specifications

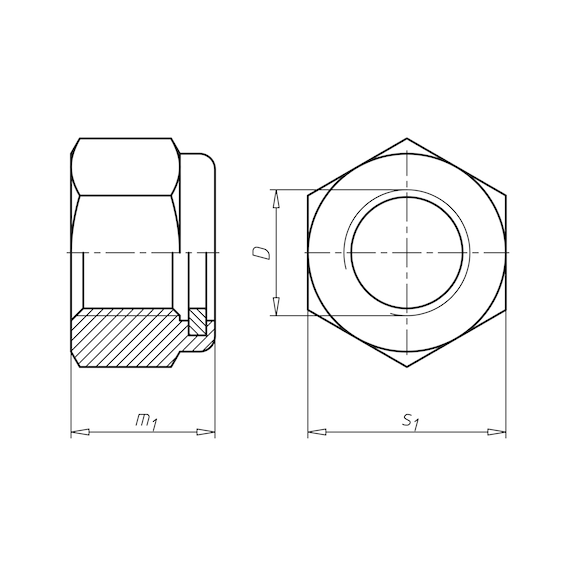

- Thread type x nominal diameter (D): M7
- Height (m1): 7.5 mm
- External drive (s1): WS11
- Standards: DIN 985 (withdrawn, replaced by 10511, 10512, 7040)
- Material: Steel
- Property class: I8I
- Surface: Zinc plated blue passivated
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- Operating temperature range: -70°C to +120°C
- Dimensions (H x L x W): 7.5mm x 11mm x 11mm
- Weight: 0.02 kg
Key Features
- Hexagon nuts with lower nominal height complying with withdrawn DIN 985 standard
- Locking against loosening by clamping with polyamide ring
- High friction locking torque generated by clamping forces between thread profiles
- No damage to thread surfaces during locking
- Operating temperature range from -70°C to +120°C
- Strength class I8I with two vertical bars before and after strength code
- Zinc plated blue passivated surface for corrosion resistance
- RoHS-compliant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and locking function.
Applications
- Mechanical assemblies requiring secure fastening with vibration resistance
- Automotive and machinery applications needing locking nuts
- General industrial fastening where reduced load capacity nuts are suitable
Standards & Compliance
- Complies with AS/NZS 1252 for mechanical fasteners (equivalent to ISO 898-2)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth Hexagon Nut Low Profile with Clamping Piece DIN 985 M7 WS11 Zinc Plated Steel is available for immediate purchase, ideal for industrial and mechanical fastening applications requiring secure locking.
