Hexagon Nut Low Profile DIN 985 | Zinc Plated Blue Passivated | Clamping Piece | M6 | @Pack of 50 | by Wurth
Hexagon Nut Low Profile DIN 985 is designed for secure mechanical fastening with a clamping polyamide ring that prevents loosening. Ideal for automotive assembly, construction, and industrial applications, this nut features a zinc plated blue passivated surface for enhanced corrosion resistance and complies with RoHS standards. With a reduced height and high friction locking torque, it ensures reliable performance in vibration-prone environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut Low Profile DIN 985 | Zinc Plated Blue Passivated | Clamping Piece | M6 | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 37006
Alternatively Known As: Locking Hex Nut, Nylon Insert Nut, DIN 985 Nut, Low Profile Hex Nut, Vibration Resistant Nut

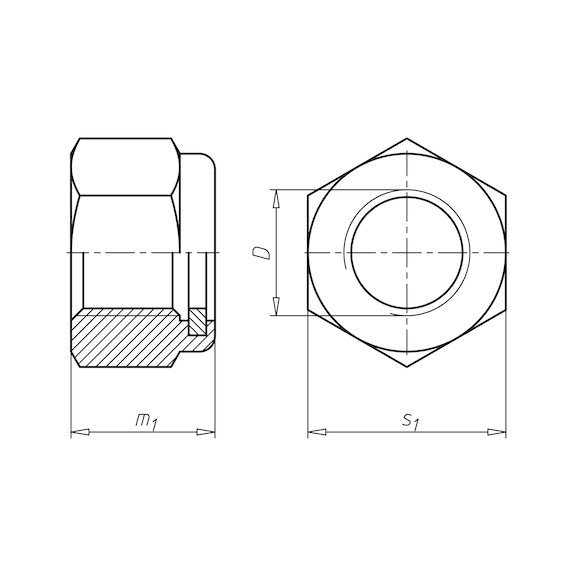

Technical Specifications
- Thread type x nominal diameter (D): M6
- Height (m1): 6 mm
- External drive (s1): WS10
- Standards: DIN 985 (withdrawn, replaced by DIN 10511, 10512, 7040)
- Material: Steel
- Property class: I10I
- Surface: Zinc plated blue passivated
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- RoHS-compliant: Yes
- Form: Low profile
- Dimensions (H x L x W): 6mm x 10mm x 10mm
- Weight: 0.02 kg
Key Features
- Hexagon nuts with reduced load capacity and lower nominal height
- Complies with withdrawn DIN 985 standard, replaced by DIN 10511, 10512, and 7040
- Locking function achieved by a clamping polyamide ring preventing loosening
- Strength class designation I10I with two vertical bars before and after the strength code
- High friction locking torque generated by clamping forces between thread profiles
- No damage to thread surfaces during locking
- Operating temperature range from -70°C to +120°C
- Zinc plated blue passivated surface for corrosion resistance
- RoHS-compliant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and locking function.
Applications
- Mechanical fastening in machinery and equipment
- Automotive assembly and repair
- Construction and structural applications requiring vibration resistance
- General industrial use where secure locking nuts are needed
Standards & Compliance
- Complies with AS/NZS 1252 for mechanical fasteners and related standards
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects in materials and workmanship.
Available Now
Available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
