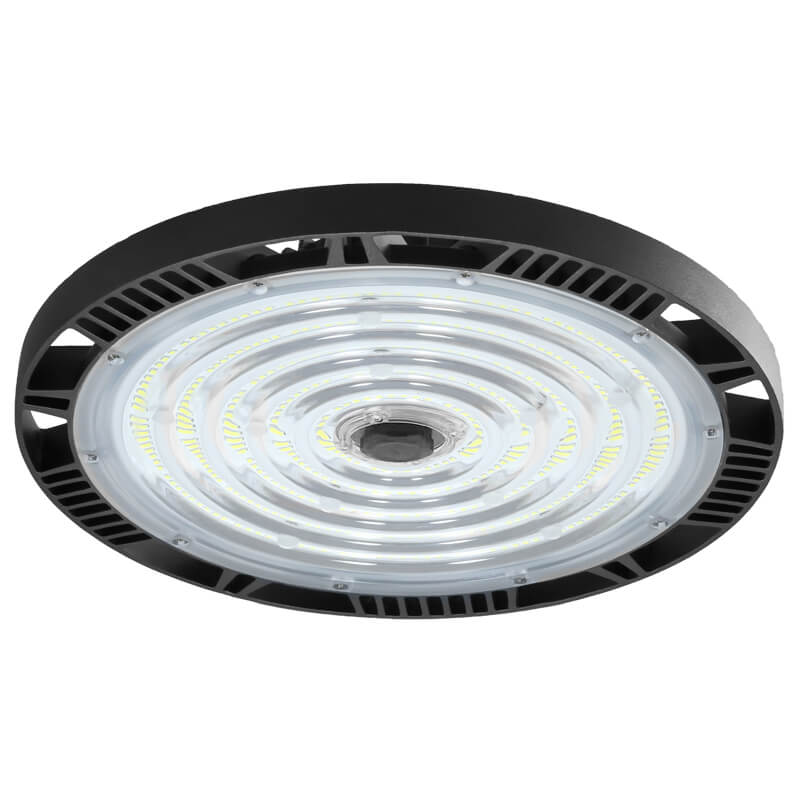

High Bay LED 100W 19000lm 5000K MajorTech
MajorTech LED high bay features 100W output, 19000lm and 5000K daylight colour. Ideal for warehouse and factory lighting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: UFO LED High Bay, Industrial LED High Bay, HHB Series LED High Bay
Technical Specifications
- Rated Power: 100W
- Lumen Output: 19,000lm
- Luminous Efficiency: 190lm/W
- Colour Temperature: 5000K neutral white
- Rated Voltage: 220–240V AC
- Voltage Range: 85–277V AC
- Frequency: 50/60Hz
- Beam Angle: 90°
- Power Factor: >0.95
- Colour Rendering Index: >70Ra
- LED Chip Type: SMD 3030
- Driver Type: Driver on Board (DOB)
- Ingress Protection: IP65
- Impact Protection: IK08
- Surge Protection: 6kV
- Rated Life: 50,000 hours
- Operating Temperature: -25°C to 50°C
- Mounting: Galvanised suspension hook and 300mm chain
- Cable: 1.5m cable with plug top for Australasia
- Optional Accessory: HMS360 quick-connect microwave sensor
- Dimensions (H x L x W): 93mm x 240mm x 240mm
- Weight: 1.85 kg
Key Features
- High-output 19,000 lumen performance from a 100W fitting
- 190lm/W luminous efficacy for energy-efficient industrial lighting
- 5000K neutral white light for clear warehouse and factory illumination
- IP65 protection against dust and water ingress
- IK08 impact-resistant construction
- Heavy-duty die-cast aluminium housing with polycarbonate lens
- Wide 90° beam angle for uniform light distribution
- 6kV surge protection
- Galvanised suspension hook and chain included
- Compatible with optional HMS360 microwave sensor
Professional Installation Requirements
- Mains-connected installation should be carried out by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions. Confirm the mounting structure is suitable for the luminaire, hook and chain assembly.
Applications
- Warehouses
- Factories and manufacturing facilities
- Workshops
- Industrial buildings
- Distribution centres
- Commercial spaces with high ceilings
- Agricultural and service buildings
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 4417
Environmental Benefits
- 190lm/W efficiency can reduce electricity consumption compared with lower-efficiency conventional high-bay luminaires
- 50,000-hour rated life can reduce replacement frequency and associated waste
- Die-cast aluminium housing can be recovered through established metal recycling streams
- LED technology provides long-life general lighting without fluorescent lamp replacement requirements
Warranty Information
5-year limited warranty. Warranty claims are subject to Major Tech's returns and warranty policy and applicable Australian Consumer Law requirements.
Available Now
Available through MajorTech and authorised Australian distributors.
