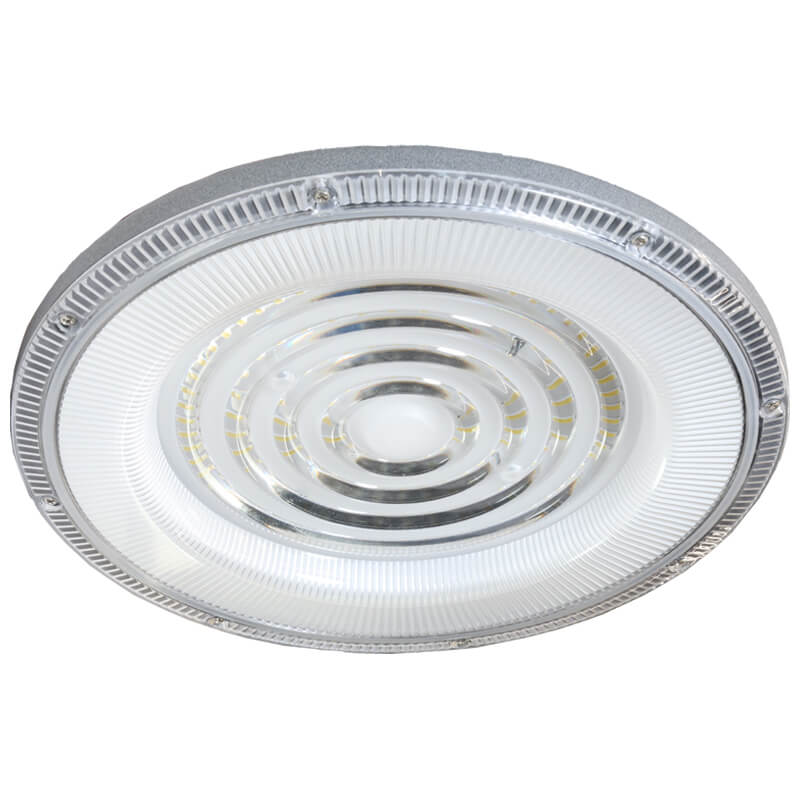

High Bay LED 100W 5000K MajorTech

BRAND: Major Tech
SKU: EHB10NW
$119.10 List price: $158.80
+ −
30 Days Return Electricians Unlock Trade Access
MajorTech LED high bay features 100W output and 5000K daylight colour for bright even light. Ideal for warehouse and factory lighting.

Alternatively Known As: MajorTech EHB10NW, 100W LED High Bay, UFO High Bay Light, Industrial LED High Bay

Technical Specifications
  • Model: EHB10NW
  • LED Power: 100W
  • Lumen Output: 12,000 lm
  • Luminous Efficiency: 120 lm/W
  • Colour Temperature: 5000K neutral white
  • LED Chip Type: SMD2835
  • Beam Angle: 90°
  • Rated Voltage: 220–240V AC
  • Voltage Range: 180–265V AC
  • Frequency: 50/60Hz
  • Power Factor: >0.9
  • Colour Rendering Index: >70 Ra
  • Driver Type: DOB (Driver on Board)
  • Rated Life: 30,000 hours
  • Ingress Protection: IP65
  • Impact Rating: IK08
  • Surge Protection: 4kV
  • Material: Die-cast aluminium body with polycarbonate lens
  • Mounting: Suspension hook and 300mm chain included
  • Installation Height: 5–6m
  • Cable: 150cm integrated cable with plug top for Australasia
  • Dimensions (H x L x W): 34mm x 302mm x 302mm
  • Weight: 1.85 kg
Key Features
  • 12,000-lumen output from a 100W LED fitting
  • 5000K neutral white light for bright, even illumination
  • 90° beam angle for industrial and commercial areas
  • IP65 dust and water protection
  • IK08 impact resistance for demanding environments
  • Die-cast aluminium housing supports heat dissipation
  • Suspension hook and chain included
  • Suitable for warehouses, factories and workshops
  • Optional microwave sensor accessory available
Professional Installation Requirements
  • Mains-connected installation should be performed by a licensed electrician in accordance with applicable Australian wiring requirements and the manufacturer's installation instructions.
Applications
  • Warehouse lighting
  • Factory and workshop lighting
  • Commercial and industrial high-bay applications
  • Manufacturing and production areas
  • Large storage and distribution facilities
Standards & Compliance
  • AS/NZS 60598.1: Luminaires — General requirements and tests
  • AS/NZS 60598.2.1: Luminaires — Particular requirements for fixed general-purpose luminaires
  • AS/NZS 4417: Regulatory compliance mark requirements for electrical equipment
Environmental Benefits
  • LED technology provides high luminous efficiency of 120 lm/W, supporting lower energy use than conventional high-bay lighting
  • 30,000-hour rated life can reduce replacement frequency and associated waste
  • Die-cast aluminium housing is a recyclable material at end of service life
  • Efficient directional lighting can reduce energy required to achieve warehouse and factory illumination
Warranty Information

2-year limited warranty for MajorTech EHB economy highbays, subject to the manufacturer's warranty terms and registration requirements.

Available Now

Available through MajorTech and authorised Australian distributors.
