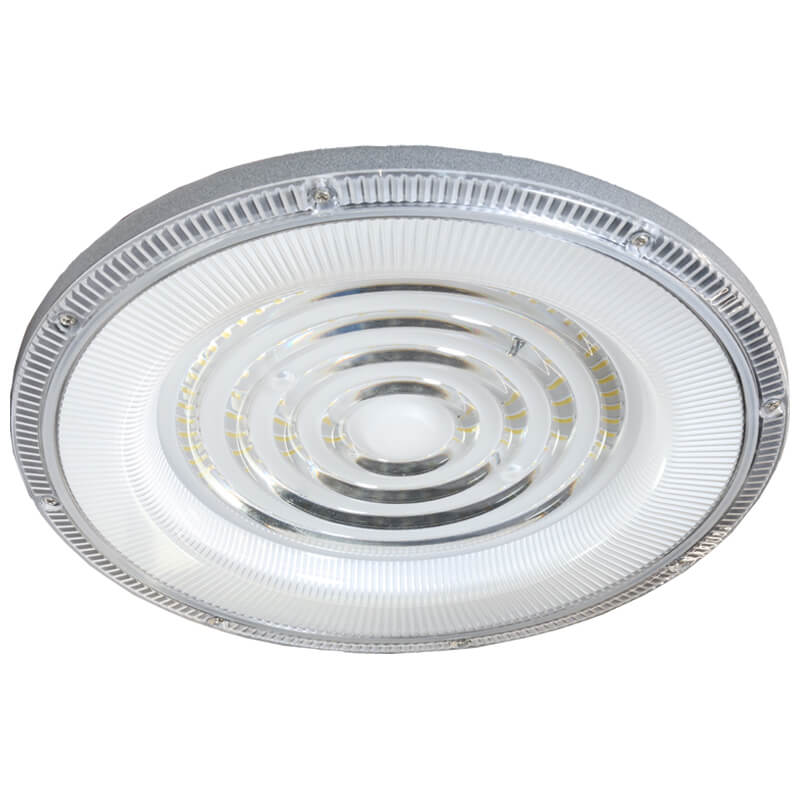

High Bay LED 150W 18000lm 5000K MajorTech

BRAND: Major Tech
SKU: EHB15NW
$150.40 List price: $200.50
+ −
30 Days Return Electricians Unlock Trade Access
MajorTech LED high bay features 150W output, 18000lm and 5000K daylight colour. Ideal for warehouse and factory lighting.

Alternatively Known As: EHB15NW LED High Bay, 150W UFO High Bay Light, Industrial LED High Bay

Technical Specifications
  • Product Code: EHB15NW
  • LED Power: 150W
  • Lumen Output: 18,000 lm
  • Luminous Efficacy: 120 lm/W
  • Colour Temperature: 5000K neutral white
  • LED Chip Type: SMD 2835
  • Beam Angle: 90°
  • Rated Voltage: 220–240V AC
  • Voltage Range: 180–265V AC
  • Frequency: 50/60Hz
  • Power Factor: >0.9
  • CRI: >70 Ra
  • Rated Life: 30,000 hours
  • Ingress Protection: IP65
  • Impact Protection: IK08
  • Surge Protection: 4kV
  • Material: Die-cast aluminium body with polycarbonate lens
  • Mounting: Suspension hook and 30 cm chain included
  • Installation Height: 5–6 m
  • Dimensions (H x L x W): 34mm x 332mm x 332mm
  • Weight: 2.05 kg
Key Features
  • 18,000-lumen output from a 150W LED fitting
  • 5000K neutral white light for clear industrial illumination
  • 120 lm/W luminous efficacy for efficient high-bay lighting
  • IP65-rated protection against dust and water ingress
  • IK08 impact-rated housing for demanding commercial environments
  • 90° beam angle for even light distribution
  • Die-cast aluminium body assists heat dissipation
  • Australasian version supplied with 150 cm cable and plug top
  • Suspension hook and chain included
  • Suitable for warehouses, factories, workshops and other industrial areas
Professional Installation Requirements
  • Mains-connected installation should be completed by a licensed electrician in accordance with applicable Australian electrical wiring requirements, including AS/NZS 3000.
Applications
  • Warehouse lighting
  • Factory and manufacturing facility lighting
  • Workshops and industrial buildings
  • Commercial storage areas
  • High-ceiling retail and logistics facilities
Standards & Compliance
  • AS/NZS 60598.1
  • AS/NZS 60598.2.1
  • AS/NZS 4417
Environmental Benefits
  • 120 lm/W efficacy can reduce electricity consumption compared with less efficient high-bay lighting
  • 30,000-hour rated life can reduce replacement frequency and associated material waste
  • Die-cast aluminium housing is durable and recyclable at end of service life
  • LED technology avoids routine lamp replacement associated with many traditional high-bay systems
Warranty Information

2-year warranty for MajorTech EHB economy highbays, subject to the manufacturer's warranty terms and conditions.

Available Now

Available through MajorTech and authorised Australian distributors.
