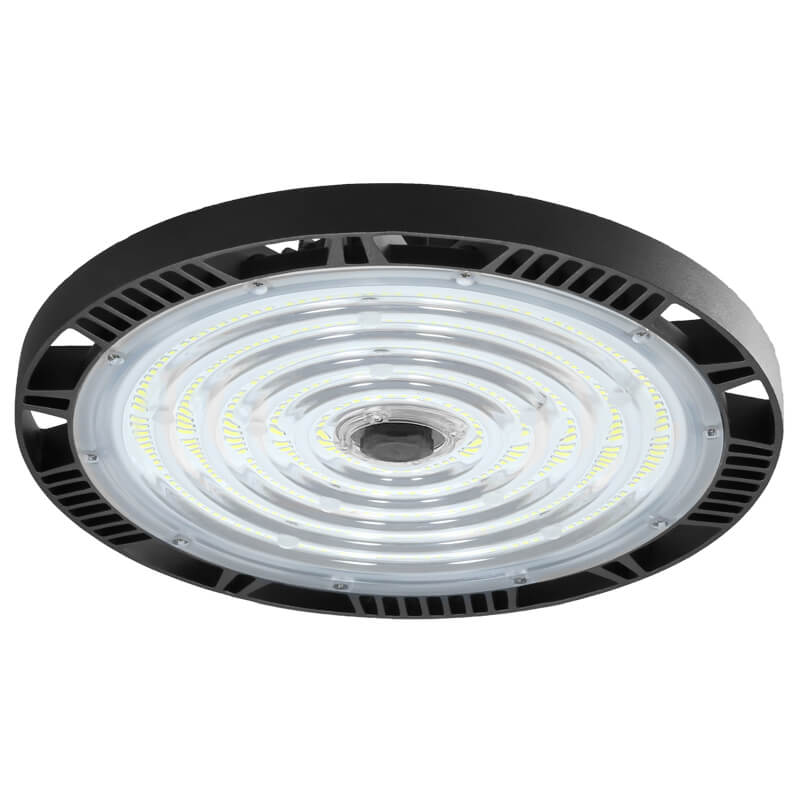

High Bay LED 150W 28500lm 5000K MajorTech

BRAND: Major Tech
SKU: HHB15NW
$263.50 List price: $351.30
+ −
30 Days Return Electricians Unlock Trade Access
MajorTech LED high bay features 150W output, 28500lm and 5000K daylight colour. Ideal for warehouse and factory lighting.

Alternatively Known As: UFO LED High Bay, Industrial LED High Bay, Warehouse LED High Bay, HHB15NW

Technical Specifications
  • Model: HHB15NW
  • Rated Power: 150W
  • Luminous Output: 28,500lm
  • Luminous Efficacy: 190lm/W
  • Colour Temperature: 5000K neutral white
  • Beam Angle: 90°
  • Input Voltage: 85–277V AC; rated 220–240V
  • Frequency: 50/60Hz
  • Power Factor: >0.9
  • LED Chip Type: SMD3030
  • Colour Rendering Index: >70 Ra
  • Rated Life: 50,000 hours
  • Ingress Protection: IP65
  • Impact Protection: IK08
  • Surge Protection: 6kV
  • Housing and Lens: Die-cast aluminium body with polycarbonate lens
  • Mounting: Suspension hook and 30cm chain included
  • Australasian Cable: 150cm integrated cable with plug top
  • Recommended Installation Height: 8–12m
  • Approvals: C-Tick, SAA, RCM and LOA
  • Dimensions (H x L x W): 34mm x 302mm x 302mm
  • Weight: 1.85 kg
Key Features
  • High-output 150W LED high bay producing 28,500 lumens
  • 5000K neutral-white light for clear industrial illumination
  • IP65-rated construction for protection against dust and water ingress
  • IK08 impact-resistant housing and polycarbonate lens
  • 90° beam angle for broad, uniform light distribution
  • Wide 85–277V AC operating range
  • 6kV surge protection for improved electrical resilience
  • Suspension hook, chain and Australasian plug-top cable included
  • Suitable for demanding warehouse, factory and workshop environments
  • Manufacturer-listed 50,000-hour rated life
Professional Installation Requirements
  • Mains-connected luminaire installation should be completed by a suitably licensed electrician in accordance with applicable Australian electrical installation requirements and the manufacturer's instructions.
Applications
  • Warehouses and distribution centres
  • Factories and manufacturing facilities
  • Workshops and industrial buildings
  • Sports and recreational facilities with high ceilings
  • Commercial spaces requiring high-bay illumination
Standards & Compliance
  • AS/NZS 60598-1: General requirements and tests for luminaires
  • AS/NZS 60598-2-1: Particular requirements for fixed general-purpose luminaires
  • Manufacturer-listed approvals include SAA, RCM, C-Tick and LOA
Environmental Benefits
  • 190lm/W efficacy can reduce energy consumption compared with lower-efficiency high-bay lighting
  • 50,000-hour rated life can reduce replacement frequency and associated waste
  • Die-cast aluminium housing is durable and recyclable at end of service life
  • LED construction avoids routine replacement of traditional high-bay lamps
Warranty Information

5-year warranty for MajorTech HHB highbays, subject to MajorTech warranty terms and conditions.

Available Now

Available through MajorTech and authorised Australian electrical distributors.
