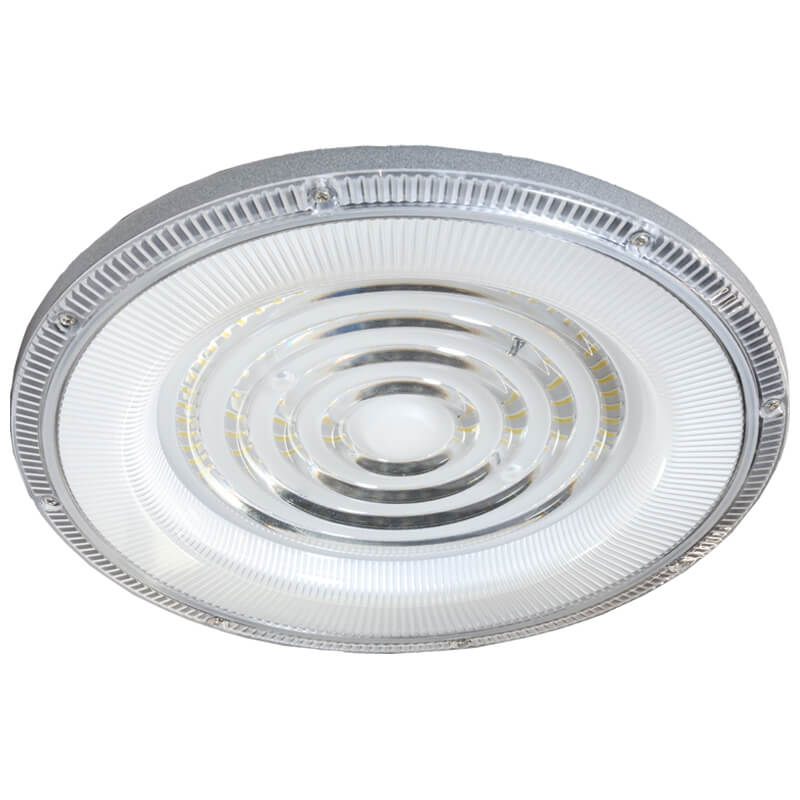

High Bay LED 200W 24000lm 5000K MajorTech

BRAND: Major Tech
SKU: EHB20NW
$191.30 List price: $255.10
+ −
30 Days Return Electricians Unlock Trade Access
MajorTech LED high bay features 200W output, 24000lm and 5000K daylight colour. Ideal for warehouse and factory lighting.

Alternatively Known As: UFO LED High Bay, Industrial LED High Bay, Warehouse LED High Bay, EHB20NW

Technical Specifications
  • Power: 200W
  • Luminous Output: 24,000lm
  • Luminous Efficacy: 120lm/W
  • Colour Temperature: 5000K neutral white
  • LED Chip Type: SMD2835
  • Beam Angle: 90°
  • Rated Voltage: 220–240V AC
  • Operating Voltage Range: 180–265V AC
  • Frequency: 50/60Hz
  • Power Factor: >0.9
  • Driver Type: DOB (Driver on Board)
  • Colour Rendering Index: >70Ra
  • Rated Life: 30,000 hours
  • Ingress Protection: IP65
  • Impact Protection: IK08
  • Surge Protection: 4kV
  • Construction: Die-cast aluminium body with polycarbonate lens
  • Mounting: Suspension hook and 30cm chain included
  • Recommended Installation Height: 9–12m
  • Standards and Approvals: IEC 60598-1, IEC 60598-2-1, AS/NZS 60598.1, AS/NZS 60598.2.1, CISPR 15, AS/NZS 4417, RCM, SAA and LOA
  • Dimensions (H x L x W): 34mm x 362mm x 362mm
  • Weight: 2.45 kg
Key Features
  • 24,000-lumen output from a 200W LED fitting
  • Ultra-slim UFO high bay design
  • 5000K neutral-white light suitable for industrial areas
  • 90° beam angle for even light distribution
  • IP65-rated protection against dust and water ingress
  • IK08 impact resistance
  • 4kV surge protection
  • Die-cast aluminium housing assists heat dissipation
  • Suspension hook and chain supplied
  • Suitable for warehouse, factory and commercial applications
Professional Installation Requirements
  • Mains-connected suspended lighting must be installed by a licensed electrician in accordance with manufacturer instructions, AS/NZS 3000 and applicable electrical safety requirements. Confirm that the suspension structure and mounting hardware are suitable for the installation environment.
Applications
  • Warehouses
  • Factories and manufacturing facilities
  • Workshops and industrial buildings
  • Distribution centres
  • Commercial storage areas
  • High-ceiling retail and trade premises
Standards & Compliance
  • AS/NZS 60598.1:2017 – Luminaires, general requirements and tests
  • AS/NZS 60598.2.1 – Particular requirements for fixed general-purpose luminaires
  • AS/NZS 4417 – Regulatory compliance marking for electrical and electronic equipment
Environmental Benefits
  • 120lm/W efficacy can reduce electricity consumption compared with lower-efficiency conventional high-bay lighting
  • 30,000-hour rated life can reduce replacement frequency and associated material waste
  • Die-cast aluminium housing is recyclable at end of service life
  • LED technology avoids routine fluorescent lamp replacement and associated disposal requirements
Warranty Information

2-year extended product warranty for MajorTech EHB economy highbays, subject to the manufacturer’s warranty conditions and proof of purchase.

Available Now

Available through MajorTech and authorised Australian electrical distributors.
