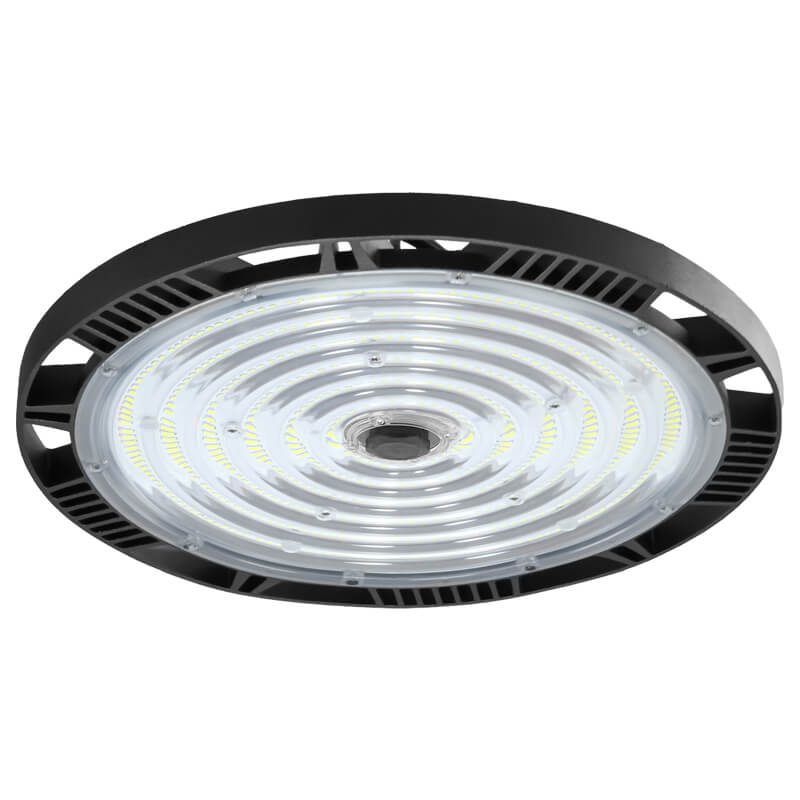

High Bay LED 200W 38000lm 5000K MajorTech
MajorTech LED high bay features 200W output, 38000lm and 5000K daylight colour. Ideal for warehouse and factory lighting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: HHB20NW High Bay, UFO LED High Bay, Industrial LED High Bay, Warehouse LED High Bay
Technical Specifications
- Model: HHB20NW
- LED Power: 200W
- Lumen Output: 38,000lm
- Luminous Efficacy: 190lm/W
- Colour Temperature: 5000K neutral white
- Rated Voltage: 220–240V AC
- Voltage Range: 85–277V AC
- Frequency: 50/60Hz
- Power Factor: >0.9
- LED Chip Type: SMD 3030
- Driver Type: Driver on Board (DOB)
- Beam Angle: 90°
- Colour Rendering Index: >70Ra
- Rated Life: 50,000 hours
- Ingress Protection: IP65
- Impact Protection: IK08
- Surge Protection: 6kV
- Housing Material: Die-cast aluminium
- Lens Material: Polycarbonate
- Mounting: Suspension hook and 300mm chain included
- Cable: 1500mm integrated cable with plug top
- Recommended Installation Height: 12–15m
- Approvals: C-Tick, SAA, RCM and LOA
- Dimensions (H x L x W): 34mm x 302mm x 302mm
- Weight: 1.85 kg
Key Features
- High-output 38,000-lumen performance from a 200W LED fitting
- 5000K neutral white light for clear warehouse and industrial illumination
- 190lm/W luminous efficacy for efficient high-bay lighting
- IP65 protection against dust ingress and water jets
- IK08 impact-resistant construction
- 6kV surge protection for improved driver protection
- Heavy-duty die-cast aluminium housing with polycarbonate lens
- 90° beam angle for broad, uniform light distribution
- Suspension hook and 300mm chain supplied
- Optional microwave sensor available
- Suitable for mounting heights of 12–15 metres
Professional Installation Requirements
- Installation should be completed by a licensed electrician in accordance with AS/NZS 3000, the manufacturer's instructions and applicable Australian electrical safety requirements.
Applications
- Warehouses and distribution centres
- Factories and manufacturing facilities
- Workshops and industrial buildings
- Commercial and bulky-goods retail spaces
- Sports halls and large indoor facilities
- High-ceiling storage and production areas
Standards & Compliance
- AS/NZS 60598-1:2017 – Luminaires, general requirements and tests
- AS/NZS 60598-2-1 – Particular requirements for fixed general-purpose luminaires
Environmental Benefits
- High luminous efficacy of 190lm/W can reduce energy consumption compared with less efficient high-bay lighting
- 50,000-hour rated life can reduce replacement frequency and associated waste
- Die-cast aluminium housing is durable and recyclable at end of service life
- LED technology avoids the mercury associated with fluorescent lamps
Warranty Information
5-year warranty for MajorTech HHB highbays, subject to the manufacturer's warranty terms and conditions.
Available Now
Available through MajorTech and authorised Australian distributors.
