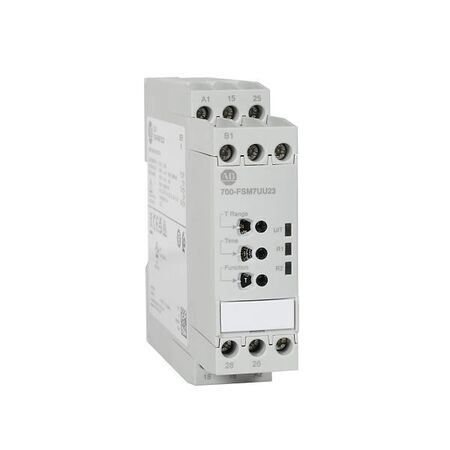

High Performance Timing Relay | 10 Single-Functions | DPDT Contact Configuration | 0.05s to 300h Timing Range | by Allen-Bradley
The High Performance Timing Relay from Allen-Bradley features 10 single-functions and a versatile DPDT contact configuration, making it ideal for industrial automation control systems. With a wide timing range from 0.05 seconds to 300 hours and compatibility with 24-48V DC and 24-240V AC, this relay ensures precise timing control for manufacturing processes and electrical control panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Timing Functions: 10 single-functions
- Contact Configuration: DPDT (2 changeover contacts)
- Timing Range: 0.05 seconds to 300 hours
- Operating Voltage: 24-48V DC, 24-240V AC
- Frequency: 50/60 Hz
- Dimensions (H x L x W): 90mm x 60mm x 22mm
- Weight: 0.3 kg
Key Features
- High performance timing relay with 10 single-functions
- Multi-function capability
- DPDT (2 C/O) contact configuration
- Wide timing range from 0.05 seconds to 300 hours
- Operates on 24-48V DC and 24-240V AC, 50/60 Hz
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation control systems
- Timing control in manufacturing processes
- Electrical control panels requiring precise timing functions
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances energy efficiency by enabling precise control of electrical systems
- Reduces unnecessary power consumption through accurate timing functions
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700FSM7UU23EX Timing Relay is available now for immediate purchase. Ideal for industrial and commercial automation control applications.
