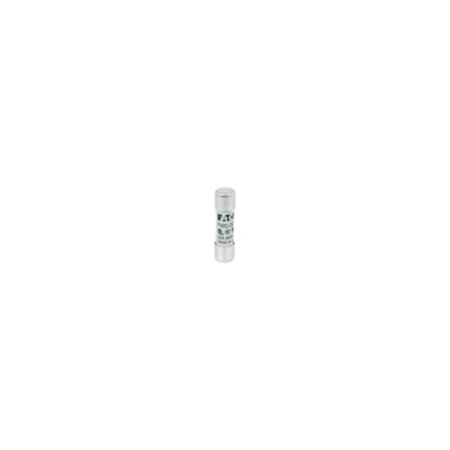

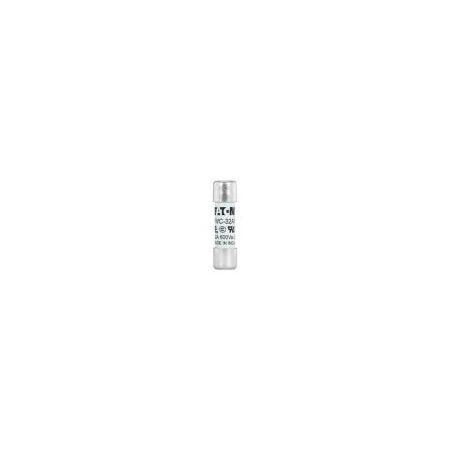

High Speed Fuse 32A 600V AC | Ferrule Connection | Ceramic Construction | 200kA Breaking Capacity by Eaton
32A 600V AC high speed fuse with ferrule connection and ceramic construction—ideal for semiconductor protection and power converters. Built for safety and durability, with a breaking capacity of 200 kA, ensuring reliable performance in critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Speed Fuse 32A 600V AC | Ferrule Connection | Ceramic Construction | 200kA Breaking Capacity by Eaton
Brand: Eaton
SKU: FWC-32A10F
Alternatively Known As: High speed fuse 32A 600V, cylindrical fuse 10x38mm, Eaton FWC fuse, semiconductor protection fuse
Technical Specifications
- Amperage Rating: 32 A
- Rated Voltage AC: 600 V
- Rated Voltage DC: 600 V
- Breaking Capacity AC: 200 kA
- Fuse Size: 10 x 38 mm
- Fuse Shape: Cylindrical
- Material: Ceramic
- Connection: Ferrule end x ferrule end
- Class: aR (accompanied semiconductor protection)
- Watt Losses: 7.5 W
- Frequency Rating: 45-62 Hz
- Fuse Indicator: Non-indicating
- Clearing (I2T): 600
- Pre arc (I2T): 95
- Dimensions (H x L x W): 11mm x 38mm x 11mm
- Weight: 0.0094 kg
Key Features
- High speed fuse with ferrule end x ferrule end connection
- Class aR for semiconductor protection
- Ceramic construction for durability and safety
- Rated voltage: 600 V AC/DC
- Breaking capacity: 200 kA at nominal voltage AC
- Non-indicating fuse type
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse selection.
Applications
- Semiconductor protection
- DC Common bus
- DC drives
- Power converters/rectifiers
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant reducing hazardous substances
- CE marked ensuring compliance with environmental and safety standards
Warranty Information
Standard Eaton warranty applies; refer to Eaton for specific warranty terms.
Available Now
The Eaton 32AMP 600V AC High Speed Cylindrical Fuse 10x38mm is available now for immediate purchase. Ideal for semiconductor and power converter protection applications.
