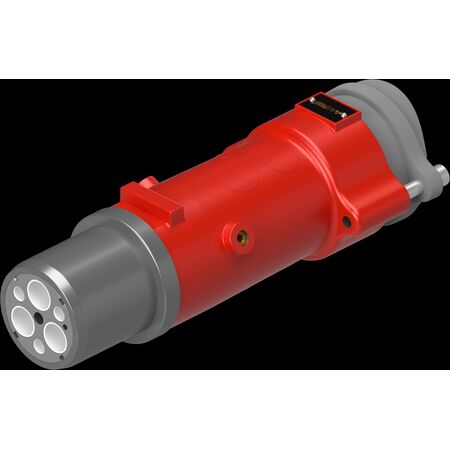

High Voltage 6 Pin Plug | 300A Current Rating | IP55 Ingress Protection | Stainless Steel by Ausproof
High voltage 6 pin plug with a 300A current rating and IP55 ingress protection—ideal for mining and industrial applications. Built for safety and durability, featuring a quick release mechanism and stainless steel construction for reliable performance in hazardous environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PL 3300V 300A 6 Pin Plug (270) 50-C 50-55-G (241.3)
Brand: Ausproof
SKU: RS1541
Alternatively Known As: High Voltage 6 Pin Plug, Ex Certified Mining Plug, Flameproof Electrical Plug, Stainless Steel Industrial Plug
Technical Specifications
- Voltage Range: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests at 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests at 8.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 8.6kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 200mm x 250mm x 150mm
- Weight: 9.0 kg
Key Features
- Quick Release mechanism for easy disconnection
- Single piece contacts to prevent hot joints
- Easy termination and flameproof repair
- Full solid earth connectivity throughout the product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover included
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation and maintenance should be performed by qualified electricians trained in hazardous area electrical equipment to ensure safety and compliance.
Applications
- Mining and tunnelling operations
- Commercial applications in hazardous Group 1 environments
- Industrial settings requiring flameproof electrical connections
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Flameproof design enhances safety, reducing risk of environmental hazards
- Easy on-site repair reduces waste and resource consumption
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PL 3300V 300A 6 Pin Plug is available now for immediate purchase. Ideal for mining, tunnelling, and commercial hazardous environment applications.
