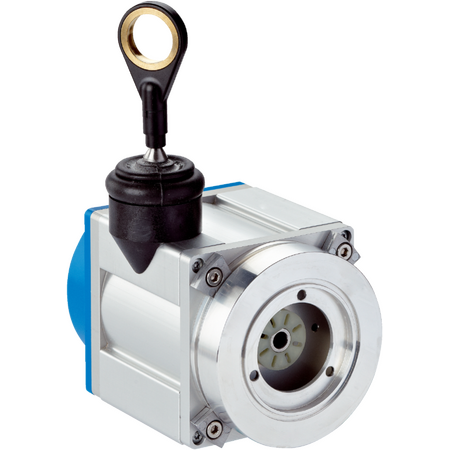

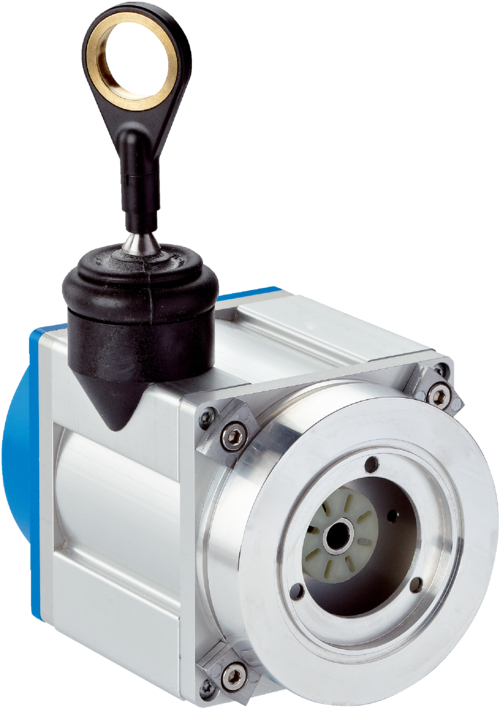

HighLine Wire Draw Encoder Mechanism 0m to 10m Measuring Range IP64 Rated SICK

BRAND: SICK
SKU: 6028627
$3,692.40 List price: $4,640.90
+ −
30 Days Return Electricians Unlock Trade Access
The HighLine Wire Draw Encoder Mechanism is designed for precise linear measurement in industrial automation

Alternatively Known As: Wire Draw Encoder Mechanism, Linear Wire Sensor, Cable Extension Sensor, Wire Potentiometer

Technical Specifications
  • Measuring range: 0 m to 10 m
  • Reproducibility: ≤ 1.5 mm
  • Linearity: ≤ ± 2 mm
  • Hysteresis: ≤ 3 mm
  • Measuring wire diameter: 1.35 mm
  • Measuring wire material: Highly flexible stranded stainless steel (1,4401 V4A)
  • Spring housing material: Plastic
  • Wire draw mechanism housing: Anodised aluminum and plastic
  • Length of wire pulled out per revolution: 332.4 mm
  • Spring return force: 10 N or 20 N
  • Wire acceleration: 40 m/s²
  • Operating speed: 8 m/s
  • Enclosure rating (mechanic): IP64
  • Life expectancy: Approximately 1,000,000 cycles
  • Weight of wire draw mechanism: 3.5 kg
  • Weight of measuring wire: 7.1 g/m
  • Ambient operating temperature: -30 °C to +70 °C
  • Dimensions (H x L x W): 150mm x 300mm x 150mm
  • Weight: 3.5 kg
Key Features
  • HighLine wire draw mechanism designed for servo flange with 6 mm shaft
  • Measuring range from 0 m to 10 m
  • Reproducibility of ≤ 1.5 mm
  • Linearity of ≤ ± 2 mm
  • Hysteresis of ≤ 3 mm
  • Highly flexible stranded stainless steel measuring wire (1.35 mm diameter)
  • Spring return force options of 10 N or 20 N
  • Operating speed up to 8 m/s
  • Enclosure rating IP64 for mechanical parts
  • Typical life of 1,000,000 cycles
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with servo flange and wire draw mechanisms to ensure accurate setup and safety.
Applications
  • Industrial automation for precise linear measurement
  • Servo flange integration with 6 mm shaft
  • Position feedback in manufacturing and process control
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable materials and long lifecycle reduce waste and replacement frequency
  • Stainless steel measuring wire ensures corrosion resistance and longevity
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK MRA-F130-110D2 HighLine Wire Draw Mechanism is available for immediate purchase, ideal for industrial automation and precise linear measurement applications.
