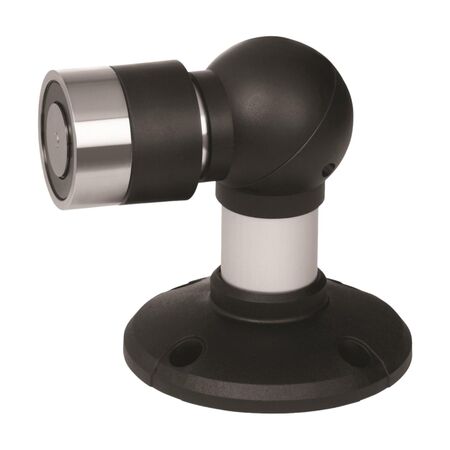

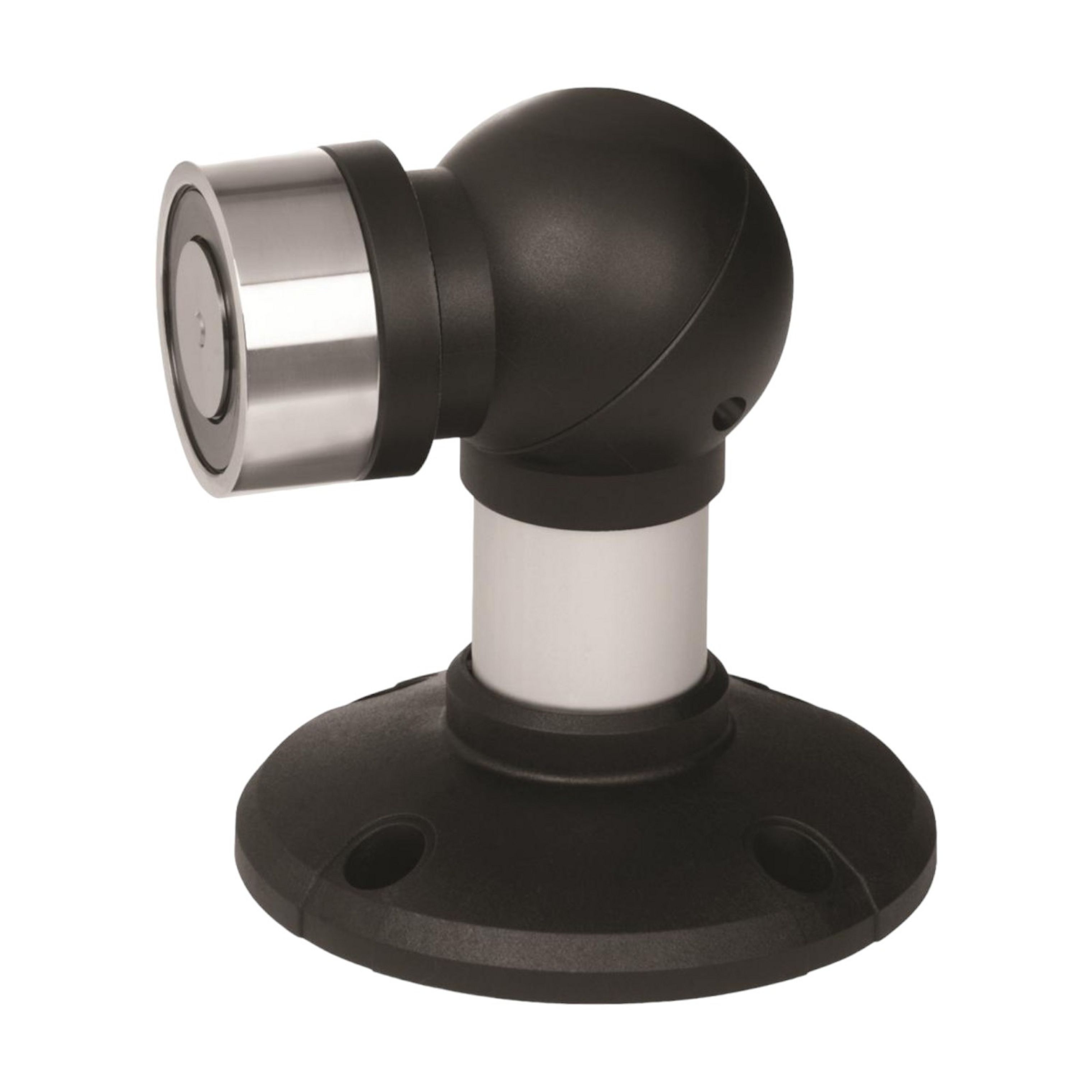

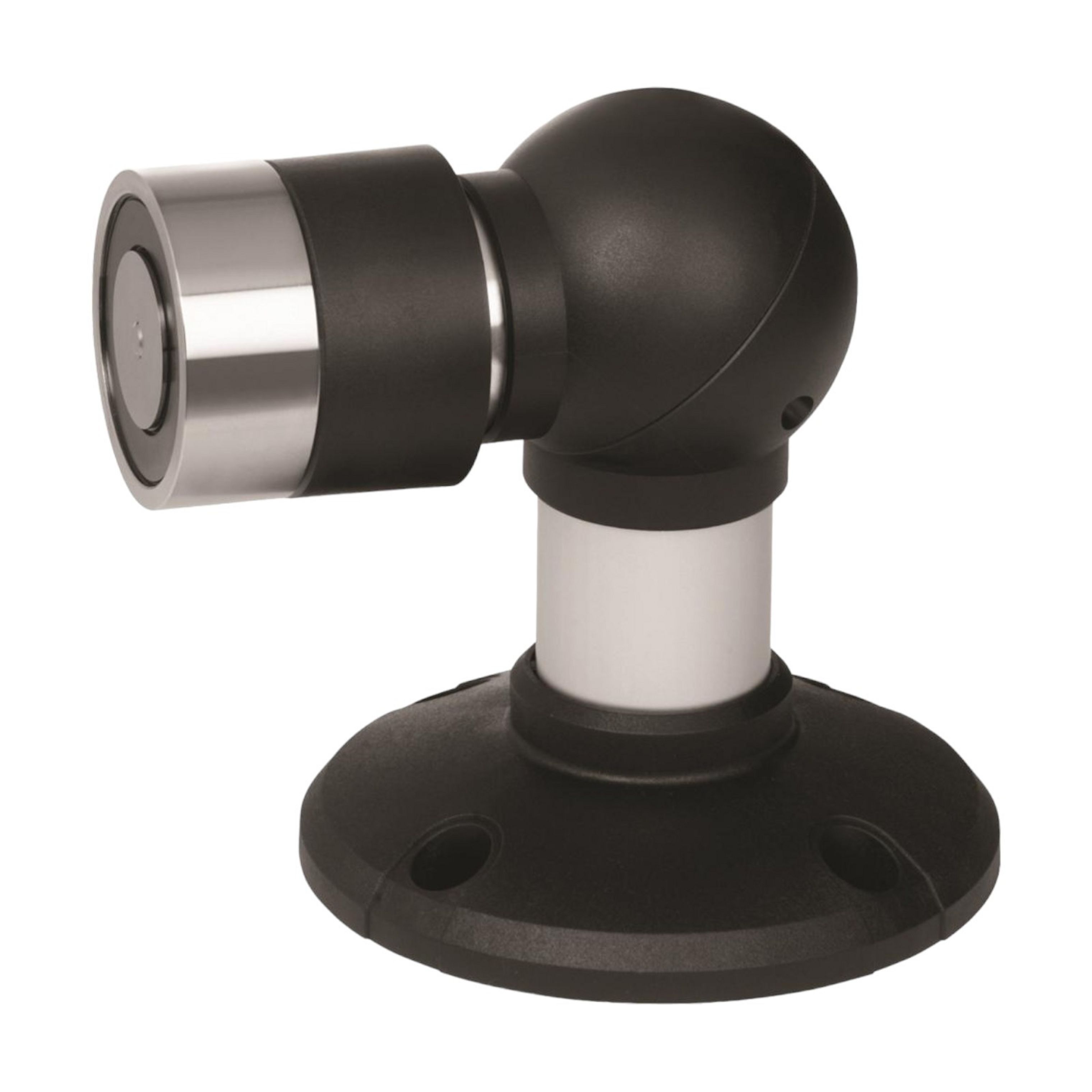

Hold Open Magnet 24VDC | 150 kg Holding Force | Integrated Push-Button | Silent Operation | by Lockwood
The Hold Open Magnet 24VDC is designed for fire safety and door hold open applications, featuring a robust 150 kg holding force and integrated push-button for manual control. Ideal for commercial and healthcare environments, this device ensures doors close automatically upon fire alarm activation, enhancing safety while providing silent operation with soft close shock absorbers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hold Open Magnet 24VDC | 150 kg Holding Force | Integrated Push-Button | Silent Operation | by Lockwood
Brand: Lockwood
SKU: EMHO830-1
Alternatively Known As: Hold Open Magnet, Door Hold Open Device, Fire Door Magnet, EM830 Hold Magnet
Technical Specifications
- Holding Force: 150 kg
- Voltage: 24 VDC
- Current: 20 mA
- Operating Temperature: 0-50°C
- Floor Spacing: 110 mm
- Wall Spacing: 215 mm
- Continuous Duty: 100% ED
- Wall & Floor Mountable
- Integrated Interrupter Push-Button
- Shock Absorber for silent operation
- Dimensions (H x L x W): 100mm x 215mm x 50mm
- Weight: 1.5 kg
Key Features
- Can operate standalone or integrated with fire detection systems for automatic release
- Integrated interrupter push-button for manual door open/close control
- Integrated soft close shock absorbers for silent operation, ideal for hospitals
- Failsafe design releases door upon fire alarm activation
- Continuous duty rated at 100% ED
Professional Installation Requirements
- Professional installation by a qualified technician is required to ensure proper integration with fire detection systems and compliance with safety standards.
Applications
- Fire doors that need to close automatically upon fire signal
- Non-fire doors that need to be held open
- Doors requiring hold open for extended periods, such as with cabin hooks
Standards & Compliance
- Complies with AS/NZS 1851 – Routine Service of Fire Protection Systems
Environmental Benefits
- Reduces energy waste by holding doors open only when safe to do so
- Supports fire safety systems to prevent fire spread, protecting environment and property
Warranty Information
5 year warranty covering manufacturing defects and performance issues.
Available Now
The Lockwood EM830 Hold Open Magnet 24VDC is available for immediate purchase, ideal for fire safety and door hold open applications in commercial and healthcare environments.
