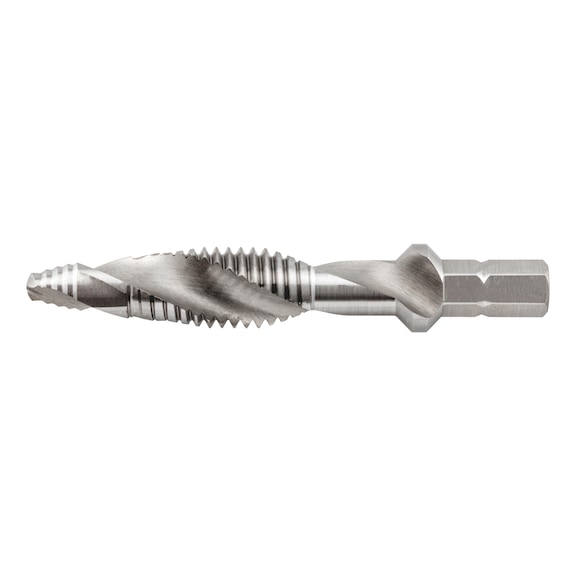

HSS Combination Screw Tap M5 | 3-in-1 Drilling & Thread Cutting | High Precision | by Wurth
The HSS Combination Screw Tap M5 is designed for drilling, thread cutting, and countersinking in a single operation, making it ideal for precision machining. With SMART STEP technology, it works up to 100% faster than conventional taps, ensuring optimal centering on curved surfaces and high-quality thread cutting. Perfect for professionals, this tool is suitable for non-ferrous metals, steel, and plastics, providing a reliable solution for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HSS Combination Screw Tap M5 | 3-in-1 Drilling & Thread Cutting | High Precision | by Wurth
Brand: Wurth
SKU: 653930500
Alternatively Known As: Combination Screw Tap, HSS Thread Cutter, SMART STEP Screw Tap, Metric Thread Tap M5
Technical Specifications
- Thread type x nominal diameter: M5
- Thread type: Metric thread
- Material to be processed: Non-ferrous metal, Steel, Cast metal
- Hole type: Clearance hole approx. 1xD
- Quality: ZEBRA-Premium
- Suitable for machine type: Drill, Cordless screwdrivers, Pedestal drilling machine
- Pitch: 0.8 mm
- Length: 43 mm
- Shank diameter: 7.18 mm
- Cutting material: HSS
- Surface: Plain
- Tolerance of screw taps: ISO 2 (6H)
- Service life (points system): 2 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 4 of 4 points
- Suitable for tensile strength up to: 600 N/mm²
- Material of sub-group: General structural steels, Non-alloyed tempering steels, Alloyed tempering steels, Nitriding steels, Tool steels, High-speed steels, Cast iron, Ductile iron, Malleable cast iron, Aluminium and alloys, Copper, Brass, Bronze, Thermoset and thermoplastic plastics
- Dimensions (H x L x W): 43mm x 43mm x 7mm
- Weight: 0.1 kg
Key Features
- 3 in 1 - drilling, thread cutting and countersinking/deburring in a single operation
- Work up to 100% faster than with conventional HSS combination screw taps
- Optimal centring even on curved surfaces
- High-precision, perfectly circular holes for high-quality thread cutting
- Effortless drilling
- First combination screw tap with stepped drill bit tip geometry
- True-to-the-gauge through hole thread according to ISO 2 (6H)
- 1/4 inch hexagon mount
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
- Available exclusively from Wurth
Professional Installation Requirements
- Use by trained professionals or experienced machinists recommended for optimal performance and safety.
Applications
- Drilling, thread cutting, and countersinking/deburring in a single operation
- Use in cordless drill drivers, handheld drills, drill presses, and pillar drills
- Suitable for machining non-ferrous metals, steel, cast metal, plastics (thermoset and thermoplastic)
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic and is fully recyclable, reducing environmental impact.
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
The Wurth Short HSS Combination Screw Tap with SMART STEP technology is available for immediate purchase, ideal for precision machining and threading applications.
