HTB18-P4A2BED02 | Photoelectric sensors

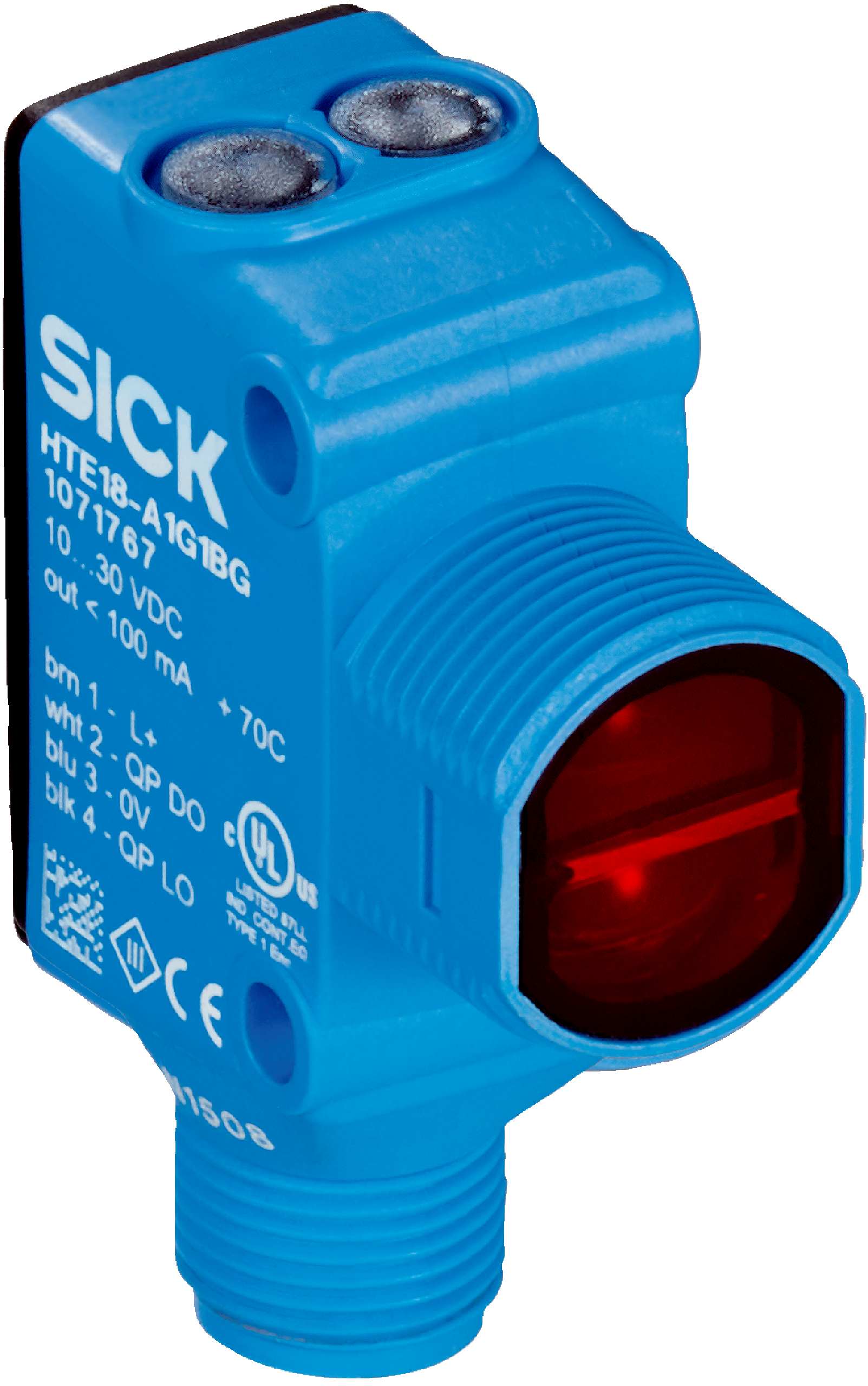

The SICK HTB18-P4A2BED02 is a robust photoelectric proximity sensor featuring background suppression, suitable for precise object detection in industrial automation with high switching frequency and durable IP67/IP69K rated housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

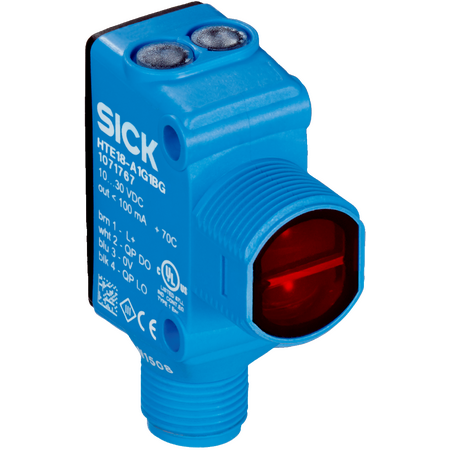

Product Name/Title: HTB18-P4A2BED02 | Photoelectric sensors
Brand: SICK
SKU: 1078821
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, M18 photoelectric sensor, SICK proximity sensor, Industrial photo sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max: 5 mm to 300 mm
- Light source: PinPoint LED, visible red light at 631 nm wavelength
- Switching output: PNP complementary with light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP67, IP69K
- Operating temperature: -40 °C to +65 °C
- Storage temperature: -40 °C to +75 °C
- Electromagnetic compatibility: EN 60947-5-2
- Dimensions (H x L x W): 48.5mm x 31.8mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light PinPoint LED with 631 nm wavelength
- Sensing range from 5 mm to 300 mm
- Hybrid housing design with M18 thread diameter
- Light/dark switching with potentiometer adjustment
- Signal strength light bar for easy monitoring
- High switching frequency of 1,000 Hz
- IP67 and IP69K rated for dust and water protection
- Operating temperature range from -40 °C to +65 °C
- Electromagnetic compatibility compliant with EN 60947-5-2
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable IP67/IP69K housing reduces waste by extending product life
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK HTB18-P4A2BED02 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
