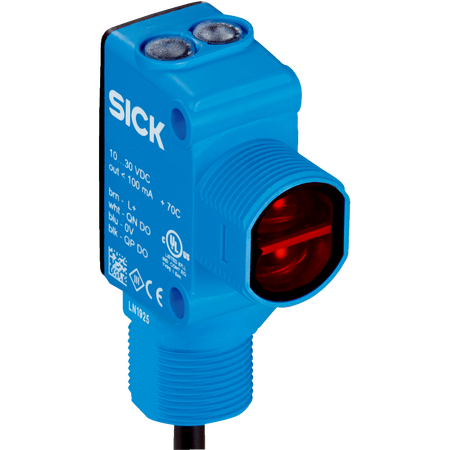

HTB18B-P4B2BAD02 | Photoelectric sensors
The SICK HTB18B-P4B2BAD02 is a high-performance photoelectric proximity sensor featuring background suppression, suitable for precise object detection in industrial automation environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HTB18B-P4B2BAD02 | Photoelectric sensors
Brand: SICK
SKU: 1101429
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, M18 photoelectric sensor, SICK proximity sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 5 mm to 300 mm
- Light source: PinPoint LED, visible red light at 631 nm wavelength
- Switching output: Complementary PNP with light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Supply voltage: 10 V DC to 30 V DC with ripple < 5 V pp
- Connection type: Cable with M12 male connector, 4-pin, 150 mm
- Housing material: Plastic VISTAL®, optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP67 and IP69K
- Operating temperature: -40 °C to +65 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 50.1mm x 31.4mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light PinPoint LED with 631 nm wavelength
- Sensing range from 5 mm up to 300 mm
- Hybrid housing design with M18 thread diameter
- IP67 and IP69K rated for robust protection
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Complementary PNP switching outputs with light/dark switching modes
- Cable with M12 male connector, 4-pin, 150 mm length
- Operating temperature range from -40 °C to +65 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging machinery
- Material handling systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable IP67/IP69K rated housing reduces waste by extending product life
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK HTB18B-P4B2BAD02 photoelectric sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
