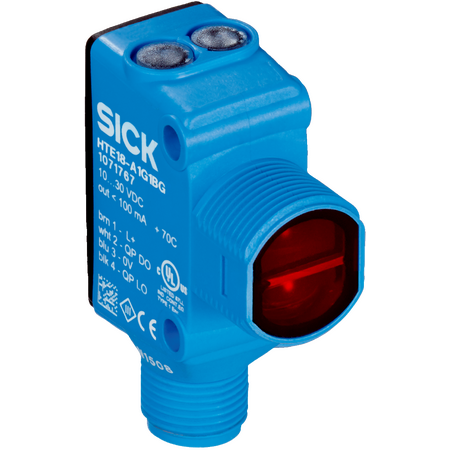

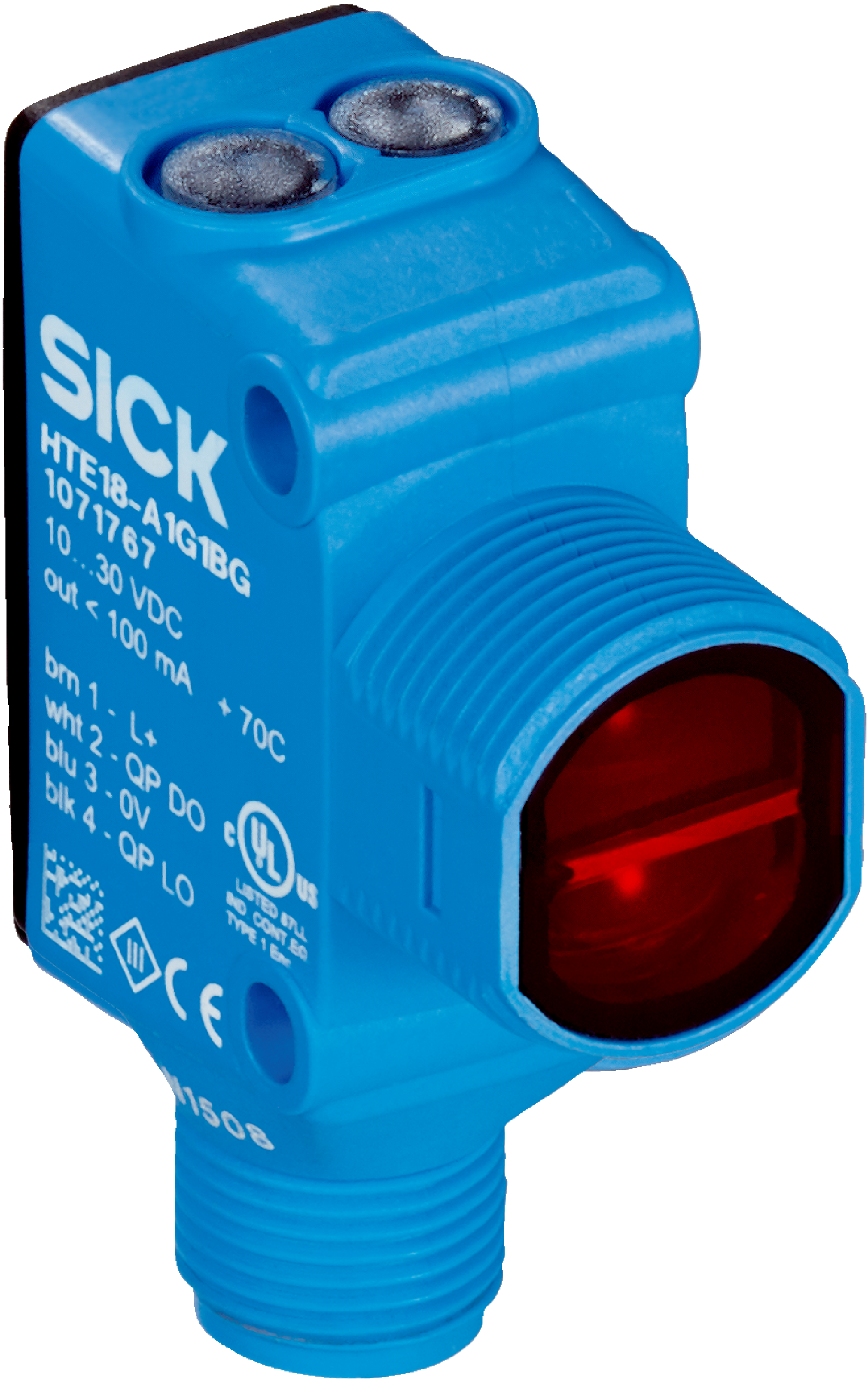

HTE18-A4A1BH | Photoelectric sensors
The SICK HTE18-A4A1BH is a high-performance photoelectric proximity sensor featuring energetic detection, robust hybrid housing, and versatile switching outputs, ideal for industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HTE18-A4A1BH | Photoelectric sensors
Brand: SICK
SKU: 1081341
Alternatively Known As: Photoelectric proximity sensor, Infrared proximity sensor, M18 photoelectric sensor, SICK proximity sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: PNP and NPN, dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male connector M12, 4-pin
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP67, IP69K
- Operating temperature: -40 °C to +70 °C
- EMC: EN 60947-5-2 compliant
- Dimensions (H x L x W): 48.5mm x 31.8mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Hybrid housing design with blue color
- Sensing range from 10 mm to 250 mm, max up to 1000 mm
- Infrared LED light source with 850 nm wavelength
- Signal strength light bar for easy adjustment
- Adjustment potentiometers for sensitivity and light/dark switching
- Switching output options: PNP and NPN with dark switching mode
- High switching frequency of 1000 Hz and response time ≤ 0.5 ms
- Enclosure rating IP67 and IP69K for robust protection
- Operating temperature range from -40 °C to +70 °C
- EMC compliant with EN 60947-5-2 standard
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable IP67/IP69K rated housing reduces waste by extending product life
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK HTE18-A4A1BH Photoelectric Proximity Sensor is available for immediate purchase. Ideal for industrial automation and safety monitoring applications.
