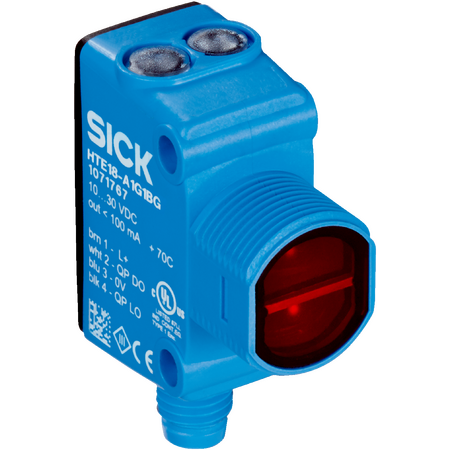

HTE18-B3A1BB | Photoelectric sensors
The SICK HTE18-B3A1BB is a durable photoelectric proximity sensor featuring energetic detection with infrared LED, suitable for industrial automation and safety applications with robust IP67/IP69K protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HTE18-B3A1BB | Photoelectric sensors
Brand: SICK
SKU: 1078531
Alternatively Known As: Photoelectric proximity sensor, Infrared proximity sensor, M18 photoelectric sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: PNP and NPN, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male connector M8, 4-pin
- Cable material: Plastic, PVC
- Protection class: III
- Enclosure rating: IP67, IP69K
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +75 °C
- EMC: EN 60947-5-2 compliant
- Dimensions (H x L x W): 44.9mm x 31.8mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Hybrid housing design with M18 thread diameter
- Sensing range from 10 mm to 250 mm (standard), max up to 1000 mm
- Infrared LED light source with 850 nm wavelength
- Signal strength light bar for easy adjustment
- Switching outputs PNP and NPN with light switching mode
- Fast response time ≤ 0.5 ms and switching frequency up to 1000 Hz
- Robust plastic VISTAL® housing with IP67 and IP69K protection ratings
- Wide ambient operating temperature range from -40 °C to +70 °C
- EMC compliant to EN 60947-5-2 industrial radio safety standards
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable housing materials extend product life reducing waste
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK HTE18-B3A1BB Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
