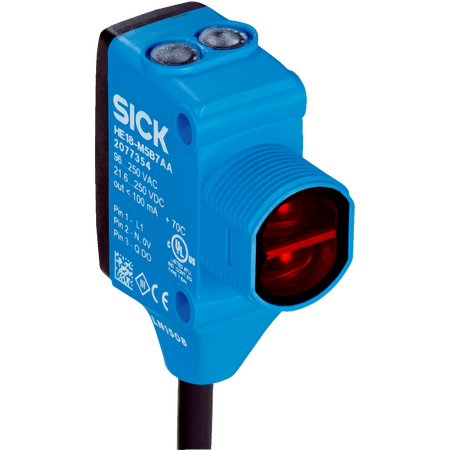

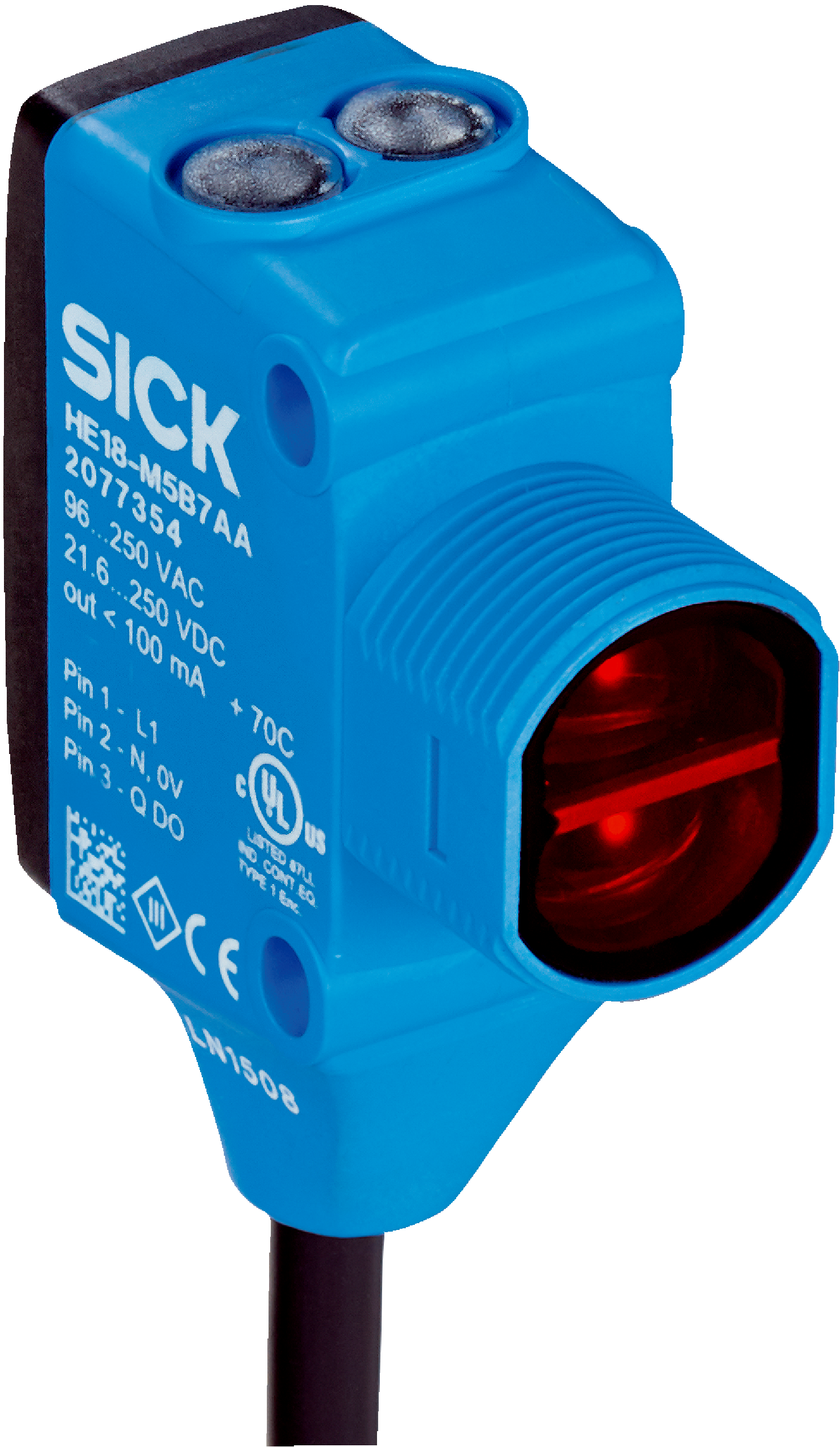

HTE18-M5B1AB | Photoelectric sensors
The SICK HTE18-M5B1AB is a durable photoelectric proximity sensor featuring energetic infrared detection, suitable for industrial automation with robust IP67/IP69K rated housing and fast switching capabilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HTE18-M5B1AB | Photoelectric sensors
Brand: SICK
SKU: 1077630
Alternatively Known As: Photoelectric proximity sensor, Infrared proximity sensor, M18 photoelectric sensor, Industrial photo sensor
Technical Specifications
- Supply voltage: 21.6 V DC to 250 V DC, 96 V AC to 250 V AC
- Current consumption: ≤ 10 mA
- Switching output: MOSFET, dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Cable with male micro connector, 4-pin, 150 mm
- Cable material: Plastic, PVC
- Conductor cross section: 0.2 mm²
- Protection class: II
- Enclosure rating: IP67, IP69K
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +75 °C
- EMC: EN 60947-5-2 compliant
- Dimensions (H x L x W): 46mm x 34mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Hybrid housing design with M18 thread diameter
- Sensing range from 10 mm to 250 mm, max up to 1000 mm
- Infrared LED light source with 850 nm wavelength
- MOSFET switching output with dark switching mode
- High switching frequency of 1000 Hz and response time ≤ 0.5 ms
- Robust plastic VISTAL® housing with IP67 and IP69K protection
- Wide ambient operating temperature range from -40 °C to +70 °C
- Cable with male micro connector, 4-pin, 150 mm length
- Electromagnetic compatibility compliant with EN 60947-5-2
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with ≤ 10 mA current draw
- Durable housing reduces waste through extended product life
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK HTE18-M5B1AB Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
