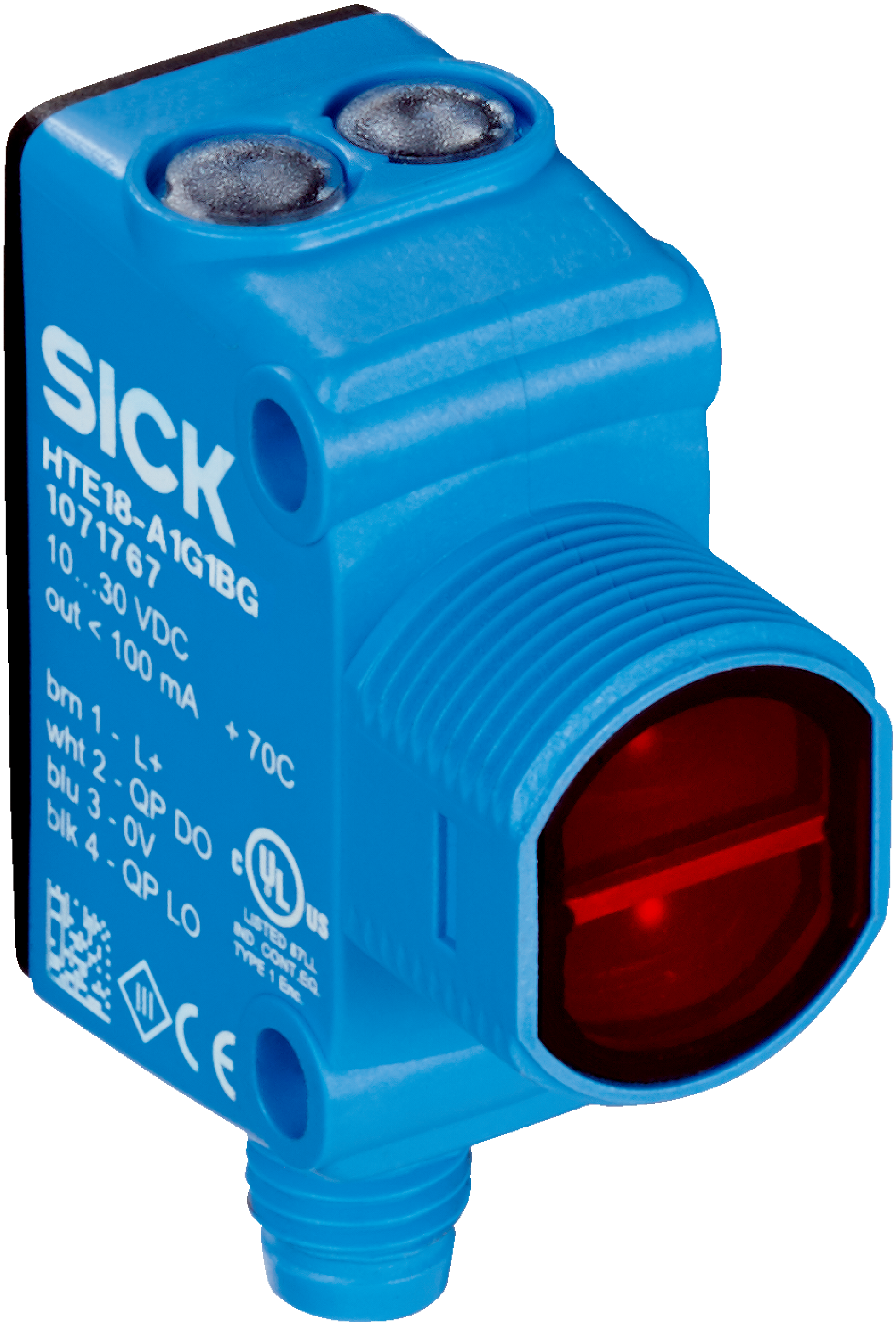

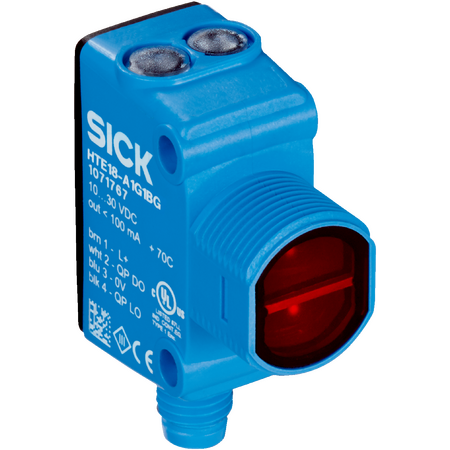

HTE18-P3A1BB | Photoelectric sensors
The SICK HTE18-P3A1BB is a durable photoelectric proximity sensor featuring energetic infrared detection, robust IP67/IP69K rated housing, and fast switching for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HTE18-P3A1BB | Photoelectric sensors
Brand: SICK
SKU: 1071764
Alternatively Known As: Photoelectric proximity sensor, Infrared proximity sensor, M18 photoelectric sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: PNP complementary with light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male connector M8, 4-pin
- Cable material: Plastic, PVC
- Protection class: III
- Enclosure rating: IP67, IP69K
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +75 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 44.9mm x 31.8mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Hybrid housing design with M18 thread diameter
- Sensing range from 10 mm to 250 mm, max up to 1000 mm
- Infrared LED light source with 850 nm wavelength
- Signal strength light bar for easy adjustment
- Light/dark switching mode with complementary PNP outputs
- Fast response time ≤ 0.5 ms and switching frequency up to 1000 Hz
- Robust plastic VISTAL® housing and PMMA optics
- High protection rating IP67 and IP69K for harsh environments
- Wide ambient operating temperature range from -40 °C to +70 °C
- Includes fastening nut M18, plastic, black, flat
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable design reduces waste and replacement frequency
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK HTE18-P3A1BB Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
