HTE18B-P4B1BB | Photoelectric sensors

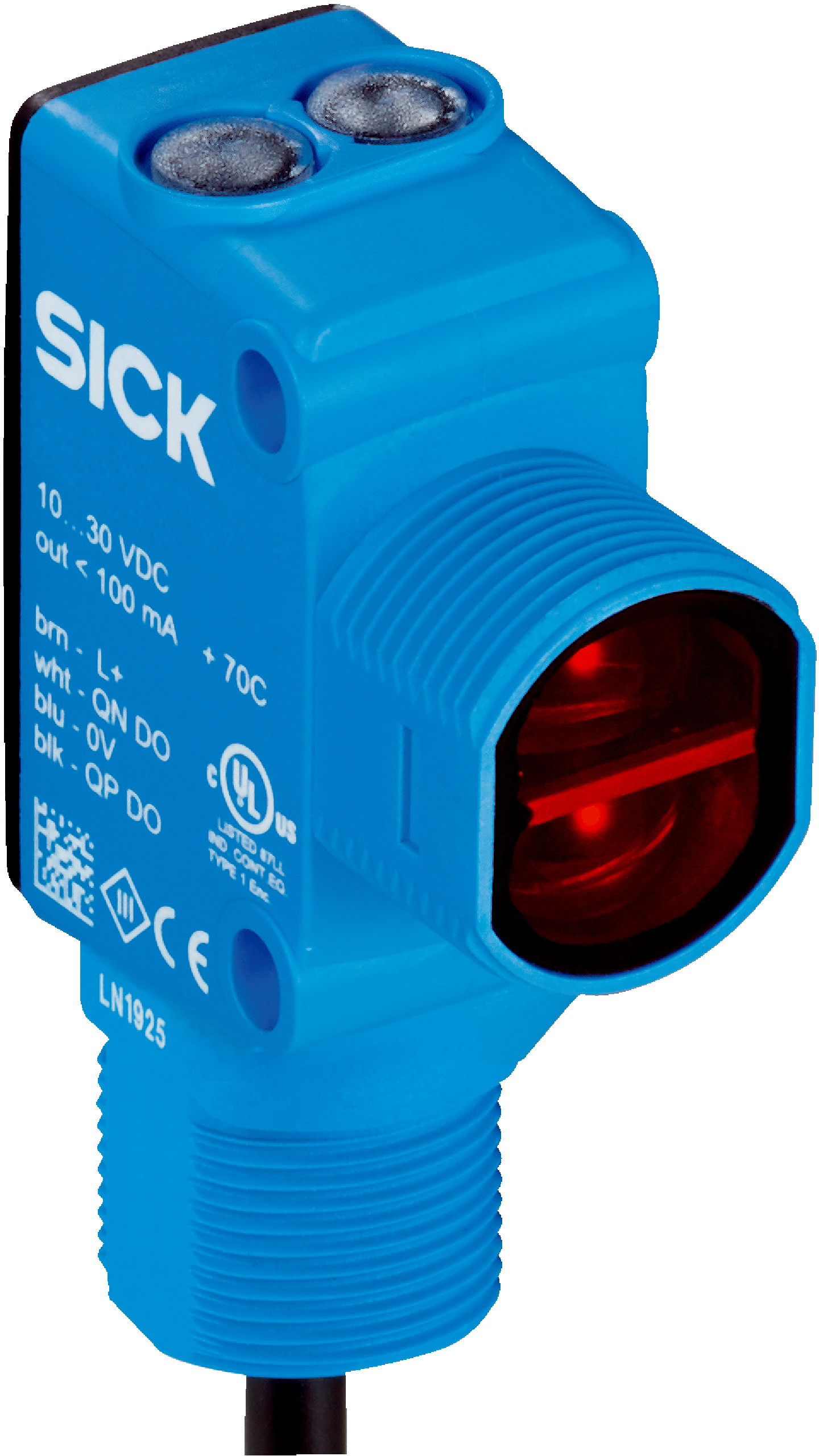

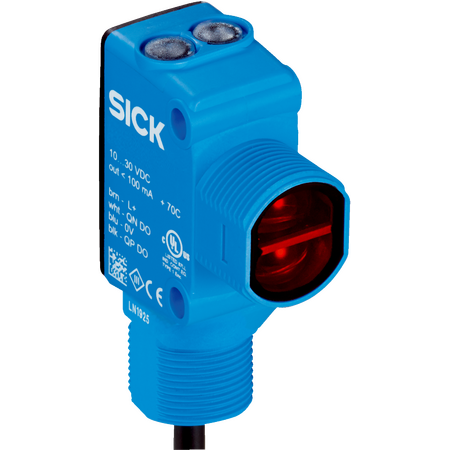

The SICK HTE18B-P4B1BB is a durable photoelectric proximity sensor featuring infrared LED technology, high switching frequency, and robust IP67/IP69K rated housing, ideal for industrial automation and object detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HTE18B-P4B1BB | Photoelectric sensors
Brand: SICK
SKU: 1101406
Alternatively Known As: Photoelectric proximity sensor, Infrared proximity sensor, PNP photoelectric sensor, Industrial object sensor, SICK sensor HTE18B
Technical Specifications
- Dimensions (H x L x W): 50.1mm x 31.4mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Hybrid housing design with blue color
- Sensing range from 10 mm to 250 mm, max up to 1000 mm
- Infrared LED light source with 850 nm wavelength
- Signal strength light bar for easy adjustment
- Switching output: PNP complementary with light/dark switching
- High switching frequency of 1000 Hz and response time ≤ 0.5 ms
- Cable with M12 male connector, 4-pin, 150 mm length
- Robust plastic VISTAL® housing and PMMA optics
- Protection rating IP67 and IP69K for harsh environments
- Wide ambient operating temperature range from -40 °C to +70 °C
- Electromagnetic compatibility compliant with EN 60947-5-2
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct wiring and sensor alignment for optimal performance and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling systems
- Packaging machinery
- Safety and security systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67/IP69K rated housing reduces waste by extending product life
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK HTE18B-P4B1BB Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
