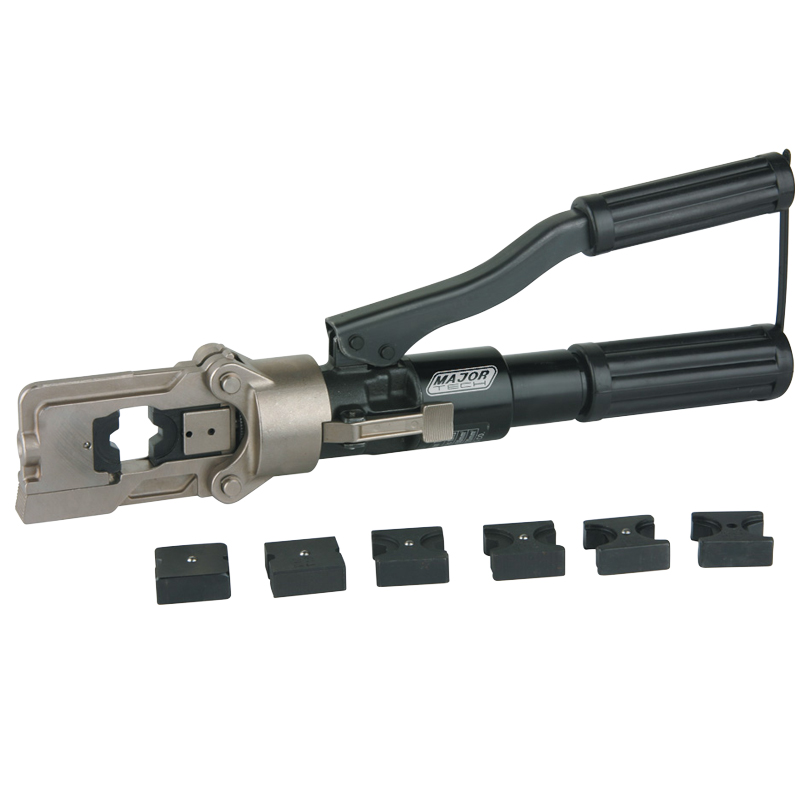

Hydraulic Crimper and Pump Set 150mm MajorTech
MajorTech hydraulic crimper set features a 150mm capacity head, pump and case for high-force crimps. Ideal for large cable lug termination.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Major Tech HCT150 Hydraulic Cable Crimper, Hydraulic Lug Crimper and Pump Set, 150mm² Hydraulic Crimper
Technical Specifications
- Model: HCT150
- Crimping Force: 60kN
- Maximum Copper Crimping Capacity: 150mm²
- Maximum Aluminium Crimping Capacity: 120mm²
- Crimping Range: 10–150mm² copper cable
- Crimping Type: Hexagonal
- Stroke: 15mm
- Oil Capacity: 60cc
- Included Dies: 10, 16, 25, 35, 50, 70, 95, 120 and 150mm² copper
- Kit Contents: Hydraulic crimping tool, crimping dies and hard plastic carrying case
- Safety System: Built-in safety system
- Dimensions (H x L x W): 120mm x 450mm x 320mm
- Weight: 8.5 kg
Key Features
- High-force hydraulic crimping for large cable lugs and links
- Hexagonal crimp profile for consistent cable termination
- Includes nine copper crimping dies from 10mm² to 150mm²
- Suitable for copper conductors up to 150mm² and aluminium conductors up to 120mm²
- 15mm ram stroke and 60cc oil capacity
- Supplied with a protective hard plastic carry case
- Designed for electrical cable lug termination and heavy-duty field work
Professional Installation Requirements
- Use should be carried out by a suitably qualified electrician or electrical tradesperson. Cable lugs, dies and crimping procedures must be matched to the conductor and connector manufacturer's instructions, with completed electrical work performed in accordance with applicable wiring rules.
Applications
- Crimping copper cable lugs and links
- Termination of large electrical conductors
- Switchboard and distribution-board cable work
- Industrial, commercial and maintenance electrical installations
- Field servicing and electrical cable assembly
Environmental Benefits
- Durable hydraulic construction can support repeated professional use and reduce premature tool replacement
- Enables reliable repair and termination of existing electrical cabling, potentially reducing cable and connector waste
- Hard plastic carry case helps protect the tool and dies during storage and transport, supporting longer service life
Warranty Information
Major Tech lists tools under its 2-year extended product warranty, subject to the published warranty conditions, proof of purchase and exclusions for misuse, neglect, normal wear and unauthorised alterations. ([majortech.com.au](https://majortech.com.au/uploads/Warranties_and_Returns_Policy_Australia.pdf))
Available Now
Available through Major Tech and authorised Australian electrical and trade-equipment distributors.
