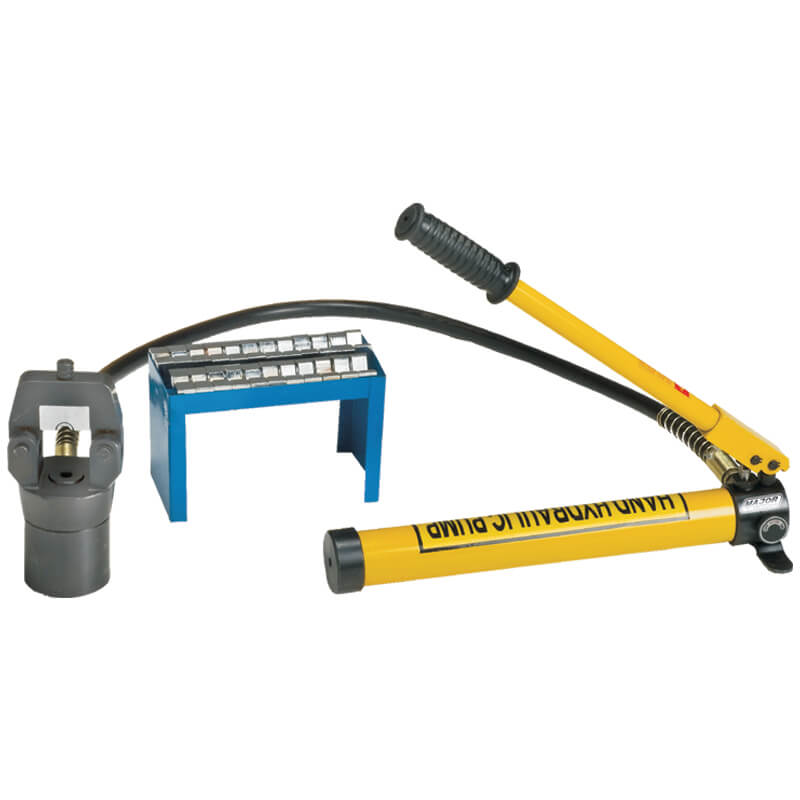

Hydraulic Crimper and Pump Set 400mm MajorTech
MajorTech hydraulic crimper set features a 400mm capacity head, pump and case for high-force crimps. Ideal for large cable lug termination.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 400mm² Hydraulic Cable Crimper, Hexagon Hydraulic Crimper, Hydraulic Lug Crimping Tool Set
Technical Specifications
- Product Code: HCT416
- Maximum Crimping Force: 22 tonnes
- Crimping Range: 16–400mm²
- Crimping Type: Hexagonal
- Stroke: 22mm
- Included Dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 and 400mm²
- Set Contents: Hydraulic crimping head, hydraulic pump, crimping dies and carrying case
- Conductor Compatibility: Copper conductors and cable lugs
- Pump Specification: HP700 hydraulic pump with approximately 700mm pump length and 900cc oil capacity
- Dimensions (H x L x W): 180mm x 700mm x 300mm
- Weight: 18 kg
Key Features
- High-force hydraulic operation for large cable lug termination
- Covers cable sizes from 16mm² to 400mm²
- Hexagonal crimp profile for consistent cable lug compression
- Includes 12 interchangeable crimping dies
- Drop-forged crimping head construction
- High-strength tubular handle with rubber grip
- Supplied as a complete set with pump and carrying case
Professional Installation Requirements
- Use by a suitably trained electrical tradesperson is recommended. Cable lug installation must be completed by a competent person in accordance with the applicable electrical installation requirements, with circuits isolated before work begins.
Applications
- Crimping copper cable lugs and terminals
- Large conductor termination in switchboards and distribution equipment
- Industrial electrical installation and maintenance
- Battery, inverter and power distribution cable termination
- Commercial and industrial cable assembly work
Environmental Benefits
- Reusable hydraulic tool system reduces reliance on disposable termination equipment
- Durable forged construction supports extended service life and reduces replacement waste
- Replaceable dies allow the set to remain useful across multiple cable sizes
- Supports reliable low-resistance cable terminations that can help reduce electrical losses
Warranty Information
MajorTech lists a 2-year warranty for tools, subject to its warranty terms, proof of purchase and exclusions for misuse, neglect, unauthorised alterations and normal wear.
Available Now
Available through MajorTech and authorised Australian distributors.
