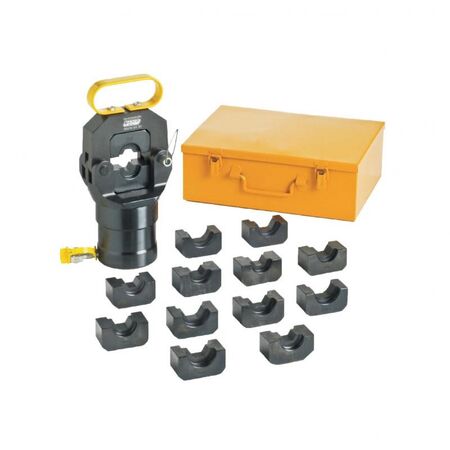

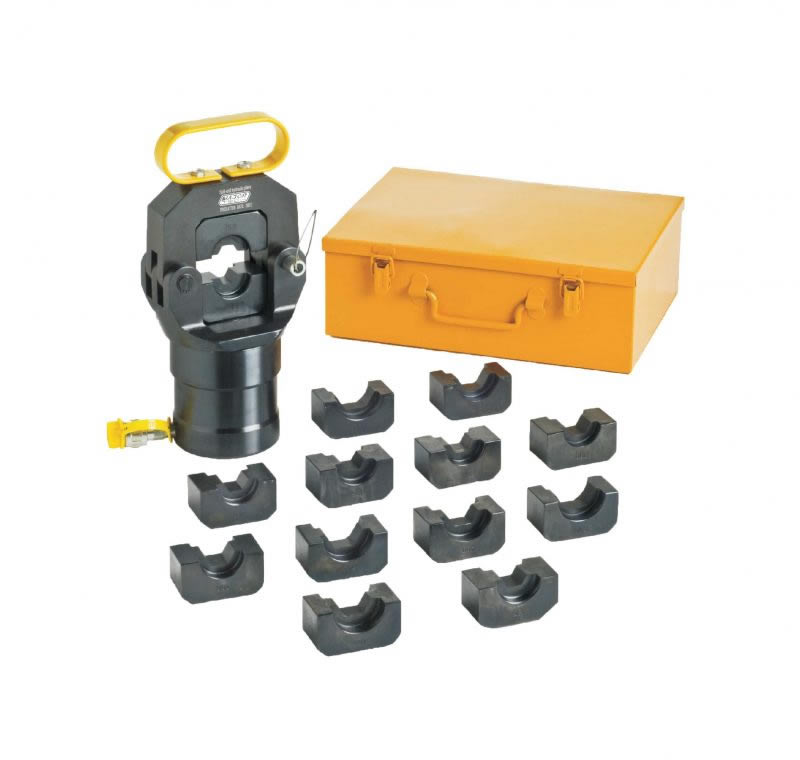

Hydraulic Crimping Tool 150-630mm MajorTech

BRAND: Major Tech
SKU: HCT630
$1,961.10 List price: $2,614.80
+ −
30 Days Return Electricians Unlock Trade Access
MajorTech hydraulic crimping tool features 150-630mm capacity and hydraulic drive for high-force crimps. Ideal for large cable lug termination.

Alternatively Known As: HCT630 Hydraulic Cable Crimper, 30 Tonne Hydraulic Crimping Tool, Hexagonal Hydraulic Crimper

Technical Specifications
  • Model: HCT630
  • Crimping Capacity: 150–630mm²
  • Crimping Force: 30 tonnes
  • Stroke: 25mm
  • Crimping Type: Hexagonal
  • Included Dies: 150mm², 185mm², 240mm², 300mm², 400mm², 500mm² and 630mm²
  • Carry Case: Metal case included
  • Hydraulic Pump Compatibility: MajorTech HP700 hydraulic pump
  • Dimensions (H x L x W): 195mm x 305mm x 210mm
  • Weight: 17 kg
Key Features
  • High-force hydraulic operation for large cable lugs and connectors
  • Hexagonal crimping profile for consistent cable termination
  • Suitable for cable sizes from 150mm² to 630mm²
  • Includes seven interchangeable crimping dies
  • Drop-forged crimping head for heavy-duty trade use
  • Supplied in a protective metal carry case
  • Can be connected to the MajorTech HP700 hydraulic pump
Professional Installation Requirements
  • Use should be undertaken by a suitably qualified electrical tradesperson. Cables must be isolated and de-energised before crimping, and cable lugs, connectors and crimping procedures should follow the relevant manufacturer instructions and electrical installation requirements.
Applications
  • Crimping large copper cable lugs
  • Terminating heavy-duty power cables
  • Crimping cable connectors and splices
  • Electrical distribution, industrial and commercial installation work
  • Workshop and field servicing of large-conductor cable systems
Environmental Benefits
  • Reusable interchangeable dies reduce the need to replace the complete tool for different cable sizes
  • Durable drop-forged construction can extend service life and reduce replacement waste
  • Metal components and the carry case are generally recyclable at end of service life
  • Suitable for repair and maintenance work, supporting longer service life of electrical cable systems
Warranty Information

MajorTech tools carry a 2-year warranty, subject to the manufacturer's warranty terms and exclusions.

Available Now

Available through MajorTech and authorised Australian distributors.
