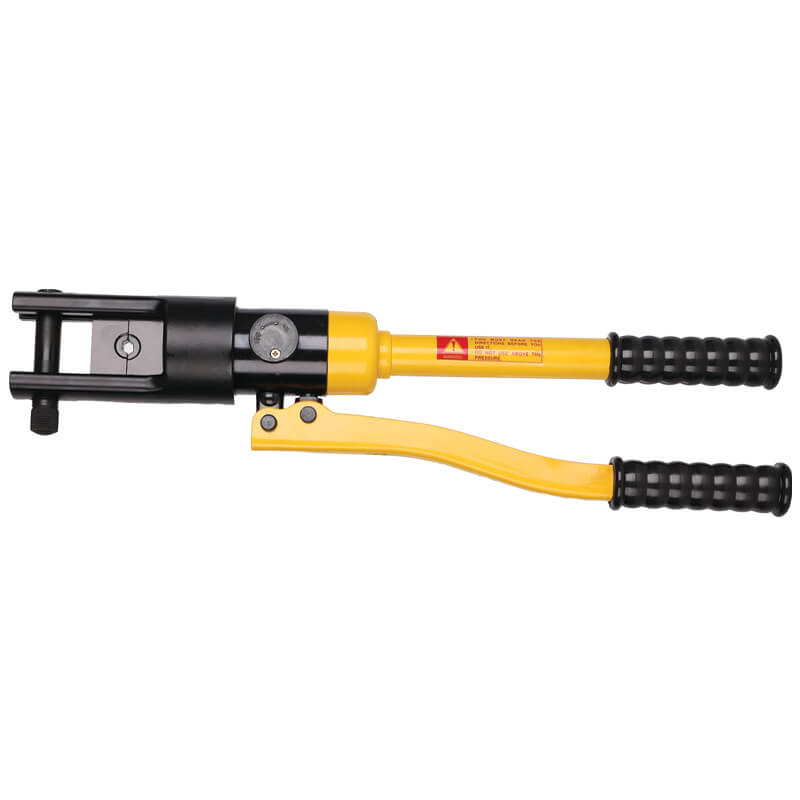

Hydraulic Crimping Tool Set 240mm MajorTech
MajorTech hydraulic crimping set features a 240mm capacity and hydraulic drive for high-force crimps. Ideal for large cable lug termination.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Major Tech HCT240 Hydraulic Crimper, Hydraulic Cable Lug Crimper, Hexagonal Hydraulic Crimping Tool
Technical Specifications
- Model: HCT240
- Crimping Force: 70kN
- Stroke: 18mm
- Crimping Type: Hexagonal
- Copper Crimping Range: 16mm² to 240mm²
- Aluminium Crimping Range: 16mm² to 185mm²
- Included Copper Dies: 16, 25, 35, 50, 70, 95, 120, 150, 185 and 240mm²
- Included Aluminium Dies: 16, 25, 35, 50, 70, 95, 120, 150 and 185mm²
- Safety System: Internal overload safety system
- Included Accessories: Hydraulic crimping tool, interchangeable dies and carrying case
- Dimensions (H x L x W): 200mm x 520mm x 90mm
- Weight: 5.92 kg
Key Features
- 70kN hydraulic force for high-force cable lug termination
- Hexagonal crimping profile for consistent compression
- Crimps copper conductors up to 240mm²
- Crimps aluminium conductors up to 185mm²
- Interchangeable dies for multiple conductor sizes
- Internal safety system helps prevent overload during operation
- Supplied with a protective carrying case
Professional Installation Requirements
- No installation is required for the tool itself. Electrical cable terminations should be performed by a suitably qualified person using the correct lug, die size and manufacturer-specified crimping technique, in accordance with applicable electrical regulations.
Applications
- Copper cable lug termination
- Aluminium cable lug termination
- Switchboard and distribution board wiring
- Battery, solar and power distribution cable connections
- Industrial electrical installation and maintenance
Environmental Benefits
- Durable hydraulic construction and replaceable dies can extend service life and reduce tool replacement waste
- Reusable carrying case helps protect the tool and accessories during transport and storage
- Manual hydraulic operation avoids batteries and associated electronic waste during use
Warranty Information
2-year warranty for tools, subject to Major Tech warranty terms, proof of purchase and applicable exclusions.
Available Now
Available through Major Tech and authorised Australian electrical distributors.
