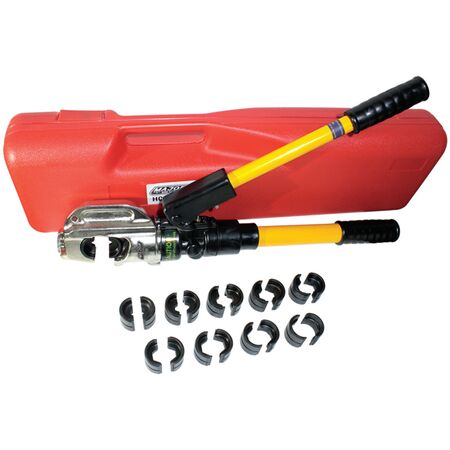

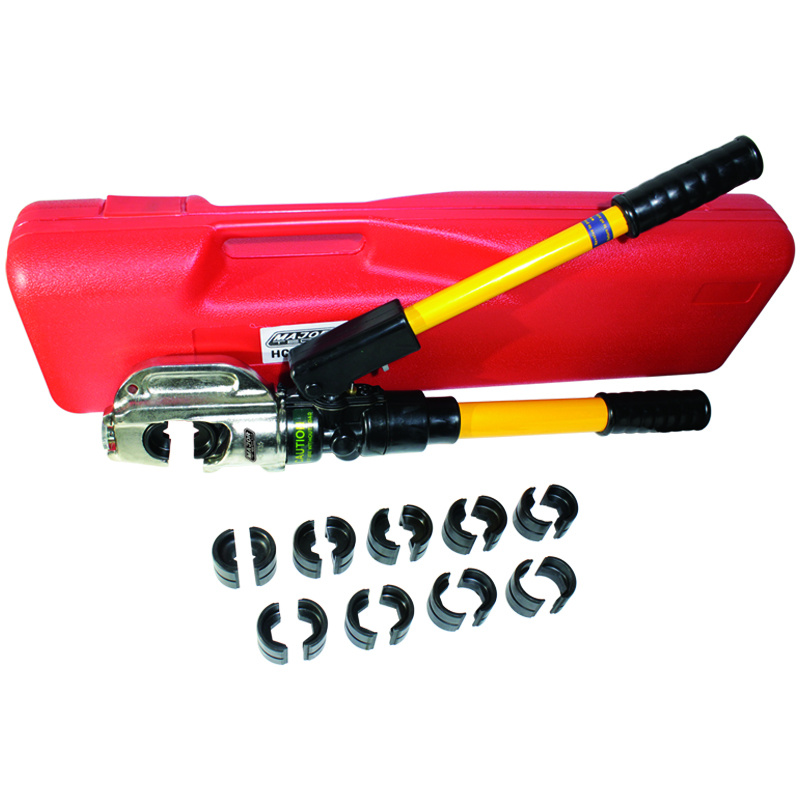

Hydraulic Crimping Tool Set MajorTech
MajorTech hydraulic crimping set features hydraulic drive and interchangeable dies for high-force crimps. Ideal for large cable lug termination.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hydraulic Cable Crimper, Hydraulic Lug Crimper, Hydraulic Hex Crimping Tool
Technical Specifications
- Product Code: HCT150
- Crimping Force: 60 kN
- Crimping Range: Copper 10–150 mm²
- Maximum Aluminium Crimping: 120 mm²
- Crimping Type: Hexagonal
- Stroke: 15 mm
- Oil Capacity: 60 cc
- Included Dies: 10, 16, 25, 35, 50, 70, 95, 120 and 150 mm²
- Kit Includes: Hydraulic crimping tool, interchangeable dies and carrying case
- Safety System: Built-in overload safety system
- Dimensions (H x L x W): 65mm x 380mm x 140mm
- Weight: 2.2 kg
Key Features
- Hydraulic drive for high-force cable termination
- Interchangeable dies for multiple conductor sizes
- Hexagonal crimp profile for compatible copper cable lugs
- Suitable for copper conductors from 10 to 150 mm²
- Supports aluminium crimping up to 120 mm²
- Built-in safety system helps prevent hydraulic overload
- Supplied with hard plastic carrying case
Professional Installation Requirements
- Use for electrical cable termination should be performed by a suitably qualified electrical tradesperson. Cable lugs and conductors must be selected and crimped in accordance with the terminal manufacturer’s instructions and the requirements of the applicable electrical installation standard, including AS/NZS 3000 where relevant.
Applications
- Crimping copper cable lugs and terminals
- Electrical switchboard and distribution wiring
- Battery, inverter and power-cable termination
- Commercial and industrial electrical installations
- Maintenance of large-conductor cable assemblies
Environmental Benefits
- Manual hydraulic operation requires no mains power or disposable batteries during use
- Interchangeable dies extend the useful life of the tool and reduce replacement waste
- Durable metal construction supports repeated professional use and longer service life
- Carrying case helps protect the tool and accessories during storage and transport
Warranty Information
MajorTech tools carry a 2-year warranty, subject to the manufacturer's warranty conditions, proof of purchase and exclusions for incorrect use, abuse, normal wear or inadequate maintenance.
Available Now
Available through MajorTech and authorised Australian distributors.
