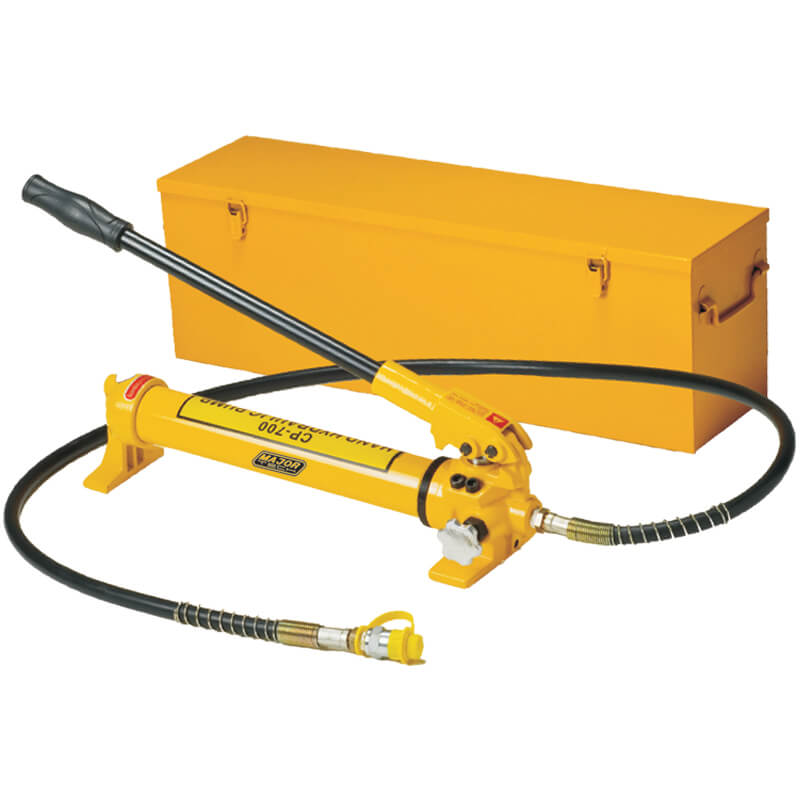

Hydraulic Pump 700kg MajorTech
MajorTech hydraulic pump features 700kg/cm output and carry case to drive crimping heads. Ideal for large cable lug crimping.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: HP700 Hydraulic Hand Pump, 700 kg/cm² Hydraulic Pump, Hydraulic Crimping Pump
Technical Specifications
- Model: HP700
- Maximum Pressure: 700 kg/cm² hydraulic pressure
- Oil Capacity: 900 cc
- Hose Length: 2 m
- Coupler: Female self-lock quick coupler
- Pump Type: Manual two-stage hydraulic pump
- Stand: Solid shaped stabilising stand
- Compatible Tool: MajorTech HCT630 hydraulic crimping tool
- Carry Case: Metal carry case included
- Dimensions (H x L x W): 180mm x 700mm x 180mm
- Weight: 9 kg
Key Features
- Designed to drive hydraulic crimping and cutting heads
- Suitable for large cable lug crimping applications
- 700 kg/cm² maximum pressure rating
- 900 cc hydraulic oil capacity
- Supplied with a 2 m pressure hose
- Female self-lock quick coupler for hydraulic tool connection
- Solid stand improves stability during operation
- Includes protective metal carry case
Applications
- Large cable lug crimping
- Electrical cable termination work
- Driving compatible hydraulic crimping heads
- Hydraulic cable cutting applications where compatible heads are used
- Commercial and industrial electrical maintenance
Environmental Benefits
- Manual operation avoids mains electricity use and battery disposal during operation
- Reusable metal pump and carry case can support a long service life and reduce replacement waste
- Metal components and the carry case are generally recyclable at end of service life
Warranty Information
MajorTech tools are covered by a 2-year extended product warranty, subject to the manufacturer’s warranty conditions, proof of purchase and any required product registration.
Available Now
Available through MajorTech and authorised Australian distributors.
