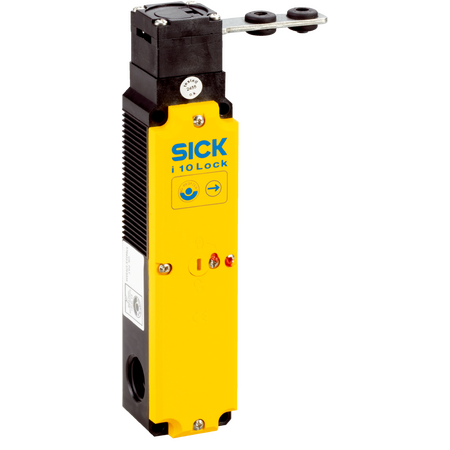

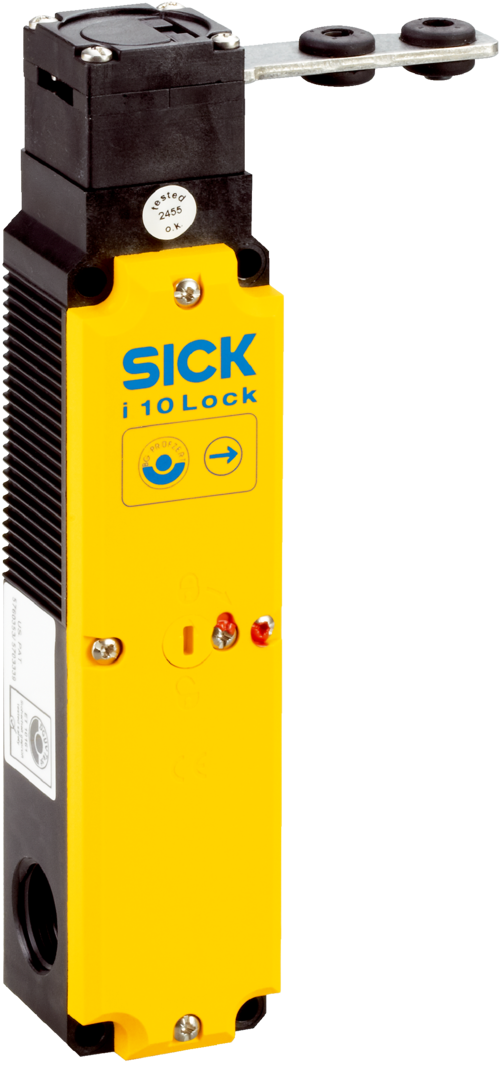

i10-E0233 Lock Electro-Mechanical Safety Interlock IP67 Rated SICK

BRAND: SICK
SKU: 6022585
$654.50 List price: $822.70
+ −
30 Days Return Electricians Unlock Trade Access
The i10-E0233 Lock is an electro-mechanical safety interlock designed for industrial applications, featuring a robust locking force of up to 1,300 N and an IP67
Technical Specifications
  • Sensor principle: Electro-mechanical
  • Locking force Fmax: 1,300 N (EN ISO 14119)
  • Locking force FZh: 1,000 N (EN ISO 14119)
  • Actuation force: ≥ 10 N
  • Retaining force: ≤ 20 N
  • Actuation frequency: ≤ 1,200 per hour
  • Actuation directions: 4
  • Approach speed: ≤ 20 m/min
  • B10d parameter: 3 x 10^6 switching cycles (small load)
  • Type: Type 2 (EN ISO 14119)
  • Actuator coding level: Low coding level (EN ISO 14119)
  • Connection type: Cable gland, 3 x M20
  • Conductor cross section: 0.34 mm² to 1.5 mm²
  • Contamination rating: 3
  • Switching principle: Slow action switching element
  • Usage category: AC-15/DC-13 (IEC 60947-5-1)
  • Rated operating current: 4 A (230 V AC), 4 A (24 V DC)
  • Rated insulation voltage Ui: 250 V
  • Rated impulse withstand voltage Uimp: 2,500 V
  • Type of output: Electro-mechanical contacts
  • Power consumption: ≤ 8 W
  • Short-circuit protection: 4 A gG
  • Switching voltage: ≥ 12 V DC
  • Switching current: 1 mA (24 V DC)
  • Solenoid operating voltage: 20.4 V DC to 26.4 V DC
  • Switch-on time of magnet: 100%
  • Housing material: Glass-fiber reinforced thermoplastic
  • Mechanical life: 1 x 10^6 switching cycles
  • Enclosure rating: IP67 (IEC 60529)
  • Ambient operating temperature: -20°C to +55°C
  • Storage temperature: -20°C to +55°C
  • Dimensions (H x L x W): 120mm x 80mm x 60mm
  • Weight: 0.46 kg
Key Features
  • Electro-mechanical sensor principle with power to lock locking principle
  • Locking force up to 1,300 N compliant with EN ISO 14119
  • Multiple monitoring contacts including 2 positive action N/C solenoid and 1 N/O solenoid contacts
  • Durable mechanical life of 1 million switching cycles
  • IP67 rated enclosure for protection against dust and water
  • Operating temperature range from -20°C to +55°C
  • Low coding level actuator compliant with EN ISO 14119
  • Safe state fault detection performed by connected safety logic unit
Professional Installation Requirements
  • Installation by a qualified professional is recommended to ensure compliance with safety standards and proper integration with safety logic units.
Applications
  • Industrial safety locking applications
  • Machine guarding and access control
  • Safety interlocking in manufacturing environments
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable design reduces replacement frequency and waste
  • Low power consumption of ≤ 8 W enhances energy efficiency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK i10-E0233 Lock is available for immediate purchase, ideal for industrial safety locking and access control applications.
