ICI890-23010 | Reflectors and optics

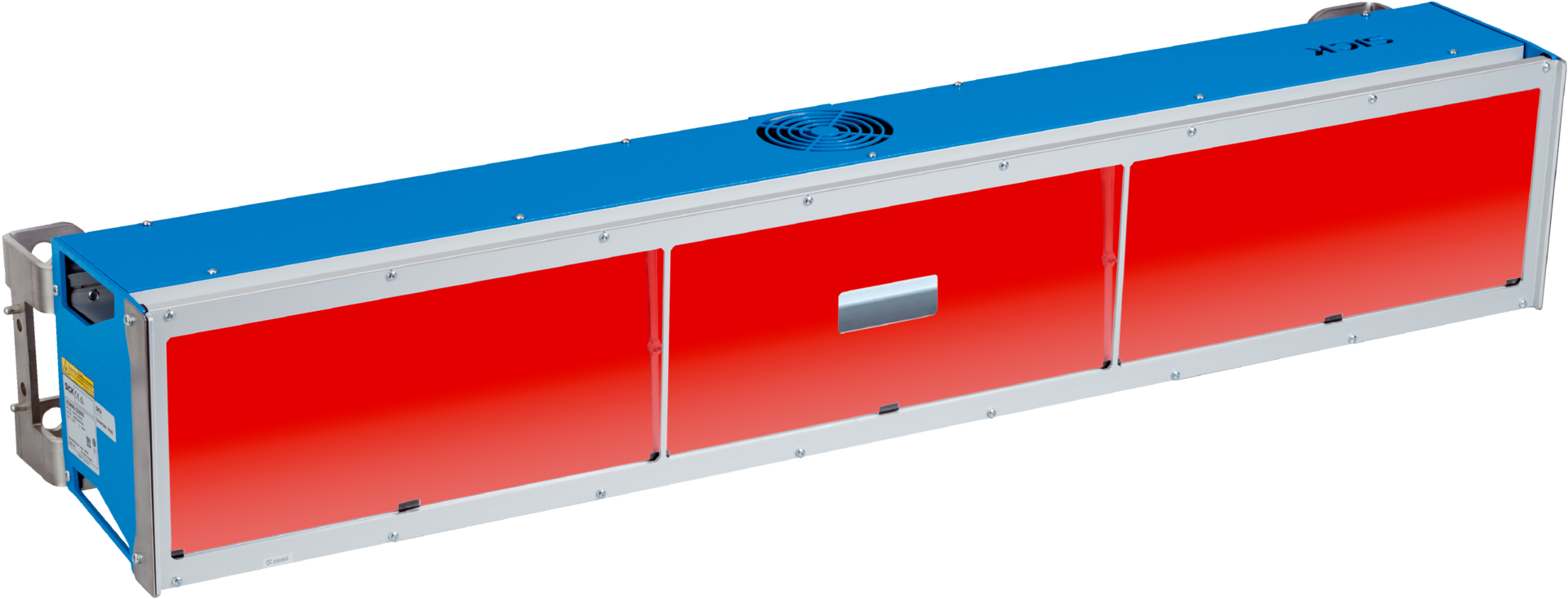

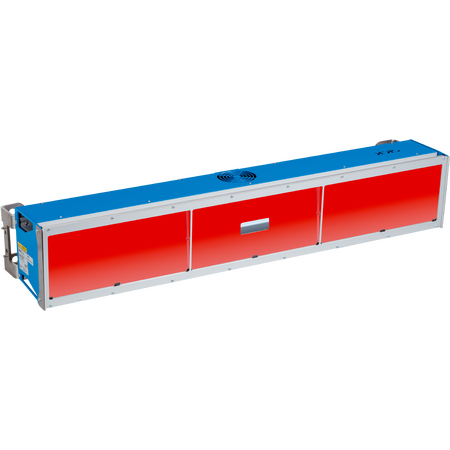

The SICK ICI890-23010 is an LED illumination reflector designed for indoor use with ICD89x sensor systems, providing visible red light at 630 nm for precise and safe illumination.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ICI890-23010 | Reflectors and optics
Brand: SICK
SKU: 1098818
Alternatively Known As: LED Illumination Reflector, ICD89x Illumination, Red Light Reflector, SICK LED Optics
Technical Specifications
- Light source: Visible red light, 630 nm
- LED class: Risk group 1
- Supply voltage: 24 V DC, ±20%
- Connection type: M12
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: –20 °C to +70 °C
- Permissible relative humidity: 95%, non-condensing
- Degree of contamination: 2 (EN 61010-1)
- Maximum altitude: < 2,000 m above sea level
- Dimensions (H x L x W): 100mm x 1150mm x 1150mm
- Weight: 20.5 kg
Key Features
- Visible red light source at 630 nm wavelength
- LED class Risk group 1 for safe operation
- Supply voltage 24 V DC with ±20% tolerance
- M12 connection interface
- Suitable for ambient operating temperatures from 0 °C to +50 °C
- Designed for non-condensing environments with up to 95% relative humidity
- Altitude operation up to 2,000 m above sea level
- Complies with contamination degree 2 (EN 61010-1)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and optical equipment to ensure safety and optimal performance.
Applications
- Indoor area illumination for industrial and automation environments
- Use with ICD89x sensor systems requiring visible red light illumination
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifespan minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ICI890-23010 LED Illumination Reflector is available for immediate purchase, ideal for indoor industrial and automation applications requiring precise visible red light illumination.
