ICL300-F222-Set01-(red) | Reflectors and optics

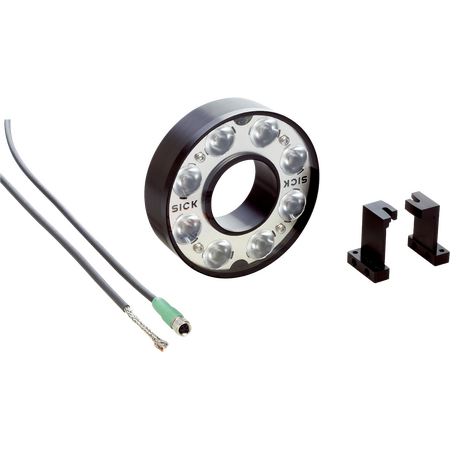

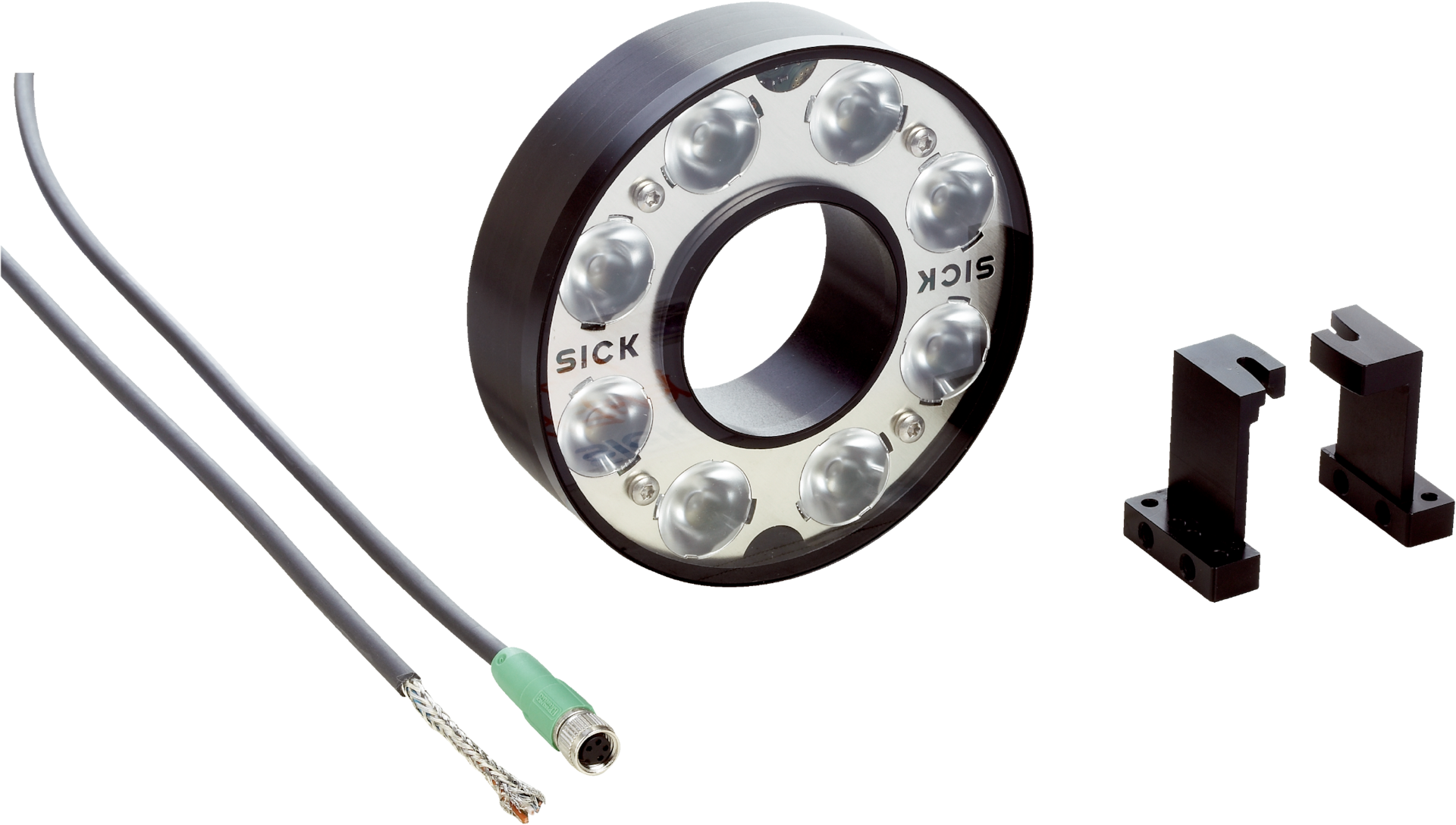

The SICK ICL300-F222-Set01 is a red LED ring lighting reflector designed for bright field illumination in industrial and machine vision applications, featuring a lighting distance of 0.2 to 2 meters and including mounting accessories.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ICL300-F222-Set01-(red) | Reflectors and optics
Brand: SICK
SKU: 1047879
Alternatively Known As: Red LED Ring Light, Bright Field LED Illuminator, ICL300-F222-Set01 Reflector
Technical Specifications
- Product segment: Reflectors and optics
- Product: Illuminations
- Product version: LED
- Lighting color: Red
- Lighting distance: 0.2 m to 2 m
- Includes mounting bracket, screws, and 2 m connection cable
- LED class: Risk group 1 (low risk, IEC62471:2006)
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 0.5 kg
Key Features
- Ring lighting with bright field illumination
- Red LED lighting color
- Lighting distance from 0.2 m to 2 m
- Includes mounting bracket, screws, and 2 m connection cable
- LED class: Risk group 1 (low risk, IEC62471:2006)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connections.
Applications
- Industrial automation lighting
- Machine vision systems
- Bright field illumination for sensors and cameras
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifespan minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for specific warranty details.
Available Now
The SICK ICL300-F222-Set01 Red LED Ring Lighting Reflector is available for immediate purchase, ideal for industrial and machine vision lighting applications.
