IH06-04NNS-VTK | Inductive proximity sensors

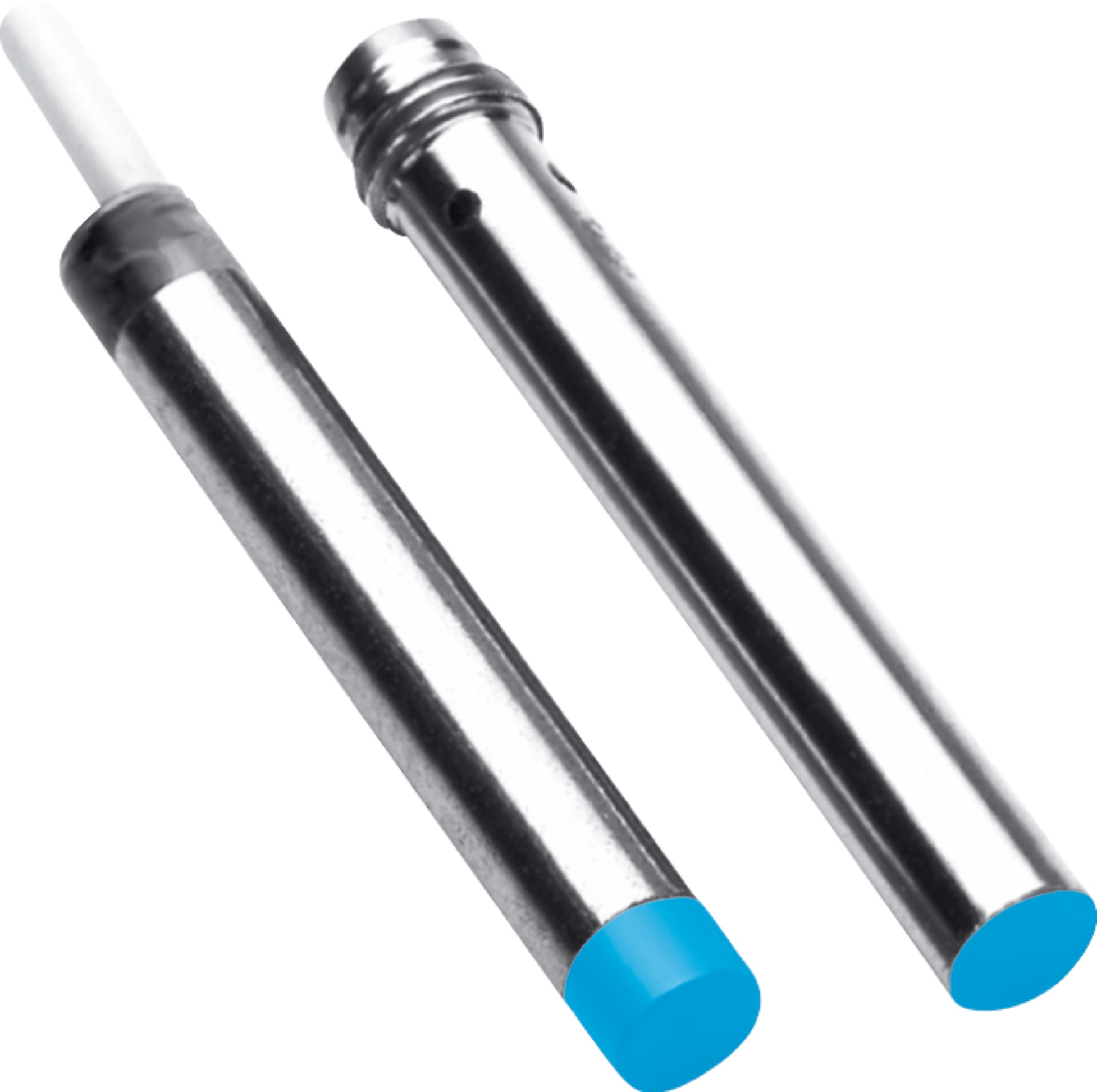

The SICK IH06-04NNS-VTK is a compact inductive proximity sensor with a 4 mm sensing range, designed for reliable non-contact detection in industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IH06-04NNS-VTK | Inductive proximity sensors
Brand: SICK
SKU: 6025883
Alternatively Known As: Inductive Proximity Sensor, Proximity Switch, Metal Proximity Sensor, NPN Proximity Sensor, Short Body Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- EMC compliant with EN 60947-5-2 and IEC 61000-4-2/4-4
- Operating temperature range: -25 °C to +70 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic (POM)
- Switching output: NPN, normally open (NO)
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Dimensions (H x L x W): 6.5mm x 40mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Short-body housing with Ø 6.5 mm diameter
- Non-flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- High switching frequency of 2,500 Hz
- NPN normally open (NO) switching output
- Connector M8, 3-pin connection type
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Stainless steel V2A housing with plastic POM sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in production processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable stainless steel housing extends product lifespan
- Energy-efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IH06-04NNS-VTK Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
