IH06-04NPS-VT1 | Inductive proximity sensors

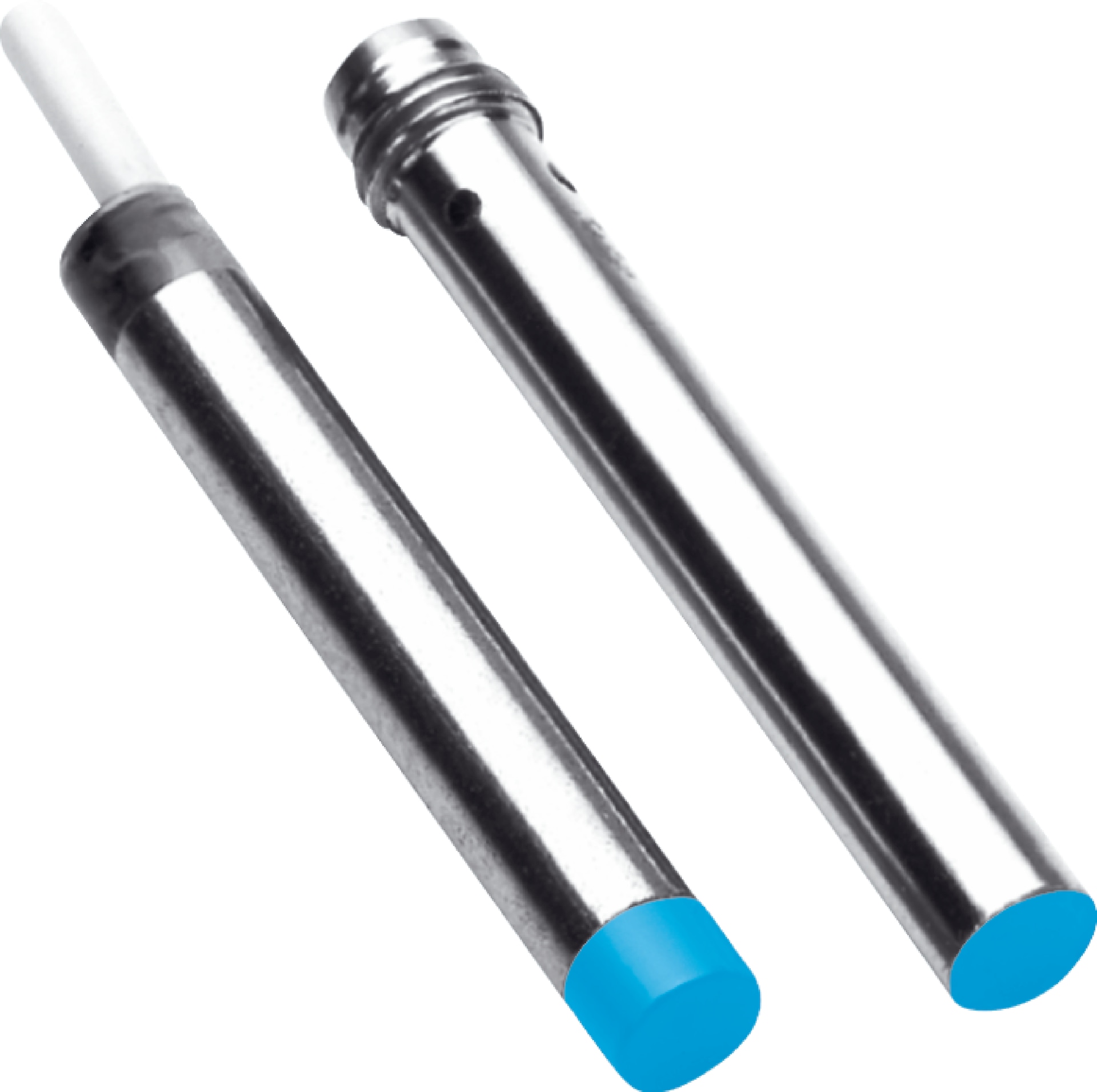

The SICK IH06-04NPS-VT1 is a robust inductive proximity sensor featuring a 4 mm sensing range, stainless steel housing, and IP67 protection, ideal for industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IH06-04NPS-VT1 | Inductive proximity sensors
Brand: SICK
SKU: 7900183
Alternatively Known As: Inductive Proximity Sensor, Proximity Switch, Inductive Sensor, Non-flush Proximity Sensor, PNP Proximity Sensor
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: 6.5 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Installation type: Non-flush
- Switching frequency: 1,800 Hz
- Connection type: Connector M8, 3-pin
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC compliance: EN 60947-5-2, IEC 61000-4-2 (Test level 2), IEC 61000-4-4 (Test level 3)
- Continuous current Ia: ≤ 200 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Sensing face material: Plastic, POM
- Housing length: 50 mm
- UL File No.: NMFT2.E175606
- Dimensions (H x L x W): 6.5mm x 50mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Non-flush installation type with 4 mm sensing range
- High switching frequency of 1,800 Hz
- Connector M8, 3-pin connection type
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Safety and control systems requiring proximity detection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IH06-04NPS-VT1 Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
