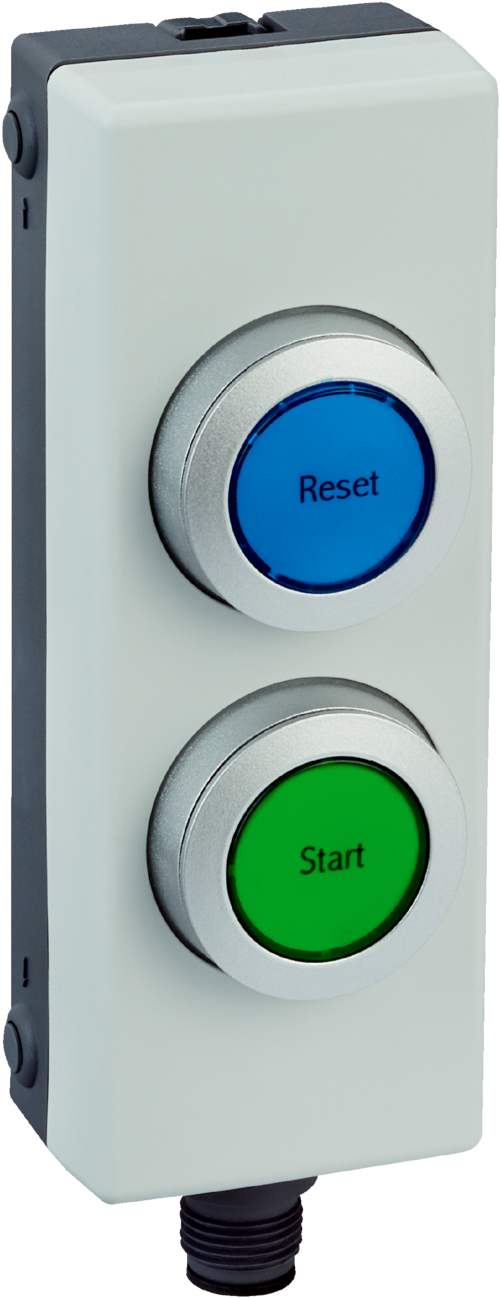

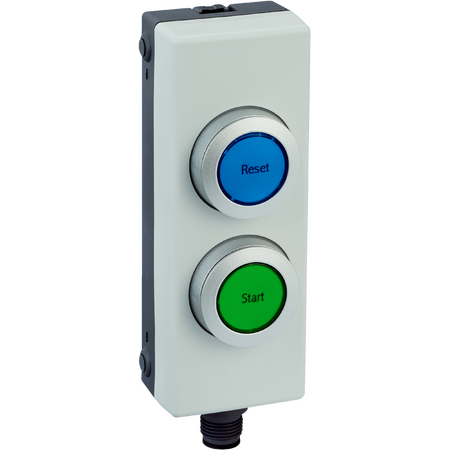

Illuminated Push Button Switch 2 Normally Open Contacts IP65 Rated SICK

BRAND: SICK
SKU: 6051321
$496.80 List price: $624.50
+ −
30 Days Return Electricians Unlock Trade Access
The illuminated push button switch ER12-SD5E8 features 2 normally open contacts and an IP65 rated enclosure
Technical Specifications
  • 2 normally open contacts
  • Pushbutton is illuminable
  • Actuation directions: 1
  • Power consumption: ≤ 250 W
  • Rated operating current: 5 mA to 100 mA (5 V to 30 V)
  • Contact material: Silver Nickel with 5 µm gold plating
  • Electrical life: 1 million switching cycles
  • Mechanical life: 1 million switching cycles
  • Supply voltage for illumination: 30 V AC/DC
  • Power consumption for illumination: 14 mA at 24 V DC
  • Connection type: Plug connector, M12, 8-pin
  • Coupling nut material: PBT
  • Protection class: III (EN 61140)
  • Enclosure rating: IP65 (EN 60529)
  • Ambient operating temperature: -25 °C to +70 °C
  • Storage temperature: -25 °C to +80 °C
  • Housing material: PBT
  • Dimensions (H x L x W): 123mm x 36mm x 40mm
  • Weight: 0.116 kg
Key Features
  • 2 normally open (N/O) contacts
  • Illuminable pushbutton for clear status indication
  • Single actuation direction
  • Includes brackets, 6 cover caps in multiple colors, and 8 labeled uses
  • Slow action switching element
  • Plug connector M12, 8-pin with PBT coupling nut
  • Protection class III (EN 61140)
  • Electrical life of 1 million switching cycles
  • Mechanical life of 1 million switching cycles
  • IP65 rated enclosure for dust and water protection
  • Wide ambient operating temperature range from -25°C to +70°C
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
  • Industrial control panels
  • Machine safety systems
  • Automation equipment requiring illuminated pushbutton controls
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Low power consumption with 14 mA at 24 V DC illumination
  • Durable design reduces waste through extended product life
  • Complies with China-RoHS for hazardous substance restrictions
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK ER12-SD5E8 Illuminable Pushbutton is available for immediate purchase, ideal for industrial and automation control applications.
