IMB08-02BNSVU2K | Inductive proximity sensors

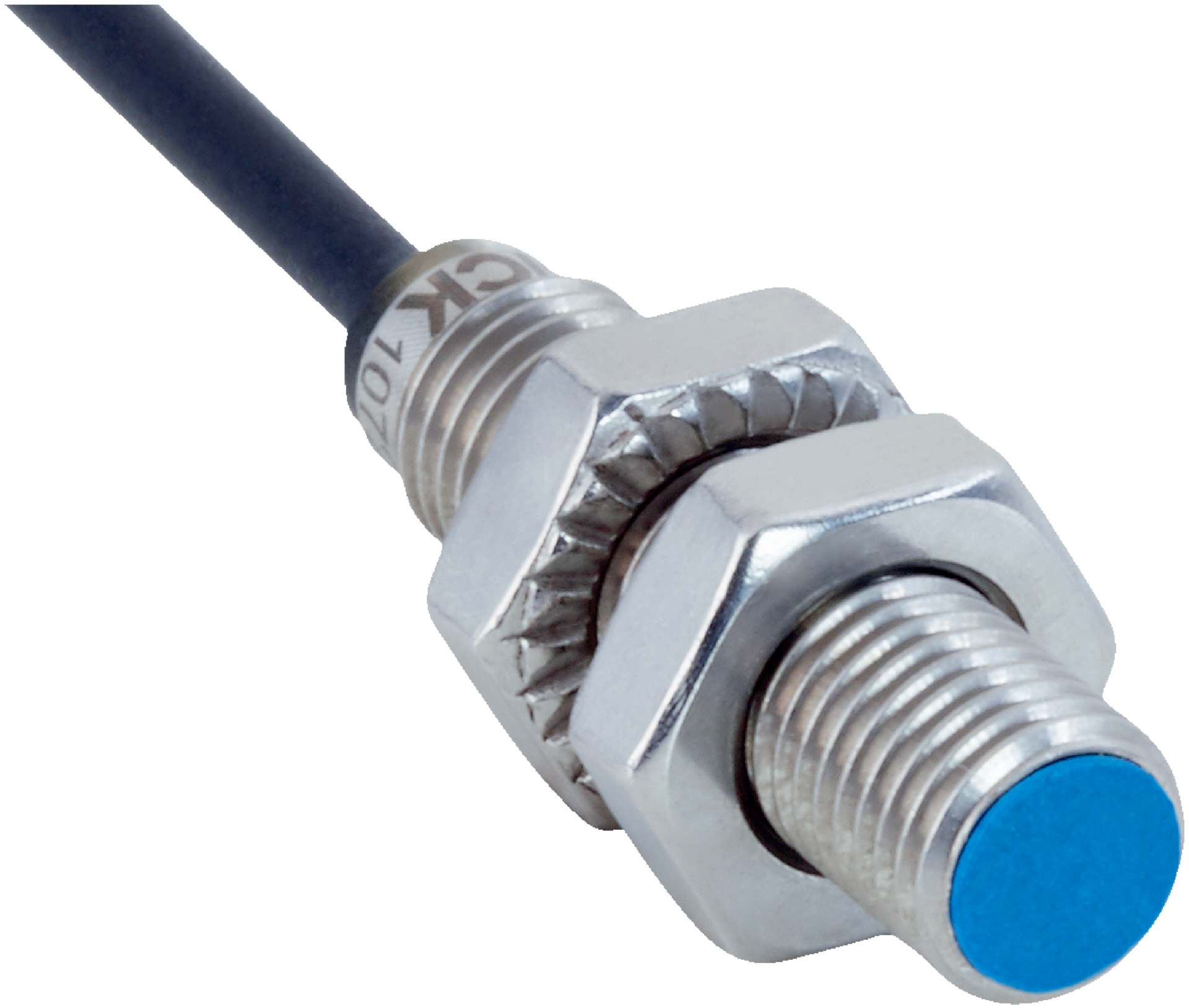

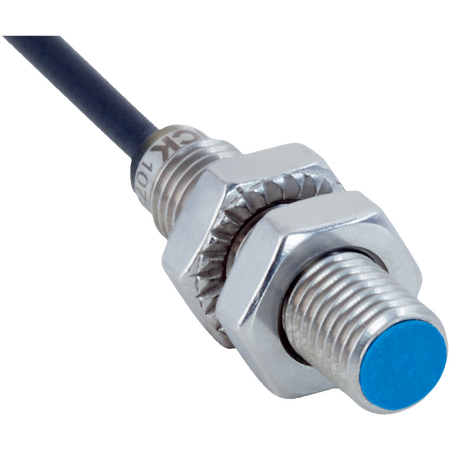

The SICK IMB08-02BNSVU2K is a robust inductive proximity sensor with M8 thread, designed for reliable object detection in harsh industrial environments including zones with coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IMB08-02BNSVU2K | Inductive proximity sensors
Brand: SICK
SKU: 1072699
Alternatively Known As: M8 Inductive Proximity Sensor, Short Body Proximity Sensor, NPN Proximity Sensor, Flush Mount Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter 3 mm, conductor size 0.14 mm²
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 15 g
- Ambient operating temperature: -40 °C to +100 °C
- Protection class: III
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 32mm x 32mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M8 x 1 thread size
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type
- High switching frequency of 4000 Hz
- NPN normally open switching output
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP68 and IP69K for harsh environments
- Resistant against coolant lubricants and temperature resistant
- Visual adjustment indicator for easy setup
- Shock and vibration resistant with high durability
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of plastic LCP
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Mobile machines operating in harsh environments
- Zones with coolant lubricants and difficult application conditions
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to harsh environments minimizes sensor failure and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK IMB08-02BNSVU2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
