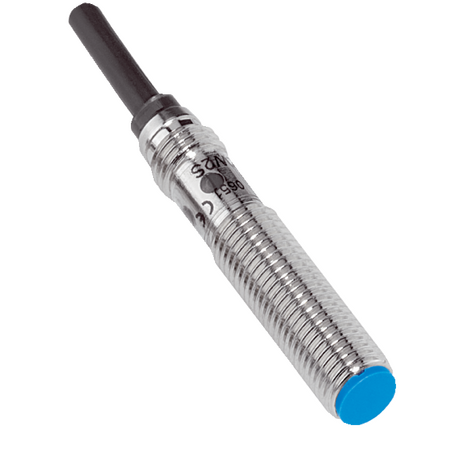

IME08-03BNSZW2K | Inductive proximity sensors

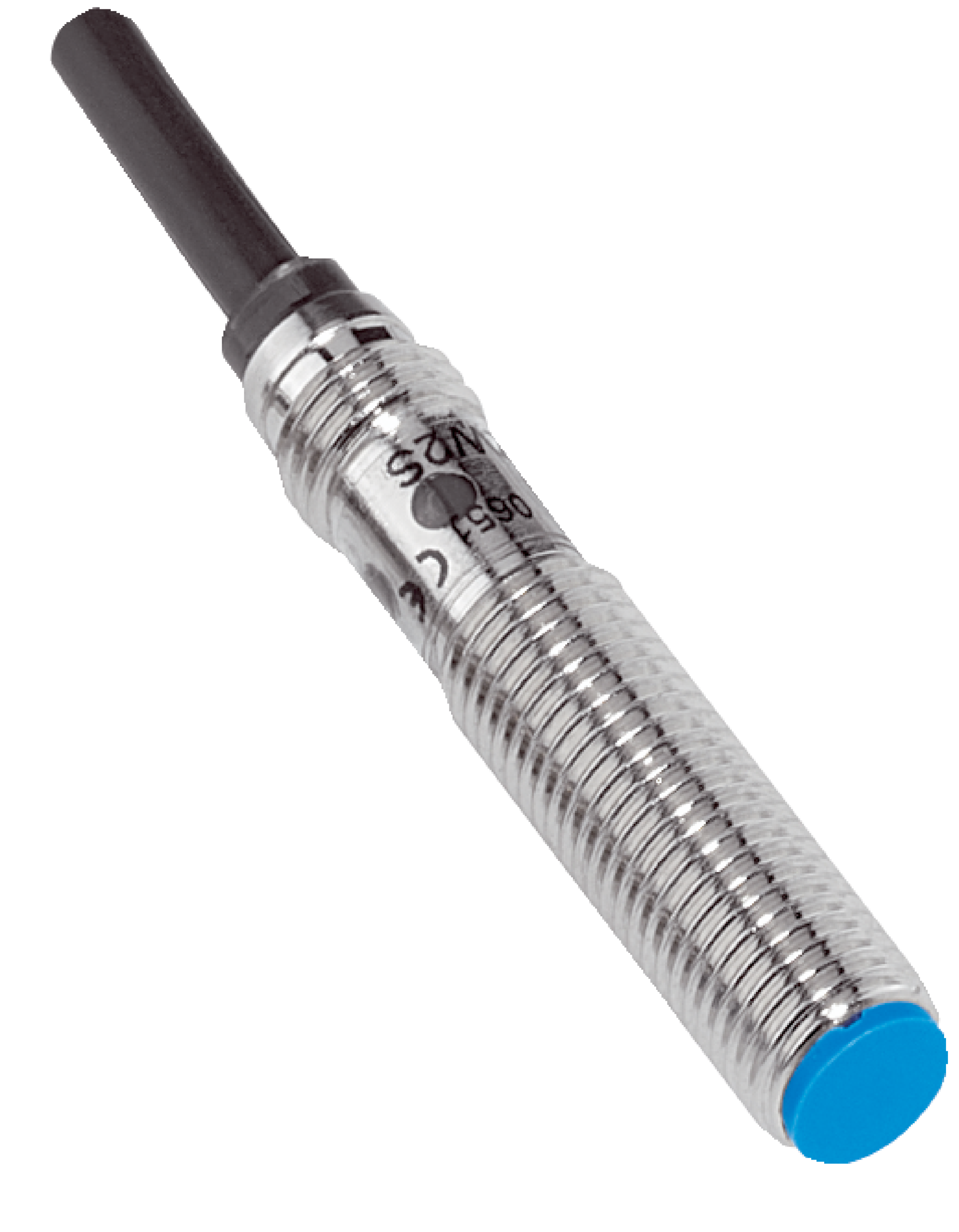

The SICK IME08-03BNSZW2K is a short-body inductive proximity sensor with a 3 mm sensing range, designed for reliable metal detection in industrial automation applications. It features a robust brass nickel-plated housing and IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME08-03BNSZW2K | Inductive proximity sensors
Brand: SICK
SKU: 1074009
Alternatively Known As: Inductive Proximity Sensor M8, IME08 Proximity Sensor, SICK Proximity Sensor, Metal Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 1,000 Hz
- Switching output: NPN, normally open
- Electrical wiring: DC 3-wire
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable: PVC, 3-wire, 2 m length, diameter Ø 3.9 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 8mm x 43mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M8 x 1 thread size
- Sensing range of 3 mm with safe sensing range of 2.43 mm
- Quasi-flush installation type
- High switching frequency of 1,000 Hz
- NPN normally open (NO) switching output
- Cable connection, 3-wire, 2 meters long
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Mounting nut included (brass, nickel-plated)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation sensor systems to ensure proper mounting and wiring according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME08-03BNSZW2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
