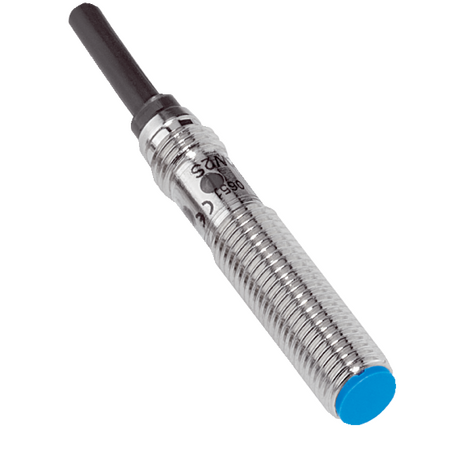

IME08-03BPSZW2K | Inductive proximity sensors

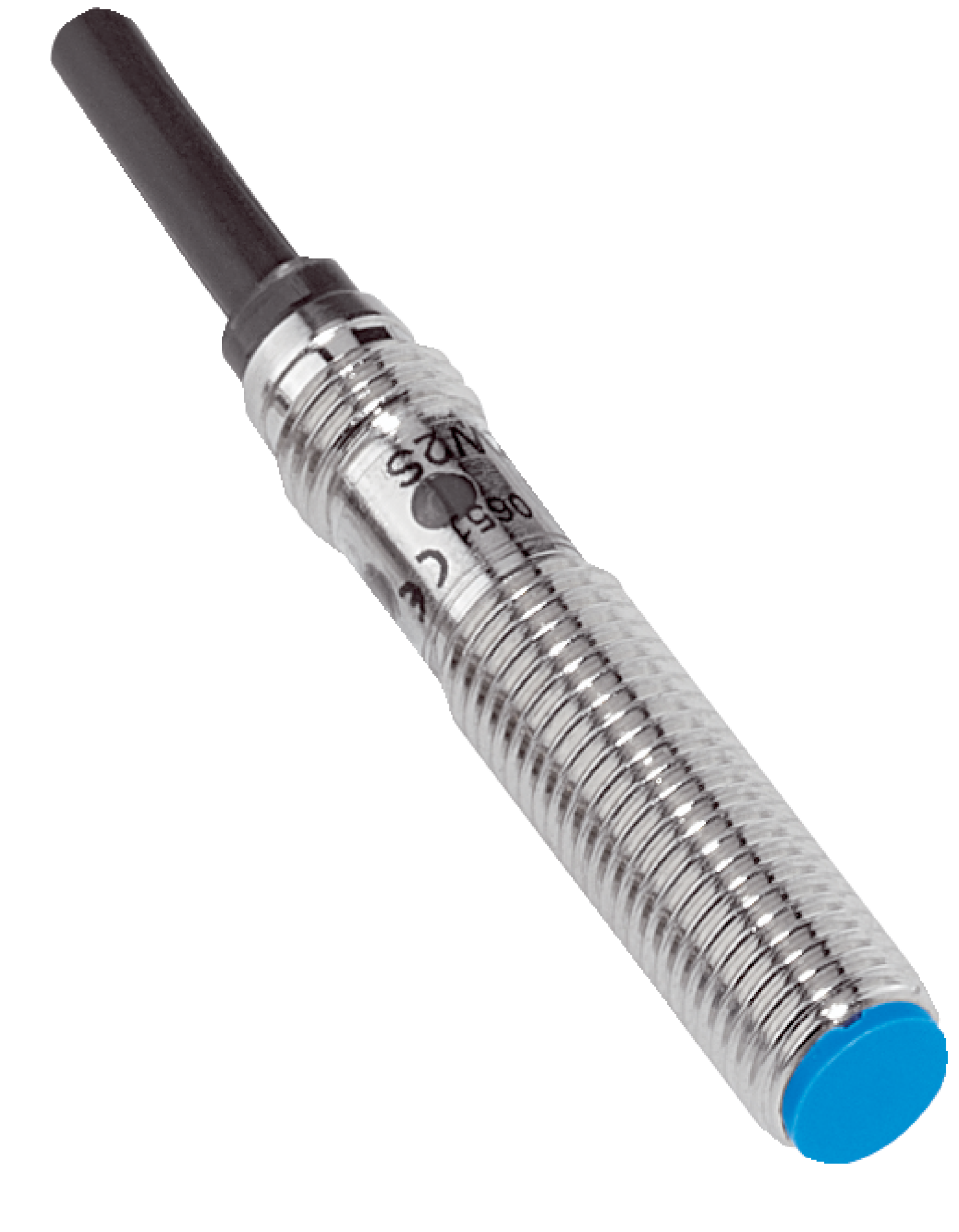

The SICK IME08-03BPSZW2K is a short-body inductive proximity sensor with M8 x 1 thread, 3 mm sensing range, and IP67 protection, ideal for precise metal object detection in industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME08-03BPSZW2K | Inductive proximity sensors
Brand: SICK
SKU: 1074007
Alternatively Known As: M8 Inductive Proximity Sensor, Short Body Proximity Sensor, PNP Inductive Sensor, 3mm Sensing Range Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 1,000 Hz
- Switching output: PNP, normally open
- Electrical wiring: DC 3-wire
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable: PVC, 3-wire, 2 m length, 0.25 mm² conductor size, 3.9 mm diameter
- Enclosure rating: IP67
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Operating temperature: -25 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Time delay before availability: ≤ 50 ms
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 8mm x 43mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M8 x 1 thread size
- Sensing range of 3 mm with safe sensing range of 2.43 mm
- Quasi-flush installation type
- High switching frequency of 1,000 Hz
- PNP normally open switching output
- Cable connection, 3-wire, 2 meters long
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Includes two brass, nickel-plated mounting nuts
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to industrial safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing with nickel plating for long service life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME08-03BPSZW2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
