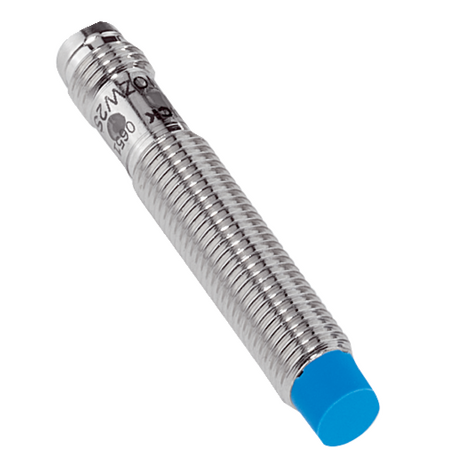

IME08-06NNOZT0S | Inductive proximity sensors
The SICK IME08-06NNOZT0S is an inductive proximity sensor with M8 x 1 thread, 6 mm sensing range, and IP67 protection, ideal for industrial automation and non-contact object detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME08-06NNOZT0S | Inductive proximity sensors
Brand: SICK
SKU: 1071211
Alternatively Known As: Inductive Proximity Sensor M8, Non-flush Proximity Sensor, NPN Proximity Sensor, SICK IME08 Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC compliant according to EN 60947-5-2
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Operating temperature range: -25 °C to +75 °C
- Storage temperature range: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 30 mm
- Tightening torque max: ≤ 5 Nm
- Switching output: NPN normally closed
- Connection type: M8 connector, 3-pin
- Dimensions (H x L x W): 50mm x 50mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M8 x 1 with 8 mm diameter sensing face
- Sensing range of 6 mm with safe sensing range of 4.86 mm
- Non-flush installation type
- Switching frequency up to 500 Hz
- NPN normally closed output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Includes two brass, nickel-plated mounting nuts
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct wiring and mounting torque compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Safety and control systems requiring non-flush sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact sensing reduces mechanical wear and tear, extending equipment life
- Durable IP67 housing minimizes replacement frequency, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME08-06NNOZT0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and control applications.
