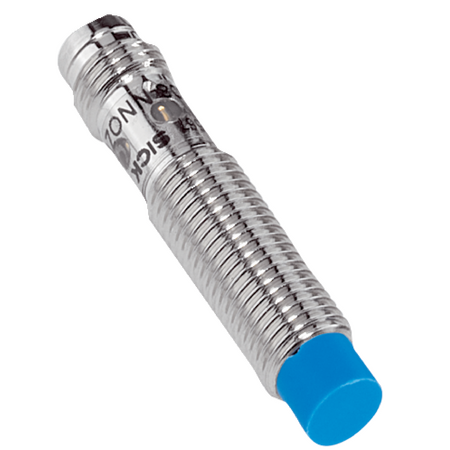

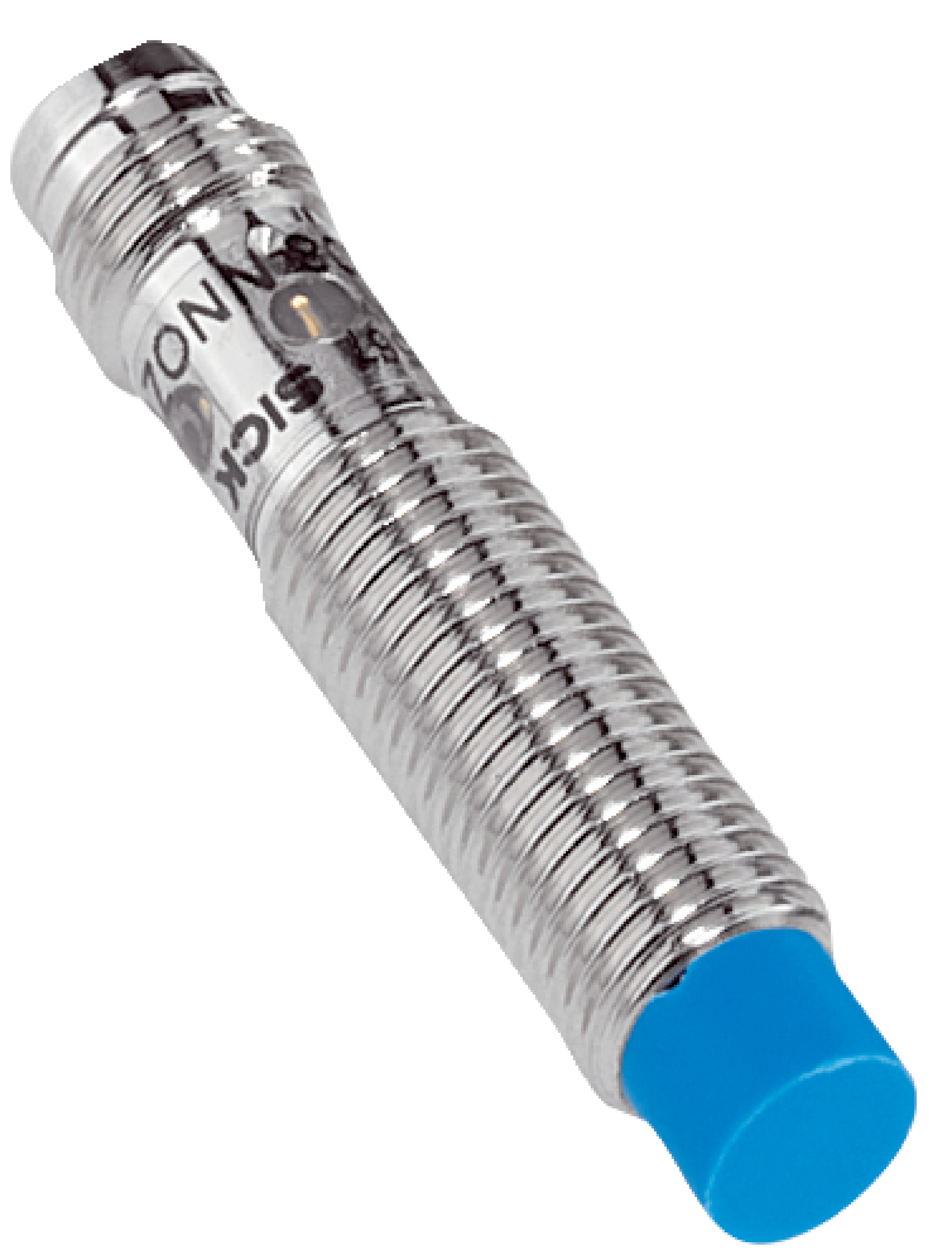

IME08-06NNSZT0K | Inductive proximity sensors
The SICK IME08-06NNSZT0K is a compact M8 inductive proximity sensor with a 6 mm sensing range, designed for reliable non-contact detection in industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME08-06NNSZT0K | Inductive proximity sensors
Brand: SICK
SKU: 1071202
Alternatively Known As: M8 Inductive Proximity Sensor, IME08 Proximity Sensor, SICK Proximity Sensor M8, 6mm Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Connection type: Connector M8, 3-pin
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Enclosure rating: IP67
- Switching frequency: 500 Hz
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 41mm x 41mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body M8 threaded housing with 8 mm diameter
- Non-flush installation type with 6 mm sensing range
- NPN normally open (NO) switching output with 3-wire DC electrical wiring
- High switching frequency of 500 Hz
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Includes mounting nuts, brass, nickel-plated (2x)
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Safety and monitoring systems in factories
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable IP67 housing extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME08-06NNSZT0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and machinery sensing applications.
