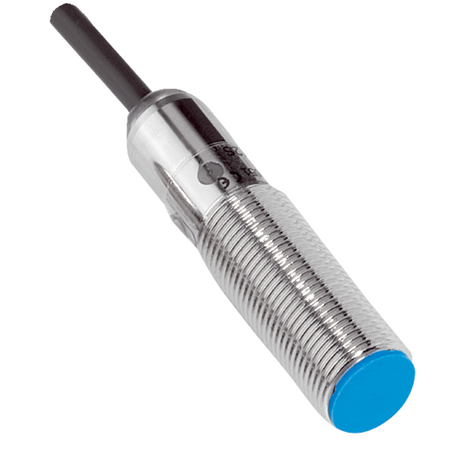

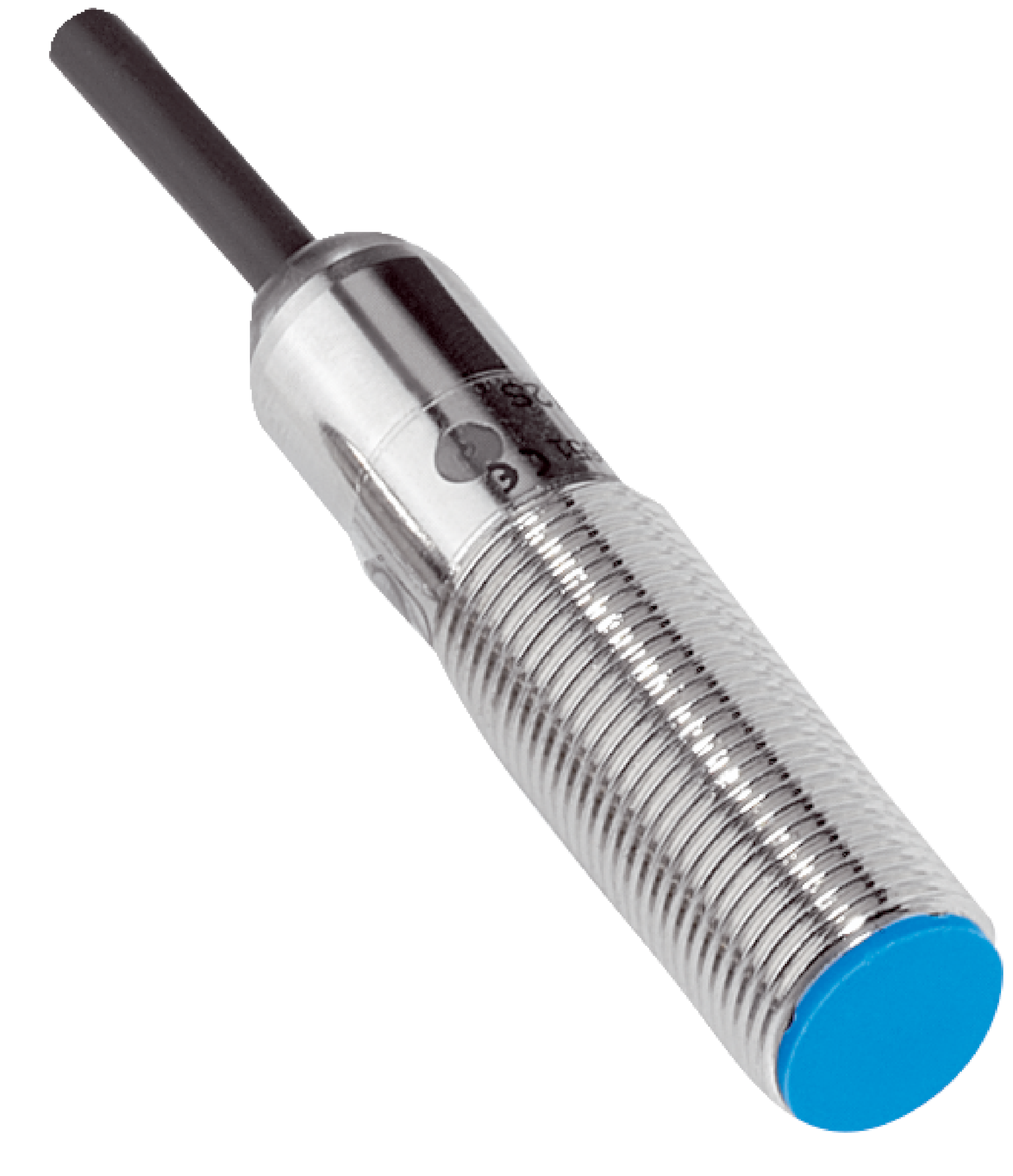

IME12-04BPSZW2K | Inductive proximity sensors
The SICK IME12-04BPSZW2K is a compact inductive proximity sensor with a 4 mm sensing range, designed for flush mounting in industrial automation applications. It features robust brass housing, IP67 protection, and high switching frequency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME12-04BPSZW2K | Inductive proximity sensors
Brand: SICK
SKU: 1040765
Alternatively Known As: Inductive Proximity Sensor M12, IME12 Proximity Sensor, SICK Proximity Sensor, M12 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Conductor size: 0.25 mm²
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 29 mm
- Tightening torque max: ≤ 12 Nm
- Switching output: PNP, normally open
- Connection type: Cable, 3-wire, 2 m
- Enclosure rating: IP67
- Dimensions (H x L x W): 44mm x 44mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Flush installation type
- High switching frequency of 2,000 Hz
- PNP normally open switching output
- Cable connection, 3-wire, 2 meters long
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Wide operating temperature range from -25 °C to +75 °C
- Brass nickel-plated housing with plastic PA 66 sensing face
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation equipment requiring flush mounting sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME12-04BPSZW2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring reliable object detection.
