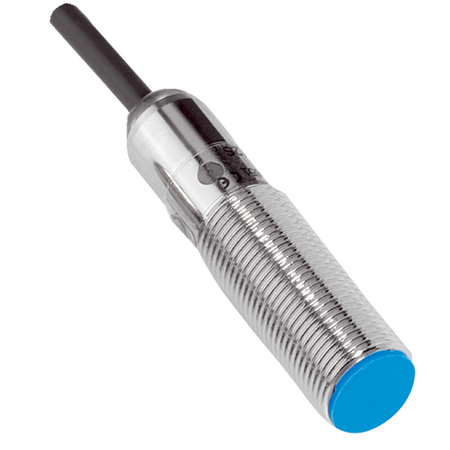

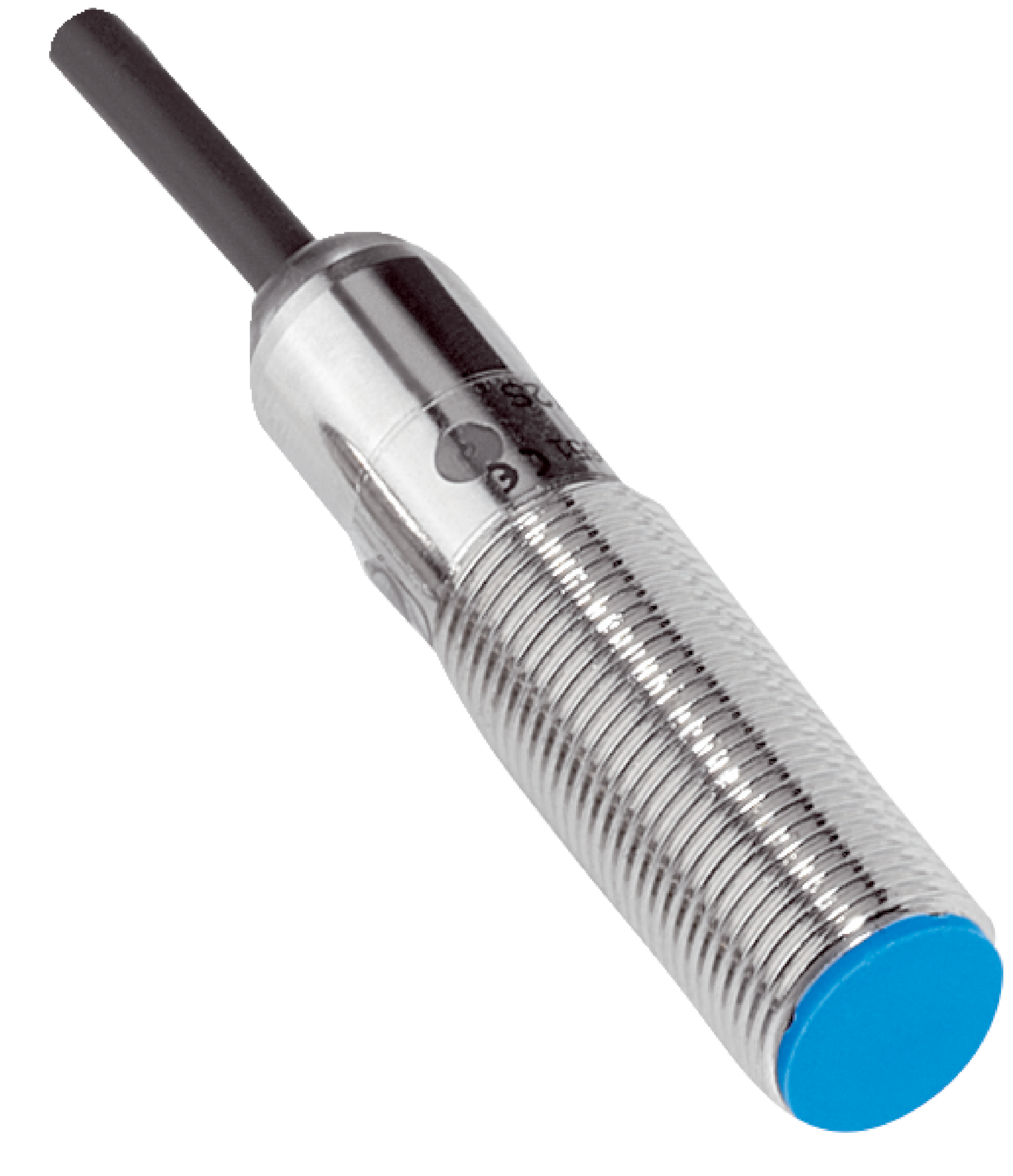

IME12-06BNSZW2K | Inductive proximity sensors
The SICK IME12-06BNSZW2K is a short-body M12 inductive proximity sensor with a 6 mm sensing range, designed for reliable metal object detection in industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME12-06BNSZW2K | Inductive proximity sensors
Brand: SICK
SKU: 1071216
Alternatively Known As: Inductive Proximity Sensor M12, Metal Proximity Sensor, NPN Proximity Switch, Short Body Proximity Sensor
Technical Specifications
- Thread size: M12 x 1
- Diameter: 12 mm
- Sensing range Sn: 6 mm
- Safe sensing range Sa: 4.86 mm
- Switching frequency: 800 Hz
- Connection type: Cable, 3-wire, 2 m length
- Switching output: NPN, Normally Open (NO)
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Housing length: 44 mm
- Thread length: 29 mm
- Max tightening torque: ≤ 12 Nm
- Dimensions (H x L x W): 44mm x 44mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body M12 threaded housing with 6 mm sensing range
- Quasi-flush installation type for versatile mounting
- High switching frequency of 800 Hz for fast response
- NPN normally open (NO) switching output with DC 3-wire wiring
- IP67 rated enclosure for dust and water protection
- Triple sensing range for enhanced detection reliability
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and mounting according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass nickel-plated housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- RoHS compliant, free from hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME12-06BNSZW2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
