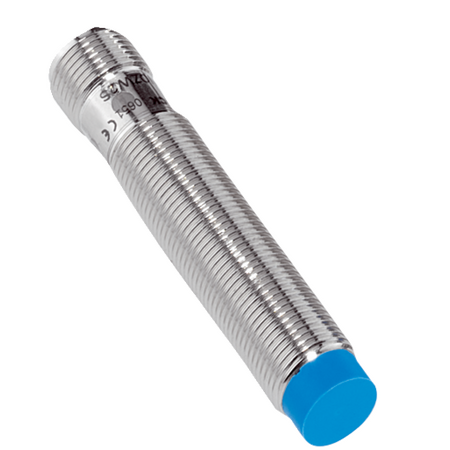

IME12-08NNOZC0S | Inductive proximity sensors
The SICK IME12-08NNOZC0S is a robust inductive proximity sensor with an 8 mm sensing range, designed for industrial automation and control applications with high switching frequency and IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME12-08NNOZC0S | Inductive proximity sensors
Brand: SICK
SKU: 1040826
Alternatively Known As: Inductive Proximity Sensor M12, IME12 Sensor, NPN Proximity Switch, Non-flush Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: NPN normally closed
- Connection type: Male connector M12, 4-pin
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design with M12 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Non-flush installation type
- High switching frequency of 2,000 Hz
- NPN normally closed output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Includes mounting nuts, brass, nickel-plated (2x)
- Short-circuit and power-up pulse protection
- Shock and vibration resistant up to 30 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Long service life reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME12-08NNOZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and control applications.
