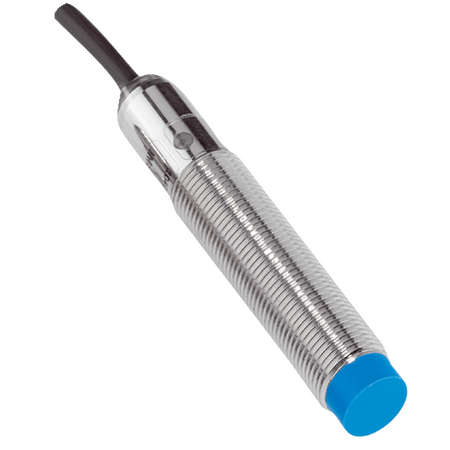

IME12-08NNOZW2S | Inductive proximity sensors
The SICK IME12-08NNOZW2S is an inductive proximity sensor with an 8 mm sensing range, M12 threaded brass housing, and IP67 protection, ideal for industrial automation and metal detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME12-08NNOZW2S | Inductive proximity sensors
Brand: SICK
SKU: 1040793
Alternatively Known As: Inductive Proximity Sensor M12, IME12 Proximity Sensor, NPN Proximity Switch, Non-flush Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 2,000 Hz
- Switching output: NPN normally closed
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable: PVC, 3-wire, 2 m length, 0.25 mm² conductor size
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm amplitude
- Operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread size: M12 x 1
- Enclosure rating: IP67
- Dimensions (H x L x W): 63mm x 63mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Non-flush installation type
- High switching frequency of 2,000 Hz
- NPN normally closed switching output
- Cable connection, 3-wire, 2 meters length
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature from -25 °C to +75 °C
- Housing made of brass, nickel-plated with plastic sensing face
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and mounting according to industrial safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- RoHS compliant reducing hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME12-08NNOZW2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
