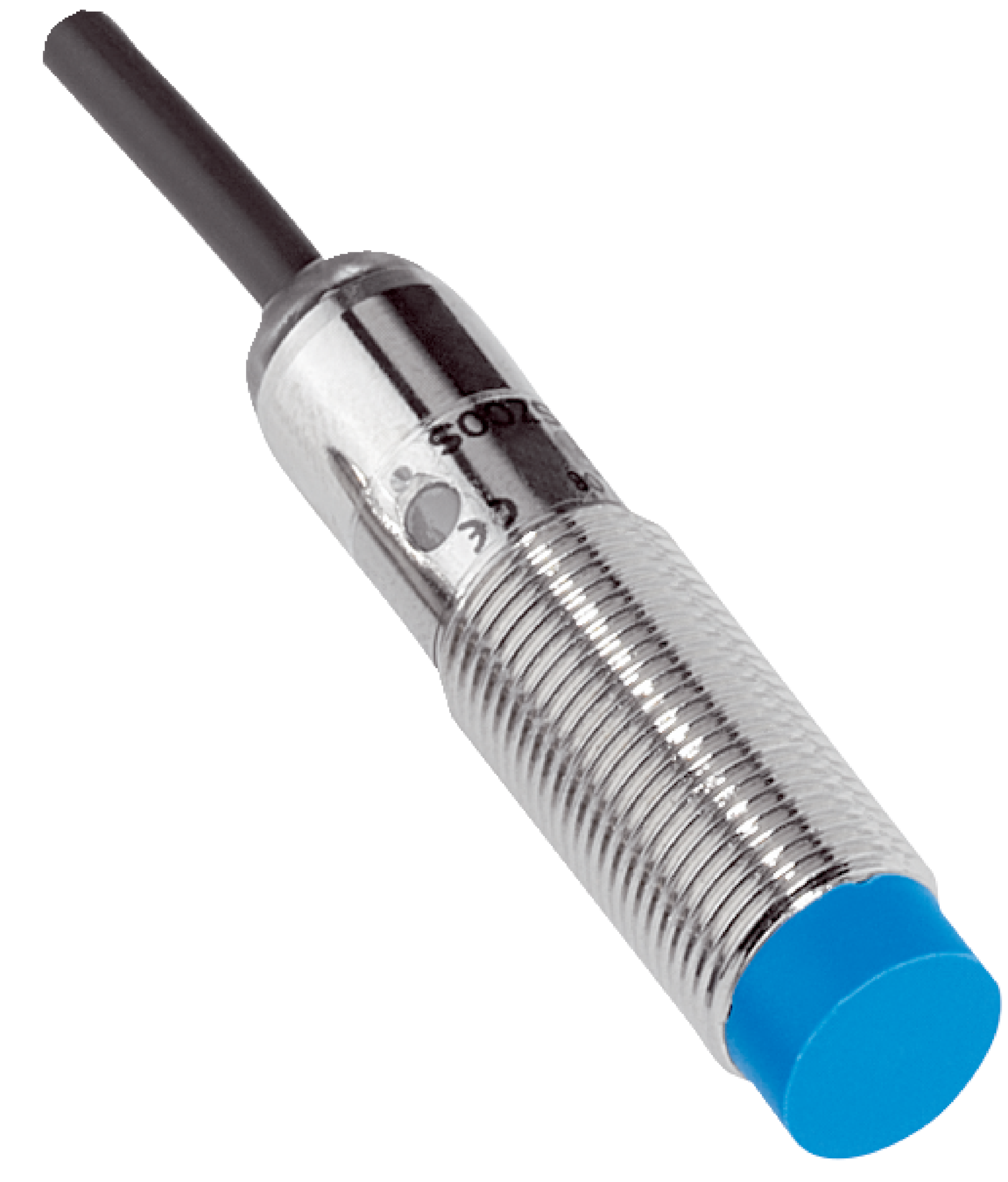

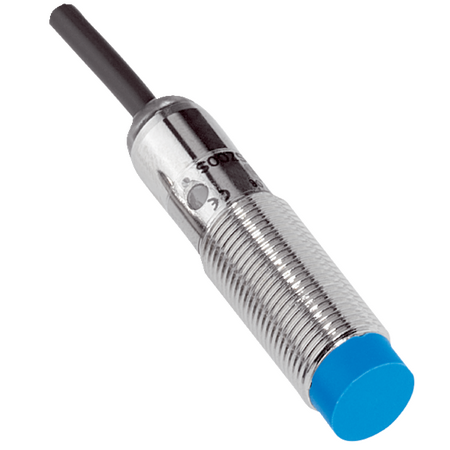

IME12-10NPSZW2K | Inductive proximity sensors
The SICK IME12-10NPSZW2K is a short-body inductive proximity sensor with a 10 mm sensing range, designed for reliable non-flush metal object detection in industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME12-10NPSZW2K | Inductive proximity sensors
Brand: SICK
SKU: 1071230
Alternatively Known As: Inductive Proximity Sensor M12 10mm, IME12 Proximity Switch, SICK Proximity Sensor 10mm, M12 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable: PVC, 3-wire, 2 m length, diameter 3.9 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 24 mm
- Tightening torque max: ≤ 12 Nm
- EMC compliant according to EN 60947-5-2
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Dimensions (H x L x W): 44mm x 44mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Non-flush installation type
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- High switching frequency of 400 Hz
- PNP normally open output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Includes mounting nuts, brass, nickel-plated (2x)
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +75 °C
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable IP67 housing extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME12-10NPSZW2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
