IME18-12NNSZC0K | Inductive proximity sensors

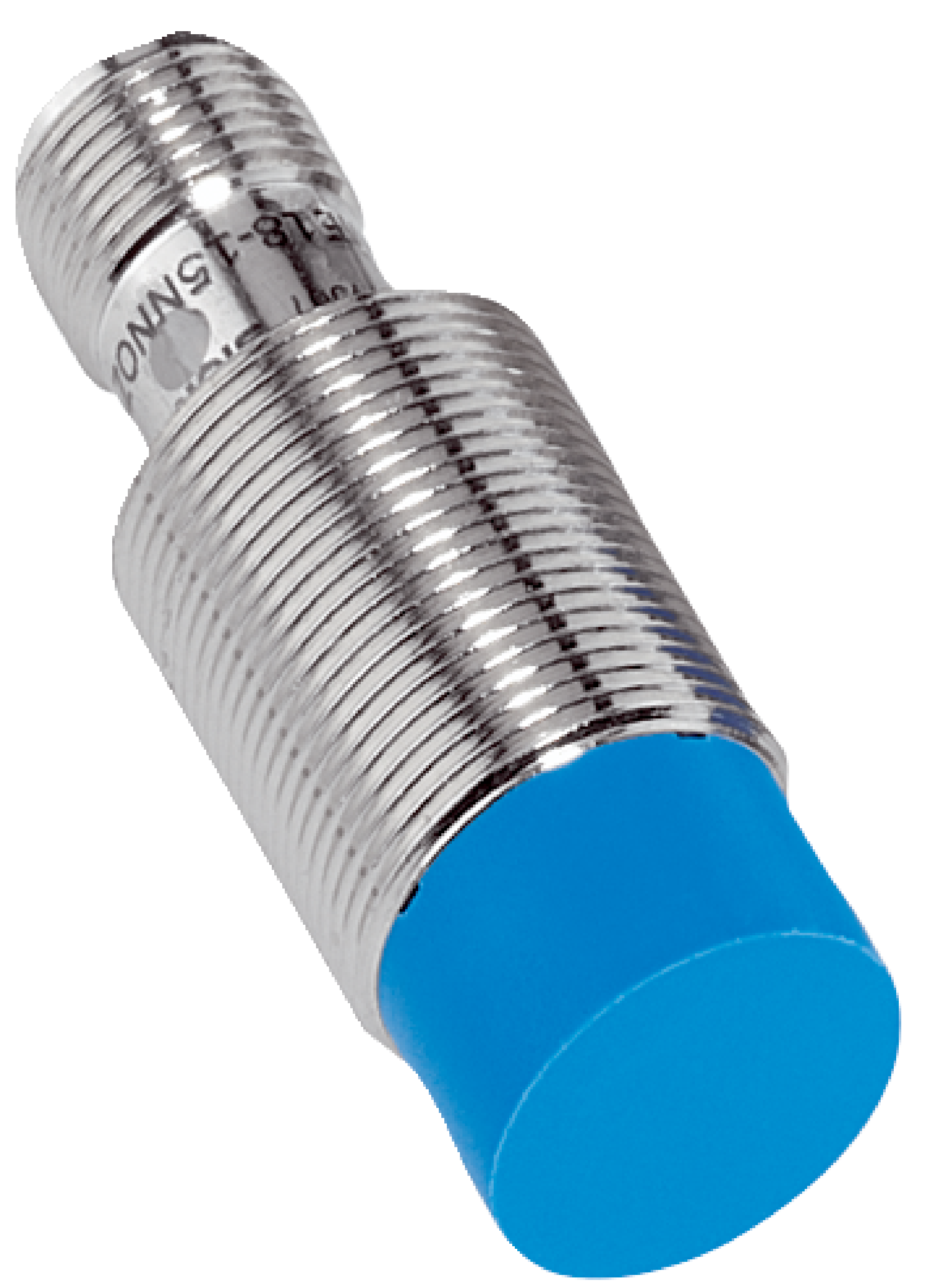

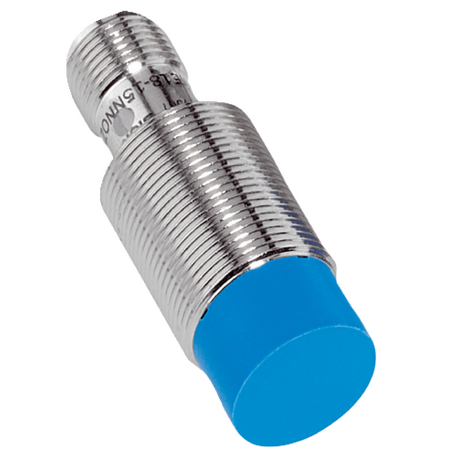

The SICK IME18-12NNSZC0K is a robust inductive proximity sensor with a short-body M18 housing, 12 mm sensing range, and NPN NO output, ideal for industrial automation and metal detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME18-12NNSZC0K | Inductive proximity sensors
Brand: SICK
SKU: 1040989
Alternatively Known As: Inductive Proximity Sensor M18, IME18 Proximity Sensor, NPN NO Proximity Sensor, Short-body Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: NPN normally open (NO)
- Connection type: Male M12, 4-pin connector
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Operating temperature: -25 °C to +75 °C
- Enclosure rating: IP67
- Switching frequency: 1,000 Hz
- Thread size: M18 x 1
- Housing length: 50 mm
- Thread length: 23 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 50mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body M18 x 1 threaded housing
- Non-flush installation type
- Sensing range of 12 mm with safe sensing range of 9.72 mm
- High switching frequency of 1,000 Hz
- NPN normally open (NO) output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Short-circuit and power-up pulse protection included
- Operating temperature range from -25 °C to +75 °C
- Supplied with two brass, nickel-plated mounting nuts
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting torque and electrical connections according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in conveyor systems
- Safety and control systems in machinery
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME18-12NNSZC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
