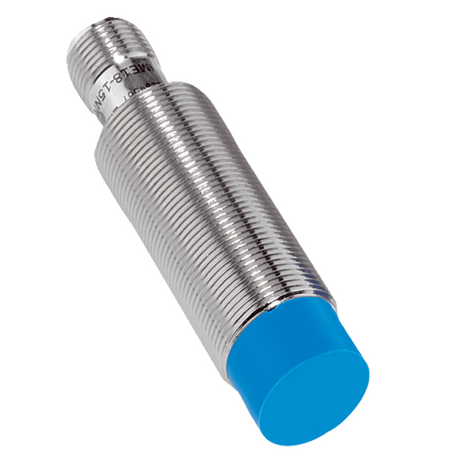

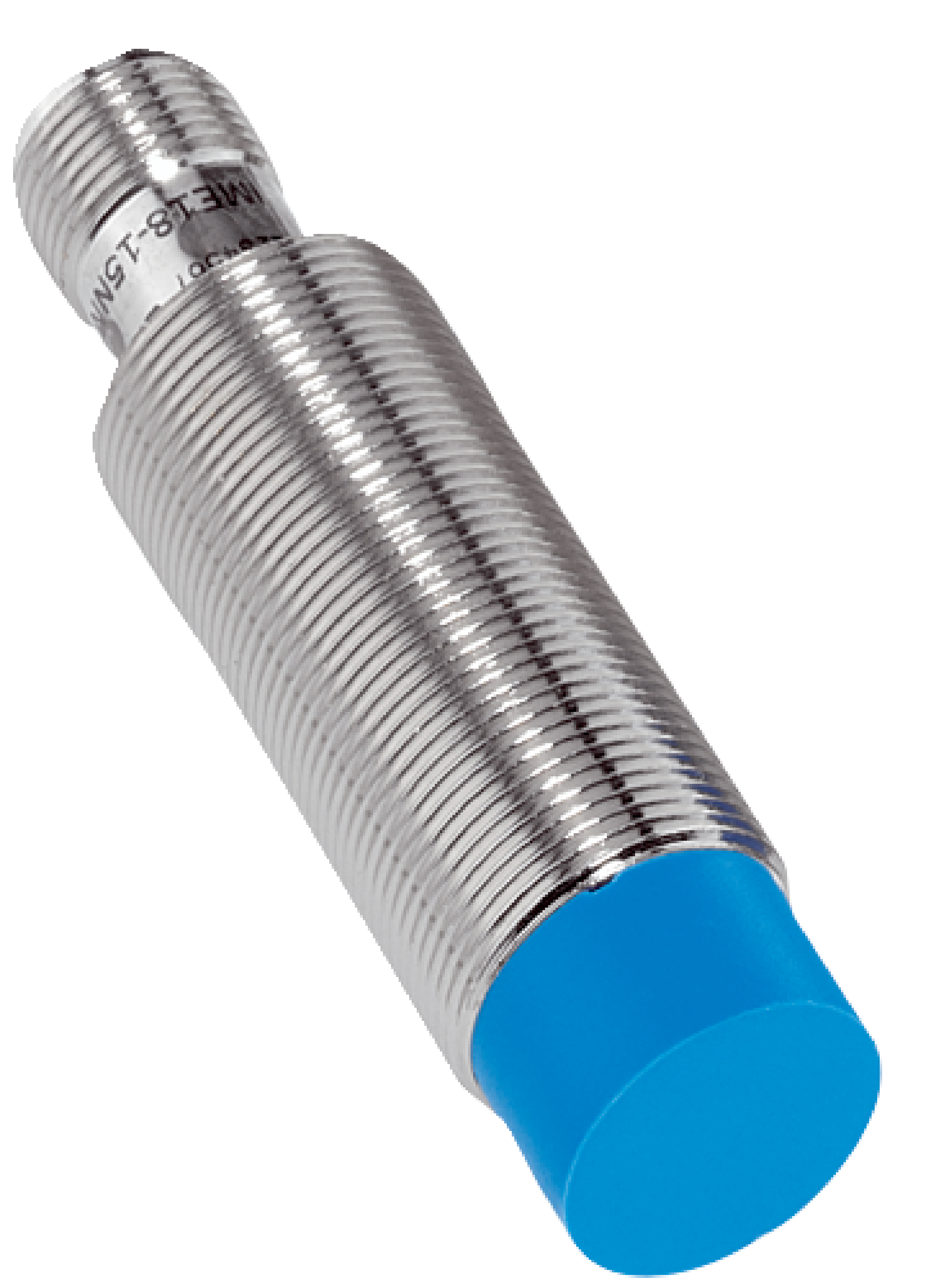

IME18-20NNSZC0S | Inductive proximity sensors
The SICK IME18-20NNSZC0S is an inductive proximity sensor with a 20 mm sensing range, M18 threaded brass housing, and IP67 protection, ideal for industrial automation and metal detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME18-20NNSZC0S | Inductive proximity sensors
Brand: SICK
SKU: 1071279
Alternatively Known As: Inductive Proximity Sensor M18, IME18 Proximity Sensor, SICK Proximity Switch, M18 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 200 Hz
- Switching output: NPN, normally open (NO)
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Short-circuit and power-up pulse protection included
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Time delay before availability: ≤ 100 ms
- Dimensions (H x L x W): 69mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M18 x 1 thread size
- Non-flush installation type with 20 mm sensing range
- Triple sensing range feature for versatile detection
- NPN normally open (NO) switching output with DC 3-wire electrical wiring
- High switching frequency of 200 Hz
- IP67 rated enclosure for dust and water resistance
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Compliant with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME18-20NNSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
