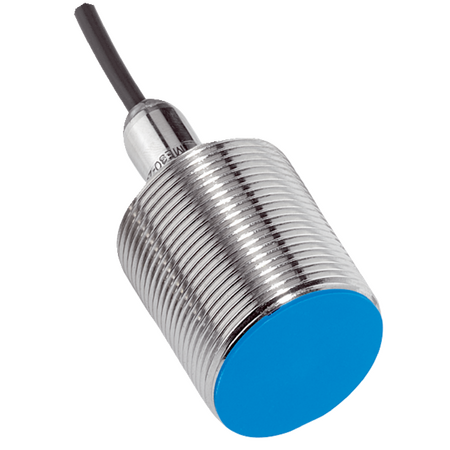

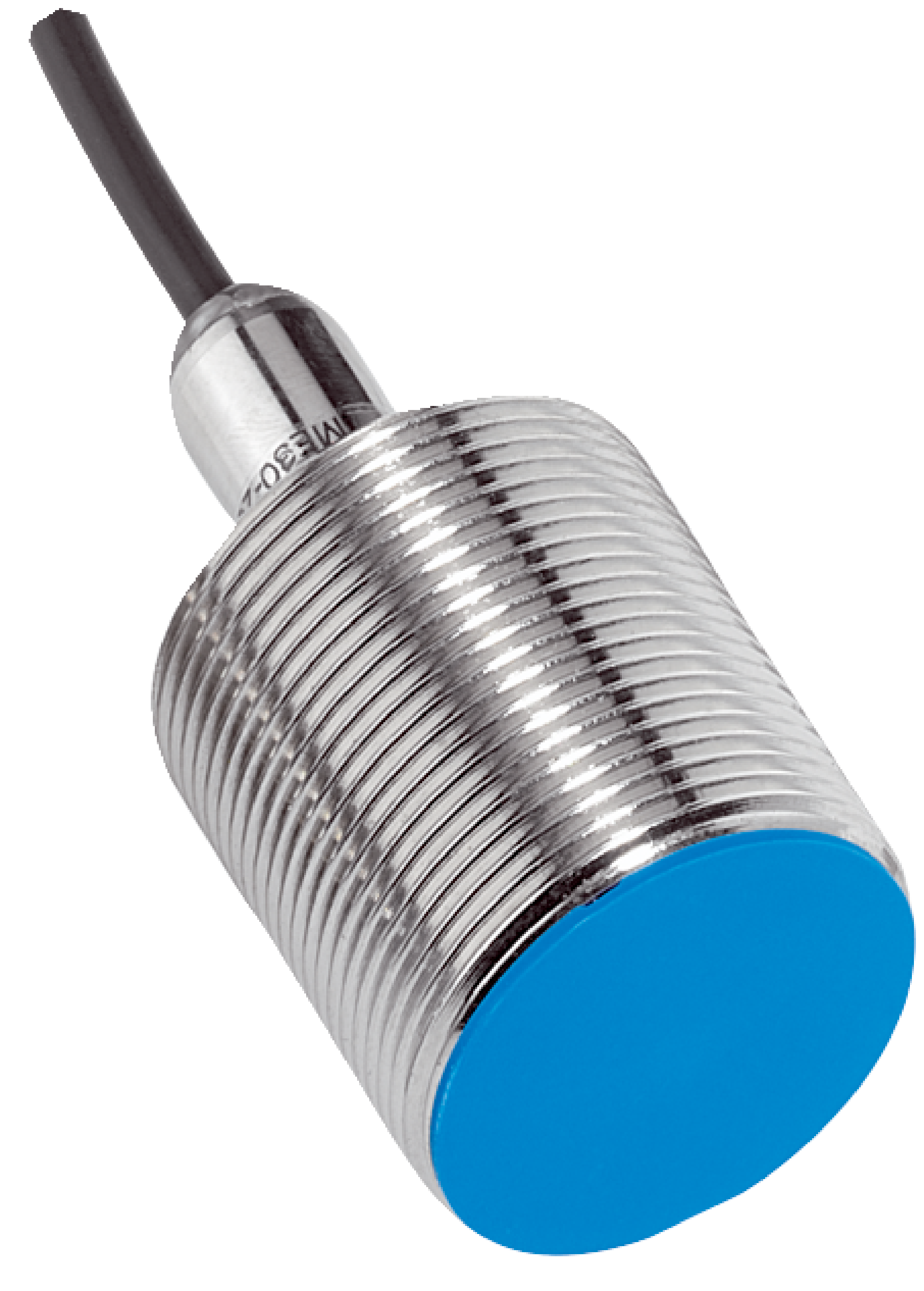

IME30-15BDSZY2K | Inductive proximity sensors
The SICK IME30-15BDSZY2K is a robust inductive proximity sensor featuring a short-body M30 threaded housing, 15 mm sensing range, and IP67 protection, ideal for industrial automation and metal detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME30-15BDSZY2K | Inductive proximity sensors
Brand: SICK
SKU: 1072343
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Proximity Sensor, SICK Proximity Sensor 15mm, Flush Mount Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 4 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 100 mA
- Off-state current: ≤ 0.8 mA
- Minimum load current: ≥ 3 mA
- Cable: PVC, 2-wire, 2 m length, Ø 3.9 mm diameter
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm amplitude
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 35 mm
- Tightening torque max: ≤ 100 Nm
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 51mm x 51mm x 30mm
- Weight: 0.2 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Flush installation type with IP67 enclosure rating
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- High switching frequency of 500 Hz
- 2-wire DC electrical wiring with NO output function
- Oil-resistant 2 m cable connection
- Shock and vibration resistant up to 30 g
- Brass nickel-plated housing with plastic PA 66 sensing face
- Short-circuit protection and low voltage drop
- Wide operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring flush mount sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME30-15BDSZY2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
